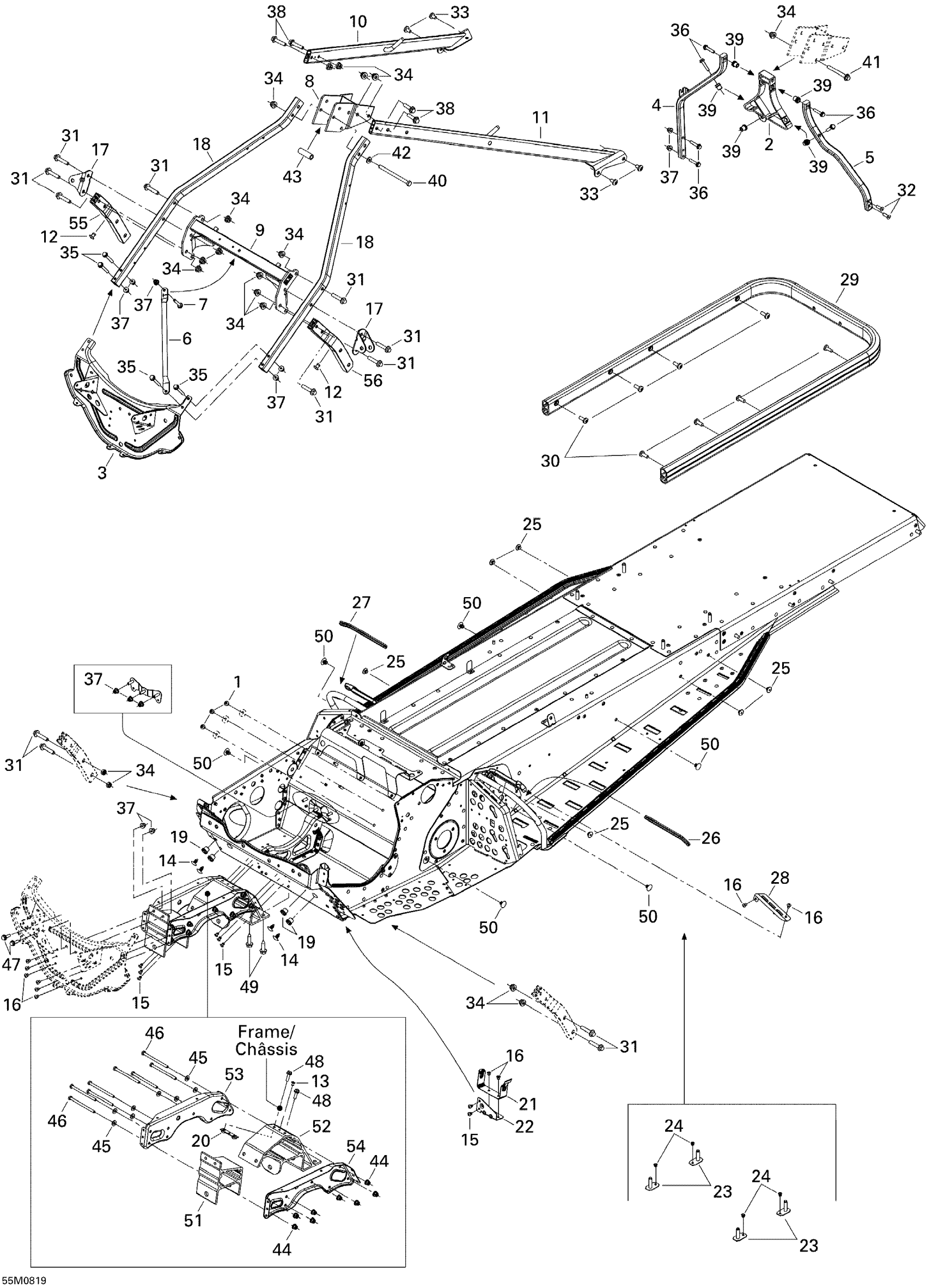

Ski-Doo Skandic Tundra LT 550F, 2008 Frame and Components Diagram

#

Description
Price

1

Hemlock Rivet, 6.5 mm

293150096

$3.07

2

CENTER STIFFENER - Call your local BRP dealership

518324377

Unavailable

3

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

4

RH HANDLE SUPPORT - Call your local BRP dealership

518324397

Unavailable

5

LH HANDLE SUPPORT - Call your local BRP dealership

518324376

Unavailable

6

BRACE - Call your local BRP dealership

518324988

Unavailable

7

Hex. Flange Screw M6 X 35

207663544

$0.85

8

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

9

Upper Cross Member

518325150

Unavailable

10

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

11

LH Member

518325193

Unavailable

12

Hemlock Rivet, 6.5 mm

293150119

$3.88

13

Pop Rivet 3/16"

390402300

$0.73

14

Full Moon Dart 5 mm

293730042

$2.06

15

Avex Rivet

390909100

$0.28

16

Avex Rivet

390909200

$0.28

17

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

18

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

19

Insert

293450166

$3.88

20

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

21

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

22

GUARD BELT SUPPORT - Call your local BRP dealership

518324923

Unavailable

23

Tank Bracket

518322791

Unavailable

24

Pop Rivet 3/16"

390402400

$0.28

25

Pop Rivet 3/16"

390406500

$0.81

26

Was 271000110 Protection Trim

219704353

$14.58

27

Was 271000110 Protection Trim

219704353

$14.58

28

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

29

REAR BUMPER - Call your local BRP dealership

518325509

Unavailable

30

Hex. Screw M8 X 20

236282084

$1.43

31

Hex. Flange Screw M8 X 40

207684044

$1.43

32

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

33

Pan Head Torx Screw M8 X 12

250000887

$1.79

34

Hex. Flange Elastic Nut M8

233281414

$1.31

35

Hex. Flange Screw M6 X 45

207664544

$1.22

36

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

38

Hex. Flange Screw M8 X 35

207683544

$1.60

39

Insert

293450275

$11.36

40

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

41

Hex. Flange Screw M8 X 70

207687044

$7.01

42

Washer

503189157

$3.10

43

Housing Bushing

506150500

$7.27

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

45

Flat Washer

250200039

$0.70

46

Hex. Screw M6 X 90

207069044

$4.61

47

Hex. Flange Screw M6 X 20

207662044

$1.91

48

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

49

Cone Screw, M8 X 30

250000257

$1.67

50

Panel Fastener

518321954

$5.85

51

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

52

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

53

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

54

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

55

RH VERTICAL TUBE - Call your local BRP dealership

518324214

Unavailable

56

LH Vertical Tube

518324215

Unavailable
