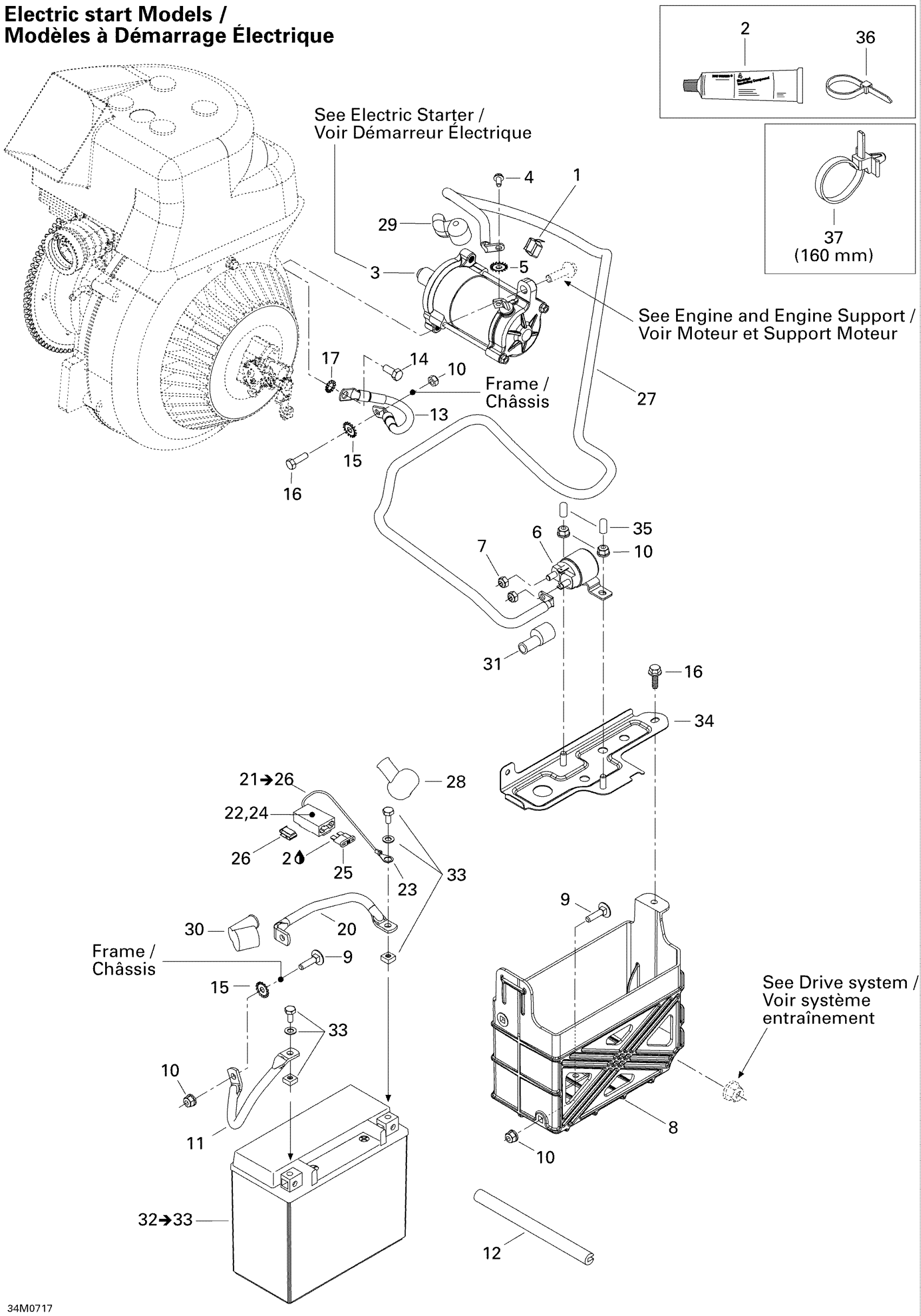

Ski-Doo Skandic Tundra 300F, 2007 10- Battery And Starter Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

3

STARTER - Call your local BRP dealership | Includes 1 to 6

515176537

Unavailable

4

Hex. Flange Screw M5 X 10

207551044

$4.12

5

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

6

Starter Relay

515176011

$62.49

7

Elastic Stop Nut M6

232561414

$0.55

8

BATTERY SUPPORT - Call your local BRP dealership | Includes 11 to 12

515176423

Unavailable

9

Carriage Bolt M6 X 25

207762544

$1.69

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Ground Wire

515175749

$20.99

12

Trim 1000Mm Long

219704354

$15.99

13

Ground Wire

515176318

Unavailable

14

Hex. Flange Screw M8 X 20

207682044

$1.15

15

Lock Washer Serrated M6

250200041

$1.15

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Serrated Lock Washer 8 mm

234481608

$1.15

20

Battery Wire

515175904

$19.99

21

Battery Fuse Wire | Includes 21 to 22

515175489

$16.86

22

Female Terminal

409004200

$4.55

23

Open Barrel

278000992

$2.21

24

Fuse Holder

409004000

$8.09

25

Fuse, 30 Amperes

410917200

$3.28

26

CLIP - Call your local BRP dealership

409014200

Unavailable

27

Battery Wire

515176298

Unavailable

28

Protection Cap

570151000

$21.99

29

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

30

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

31

Protector Cap | XT

515175919

$17.99

32

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

33

Battery Bolt Kit

250000282

$7.29

34

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

35

Cap

515176141

$3.09

36

Tie-Rap 180 mm

414115200

$0.11

36

Tie Wrap 368 mm

293750008

$1.04

37

Tie-Rap 173 mm

293750009

$1.04
