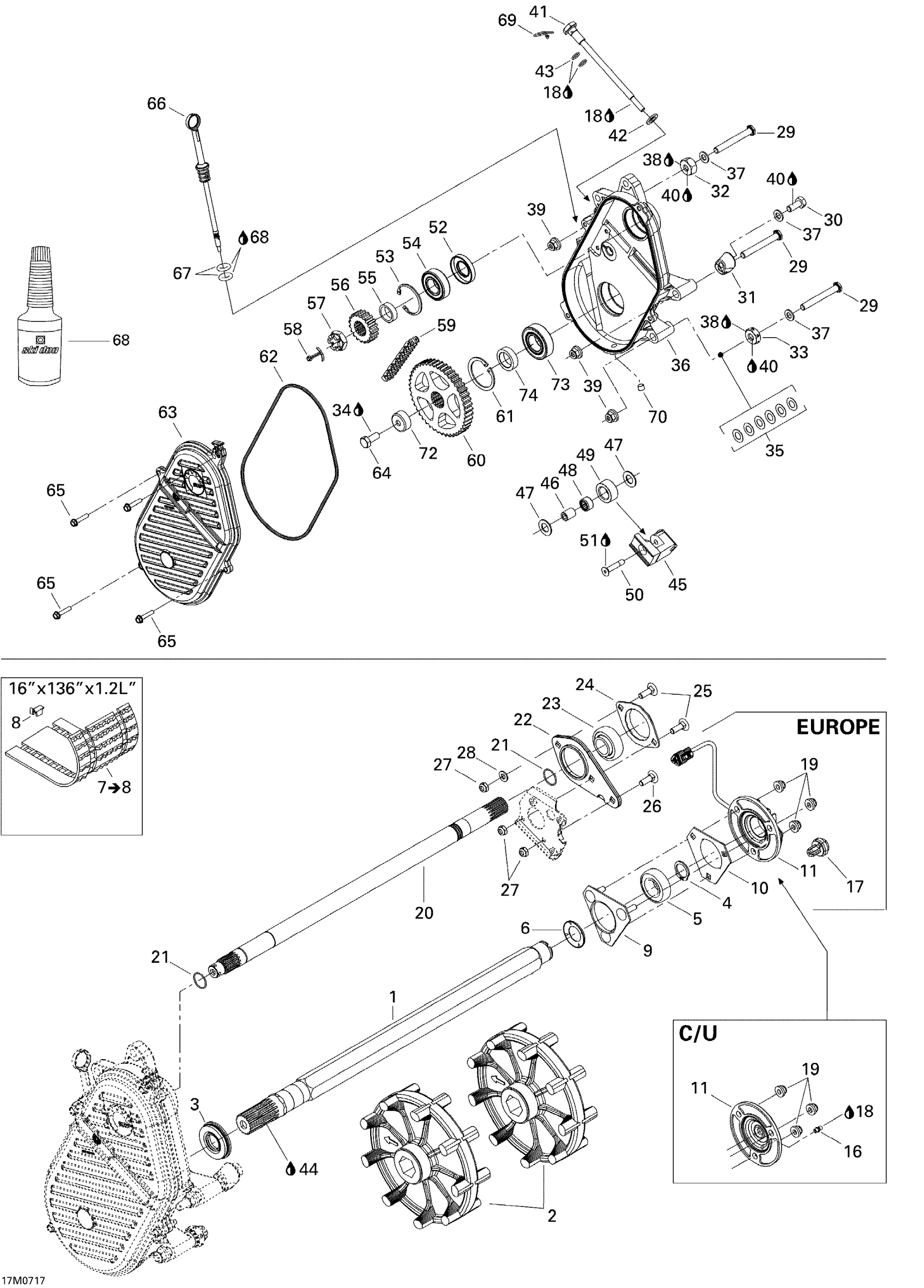

Ski-Doo Skandic Tundra 300F, 2007 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

$899.99

8

Track Guide | Track Width 16''

415129528

$3.29

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

FLANGE - Call your local BRP dealership

501025000

Unavailable

11

Rotation Sensor

504152345

$71.99

11

SPEEDO FLANGE - Call your local BRP dealership | Except Europe

504152463

Unavailable

16

Grease Fitting

408200700

$3.49

17

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

COUNTER SHAFT - Call your local BRP dealership

504152292

Unavailable

21

Circlip

371910000

$1.19

22

SPACER - Call your local BRP dealership

504151968

Unavailable

23

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

24

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

25

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

26

Carriage Bolt, M8 X 20

207782044

$1.90

27

Hex. Elastic Stop Nut M8

232581414

$0.56

28

Flat Washer 8 mm

234081410

$0.83

29

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

30

Hex. Screw M10 X 25

207102544

$1.37

31

Spacer

504152252

Unavailable

32

Spacer

504083800

Unavailable

33

SPACER - Call your local BRP dealership

504152237

Unavailable

34

Loctite 271, 10 ml

293800005

$26.99

35

WASHER - Call your local BRP dealership

504073700

Unavailable

36

CHAINCASE - Call your local BRP dealership

504152481

Unavailable

37

Washer

503175800

$3.28

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

39

Hex. Flange Elastic Nut M10

233201414

$1.58

40

Loctite 243, 10 ml

293800060

$21.49

41

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

42

Flat Washer 10 mm

234001410

$1.26

43

O-Ring

414484400

$7.51

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

45

Chain Tensioner

504151951

Unavailable

46

SPACER - Call your local BRP dealership

504080200

Unavailable

47

WASHER - Call your local BRP dealership

504080300

Unavailable

48

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

49

ROLLER - Call your local BRP dealership

414531300

Unavailable

50

SCREW - Call your local BRP dealership

732601144

Unavailable

51

Loctite 271, 10 ml

293800005

$26.99

52

SEAL - Call your local BRP dealership

504151927

Unavailable

53

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

54

Ball Bearing

293350115

$12.11

55

SHIM - Call your local BRP dealership

504147200

Unavailable

56

15 Tooth Sprocket

504152603

Unavailable

57

HEX. CASTLE NUT, M20 X1.5 - Call your local BRP dealership

250100056

Unavailable

56

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

59

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

60

45 Tooth Sprocket | Europe

504152238

Unavailable

61

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

62

O-Ring

415046400

$24.99

63

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

64

Hex. Screw M10 X 25

207102544

$1.37

65

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

66

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

67

O-RING - Call your local BRP dealership

414969400

Unavailable

68

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

69

Hair Pin

414575600

$1.89

70

Plug 1/8”-27

504151921

$4.19

72

CAP - Call your local BRP dealership

504152460

Unavailable

73

Ball Bearing

504152005

$46.49

74

SHIM - Call your local BRP dealership

504152649

Unavailable
