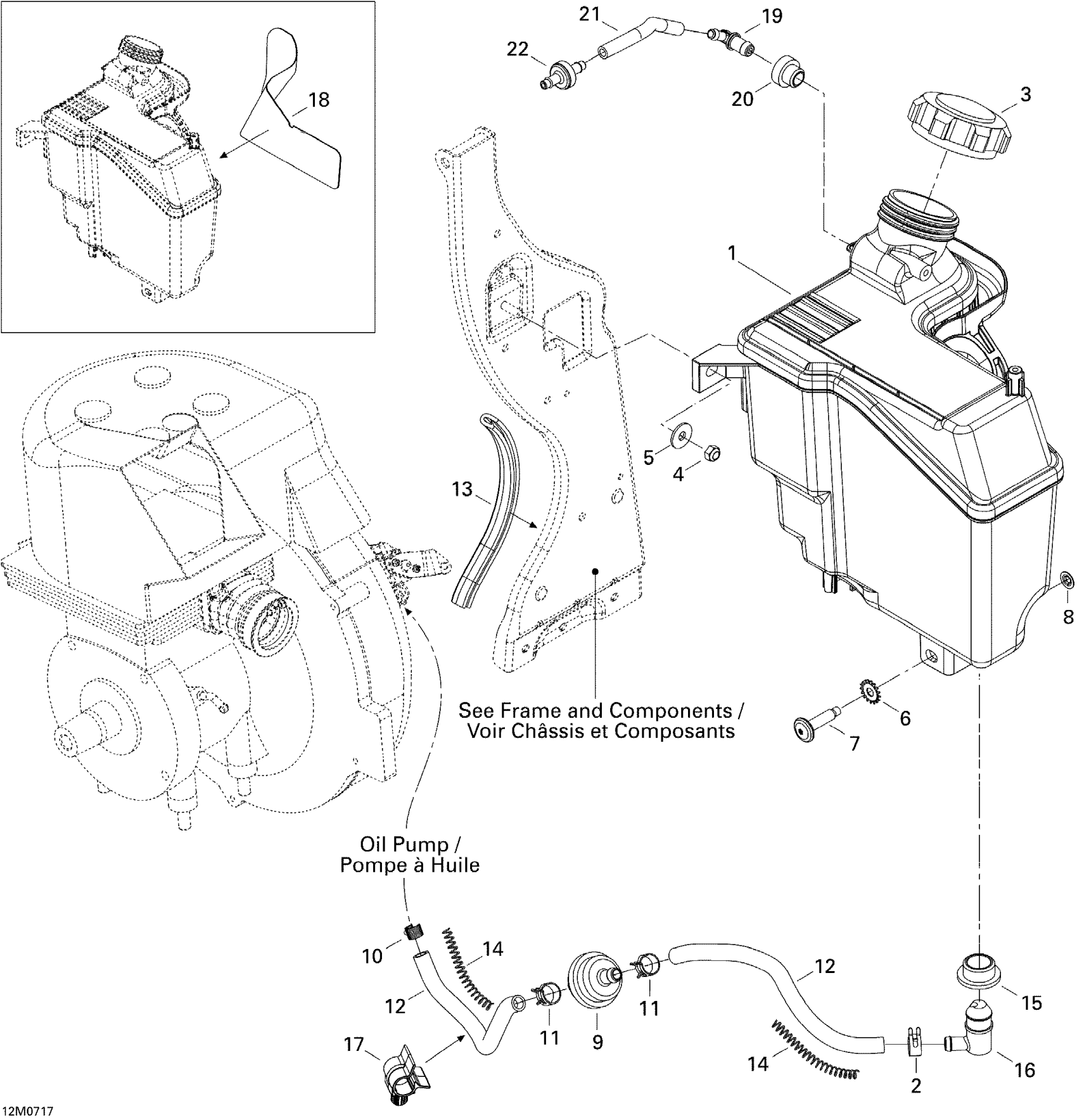

Ski-Doo Skandic Tundra 300F, 2007 02- Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000073

Unavailable

2

Oetiker Clamp

293650042

$3.09

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Flat Washer

250200082

$0.42

6

Lock Washer Serrated M6

250200041

$1.15

7

Torx Screw M6 X 25 | XT Models

250000728

$4.44

8

Push Nut

732610072

$2.19

9

Filter

414536500

$4.02

10

Spring Clamp

414420700

$0.72

11

Spring Clamp

414415200

$0.88

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

13

Was 271000110 Protection Trim

219704353

$15.99

14

SPRING - Call your local BRP dealership

519000125

Unavailable

15

Insulating Ring

570023000

$5.61

16

Elbow Fitting 90°

519000124

Unavailable

17

Hose Retainer

275500528

Unavailable

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

19

Male Connector

414580700

$4.12

20

Grommet

513032908

$10.49

21

Polyurethane Hose 10000Mm Long

219704410

$56.99

22

Check Valve

275500398

$10.99
