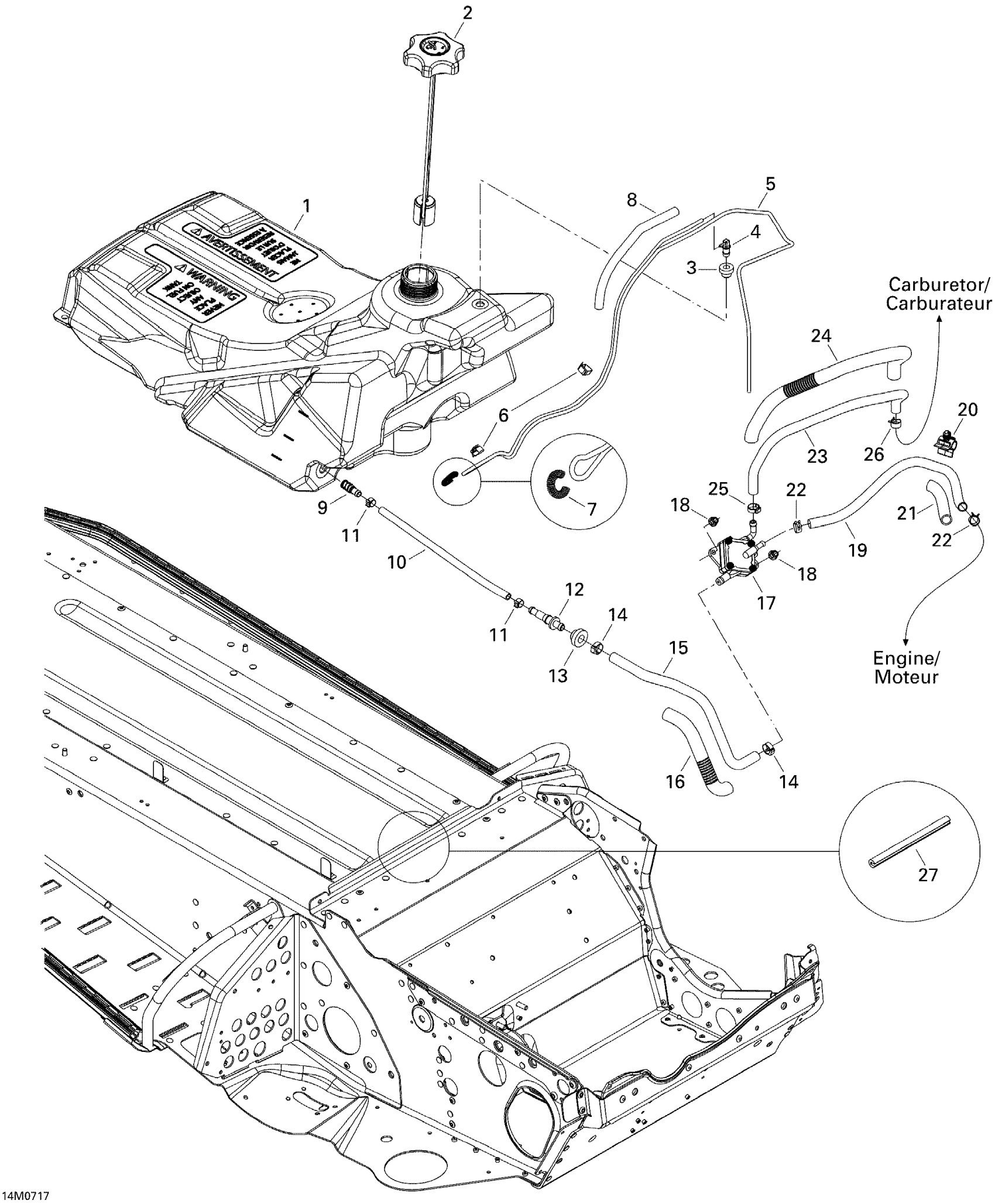

Ski-Doo Skandic Tundra 300F, 2007 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033179

Unavailable

2

Fuel Tank Cap

513033361

$54.45

3

Grommet

513032908

$8.48

4

Male Connector

414814100

$2.12

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

6

Clip

414227300

$1.40

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Tubing 10 MM 1000MM Long

219704407

$2.20

9

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

10

Hose

415005700

$5.47

11

Norma Spring Clamp

513033010

$8.42

12

Male Connector

414872700

$1.81

13

Grommet | Europe

707800347

$7.58

14

Crimp Clamp

293650053

$2.42

15

Formed Hose

513033374

$28.33

16

Tubing 16 Mm 1000Mm Long

219704408

$6.23

17

FUEL PUMP - Call your local BRP dealership

403901815

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Hose

219704549

$46.24

20

Hose Retainer

275500528

Unavailable

21

Was 409901800 Tubing (13 mm)

219704400

$9.40

22

Spring Clamp

414415200

$0.81

23

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

24

Tubing 16 Mm 1000Mm Long

219704408

$6.23

25

Crimp Clamp, 15.3-706R

293650047

$2.64

26

Universal Spring Clamp

513033029

$4.96

27

TRIM - Call your local BRP dealership

509000263

Unavailable
