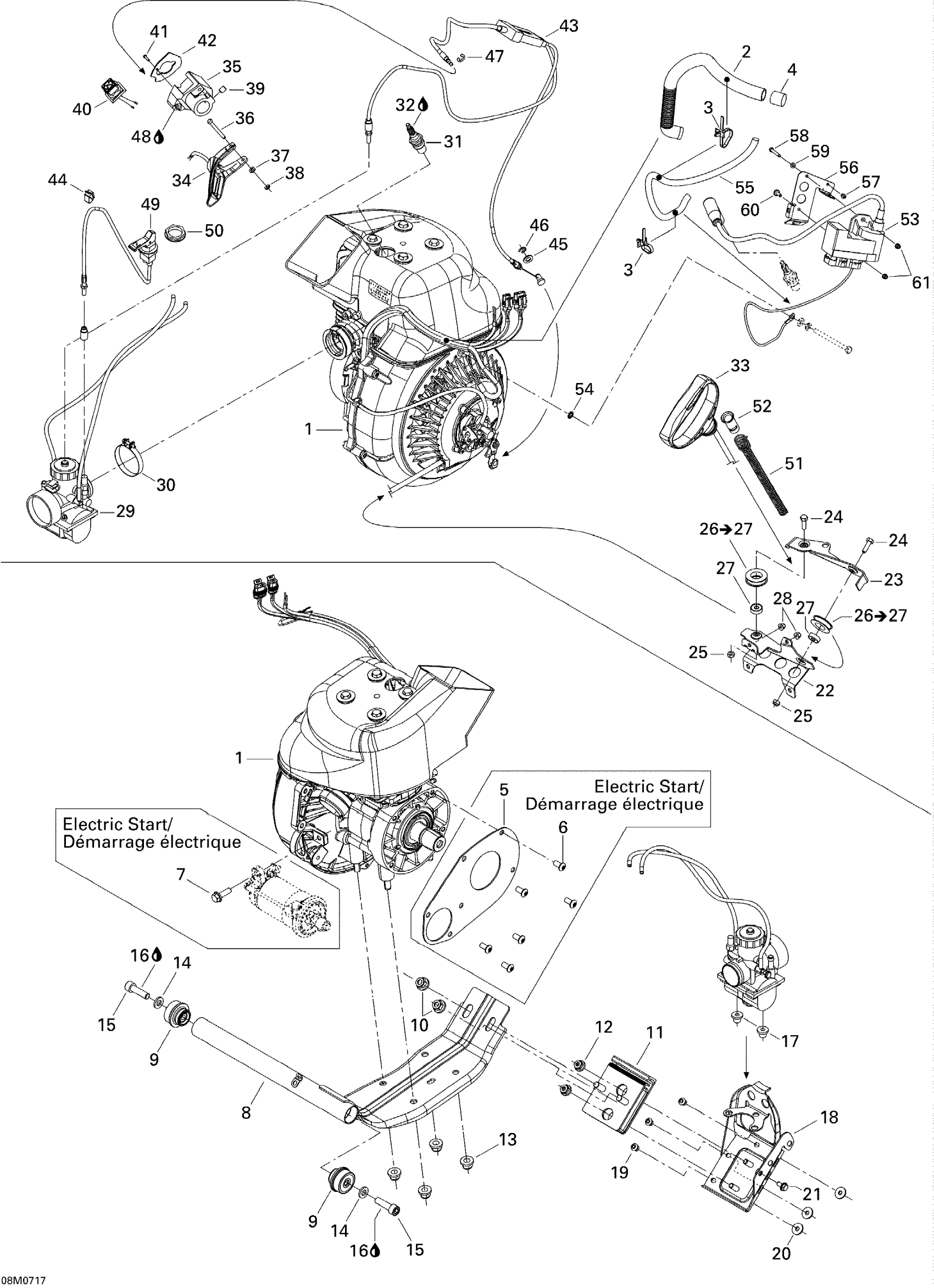

Ski-Doo Skandic Tundra 300F, 2007 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 277

400206006

Unavailable

2

Tubing 16 Mm 1000Mm Long

219704408

$7.49

3

Tie-Rap 173 mm

293750009

$1.04

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Starter Support

512059922

Unavailable

6

Torx Screw M8 X 16

250000751

$6.11

7

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

8

ENGINE SUPPORT - Call your local BRP dealership

512059901

Unavailable

9

Rubber Mount

512059691

$47.99

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Rubber Mount

512059958

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Hex. Flange Elastic Nut M10

233201414

$1.58

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Socket Screw M10 X 35

205003544

$1.69

16

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

17

Grommet

293720029

$1.59

18

PLATE - Call your local BRP dealership

512059918

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

22

PULLEY SUPPORT - Call your local BRP dealership

512060010

Unavailable

23

REINFORCEMENT, GUARD - Call your local BRP dealership

512060032

Unavailable

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

25

Elastic Stop Nut M6

232561414

$0.55

26

PULLEY ASS'Y - Call your local BRP dealership | Includes 25 to 26

512060184

Unavailable

27

BALL BEARING - Call your local BRP dealership

512060151

Unavailable

28

Hex. Flange Elastic Nut M5

233251414

$1.04

29

CARBURETOR VM 34-618 - Call your local BRP dealership

403138768

Unavailable

30

Gemi Clamp | Not Shown

512059834

$11.60

31

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Starter Grip

572084400

$14.83

34

Handle Ass'y

512060214

$124.99

35

Throttle Housing

512060603

$12.49

36

Lever Pin

414438700

$11.64

37

Flat Washer M5, Stainless

234051600

$0.77

38

Circlip

293370050

$0.46

39

Socket Set Screw M8 X 10

414440800

$4.12

40

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

41

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

42

Plate

512060390

$10.33

43

THROTTLE CABLE - Call your local BRP dealership

512059907

Unavailable

44

Clip

414227300

$1.67

45

Flat Washer 8 mm, Nylon

234081100

$1.39

46

Circlip

414753500

$0.71

47

Circlip

414274500

$0.90

48

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

49

CHOKE CABLE - Call your local BRP dealership

512060005

Unavailable

50

Plastic Nut

512060671

$1.01

51

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

52

TUBE - Call your local BRP dealership

512059536

Unavailable

53

Calibrated Module | Includes 52 to 55

512060006

$408.49

54

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

55

Tubing 6 Mm 3000Mm Long

219704425

$13.75

56

MODULE SUPPORT - Call your local BRP dealership

512060160

Unavailable

57

Pop Rivet 3/16"

390402200

$0.35

58

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

59

Flat Washer M5

234051410

$0.53

60

Hex.Flange Screw M5 X 20

207652044

$1.90

61

Hex. Flange Elastic Nut M5

233251414

$1.04
