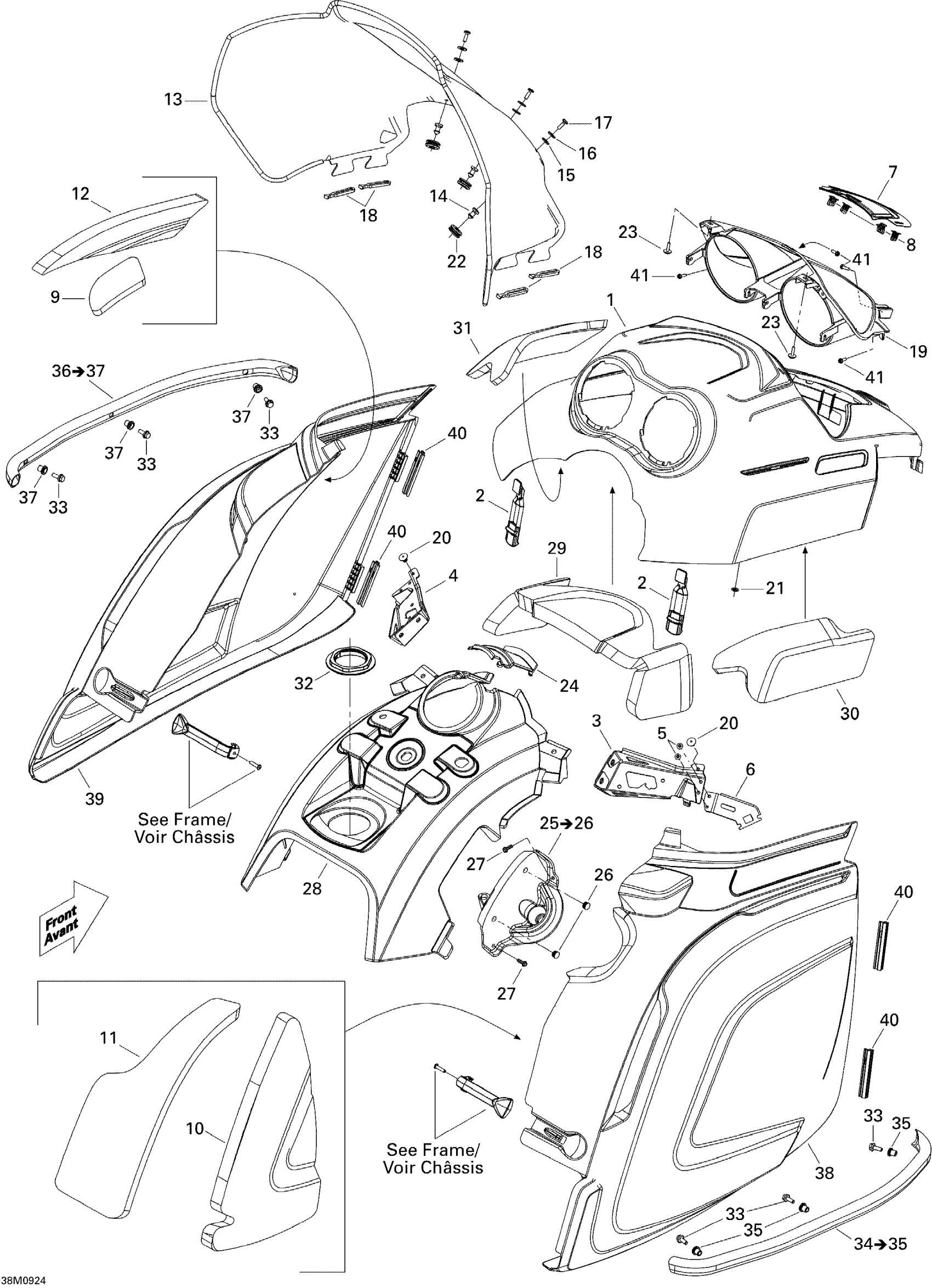

Ski-Doo Skandic Tundra, 2009 09- Hood Diagram

#

Description
Price

1

Hood

517303329

Unavailable

2

Latch

517303518

$12.99

3

RH Bracket

517303662

Unavailable

4

LH Bracket

517303663

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

BRACKET - Call your local BRP dealership

517303517

Unavailable

7

Center Hood Grille

517303331

Unavailable

8

Edge Clip

517302785

$0.88

9

FOAM, AIR OUTLET - Call your local BRP dealership

517303520

Unavailable

10

RH PANEL FOAM, FRONT - Call your local BRP dealership

517303456

Unavailable

11

RH PANEL FOAM, REAR - Call your local BRP dealership

517303457

Unavailable

12

LH PANEL FOAM, FRONT - Call your local BRP dealership

517303485

Unavailable

13

Windshield, High

517303440

$143.49

14

Knob

517303439

$4.55

15

Rubber Washer 5 mm

250200024

$2.19

16

Washer M5

250200025

$0.74

17

Torx Screw K50 X 16

250000720

$1.69

18

Windshield Latch

570023800

$4.49

19

Moulding

517303692

Unavailable

20

Pop Rivet 3/16"

293150103

$0.55

21

Push Nut

732610072

$2.19

22

Grommet

517302841

$7.89

23

Screw M4 X 16

250000725

$3.49

24

CONSOLE CAP - Call your local BRP dealership

517303458

Unavailable

25

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

26

Black, Cap

275500241

$3.49

27

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

28

CENTER CONSOLE - Call your local BRP dealership

517303349

Unavailable

29

Hood Foam

517303664

Unavailable

30

RH Hood Foam

517303486

Unavailable

31

LH HOOD FOAM - Call your local BRP dealership

517303487

Unavailable

32

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

33

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

34

RH SIDE BUMPER - Call your local BRP dealership | Includes 34 to 35

517303577

Unavailable

35

Insert

293450275

$12.99

36

LH Side Bumper | Includes 36 to 37

517303578

Unavailable

37

Insert

293450275

$12.99

38

PANEL_BODY RH B-269 - Call your local BRP dealership

517303643

Unavailable

39

LH PANEL - Call your local BRP dealership

517303646

Unavailable

40

Hinge Lock

517302823

$13.99

41

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90
