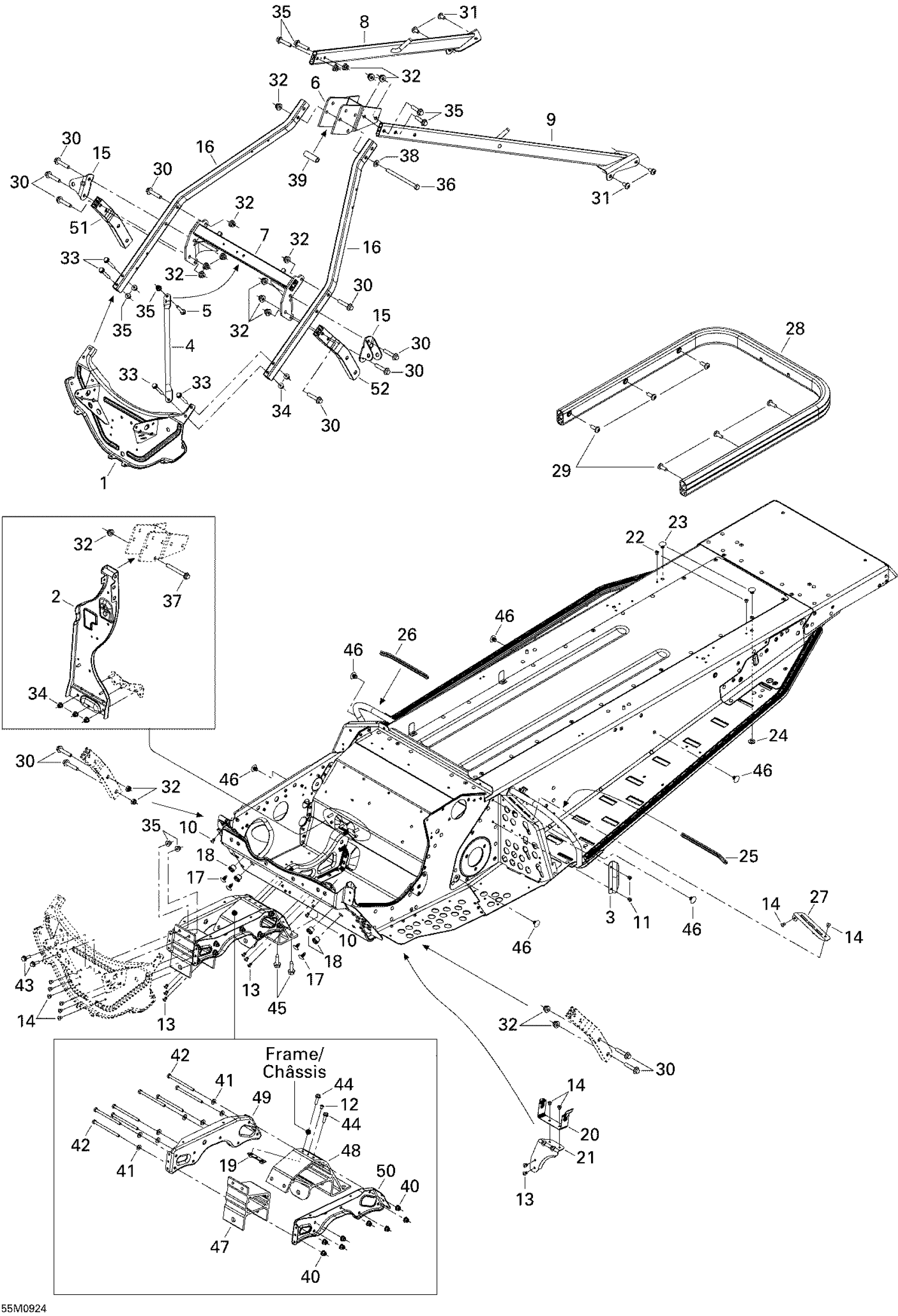

Ski-Doo Skandic Tundra, 2009 09- Frame and Components Diagram

#

Description
Price

1

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

2

UPPER COLUMN SUPPORT - Call your local BRP dealership

518325212

Unavailable

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

4

BRACE - Call your local BRP dealership

518324988

Unavailable

5

Hex. Flange Screw M6 X 35

207663544

$0.90

6

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

7

Upper Cross Member

518325150

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

9

LH Member

518325193

Unavailable

10

Hemlock Rivet, 6.5 mm

293150119

$4.29

11

Pop Rivet 3/16"

390402200

$0.35

12

Pop Rivet 3/16"

390402300

$0.75

13

Avex Rivet

390909100

$0.30

14

Avex Rivet

390909200

$0.30

15

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

16

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

17

Black, Dart

414644300

$0.98

18

Insert

293450166

$4.29

19

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

21

BELT GUARD SUPPORT - Call your local BRP dealership

518324439

Unavailable

22

Pop Rivet 3/16"

390402400

$0.35

23

Pop Rivet 3/16"

390406500

$0.88

24

Washer

517124300

$0.19

25

Was 271000110 Protection Trim

219704353

$15.99

26

Was 271000110 Protection Trim

219704353

$15.99

27

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

28

Rear Bumper

518325215

Unavailable

29

Hex. Screw M8 X 20

236282084

$1.48

30

Hex. Flange Screw M8 X 40

207684044

$1.48

31

Pan Head Torx Screw M8 X 12

250000887

$1.90

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Hex. Flange Screw M6 X 45

207664544

$1.46

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Hex. Flange Screw M8 X 35

207683544

$1.69

36

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

37

Hex. Flange Screw M8 X 70

207687044

$7.41

38

Washer

503189157

$3.28

39

Housing Bushing

506150500

$7.99

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Flat Washer

250200039

$0.74

42

Hex. Screw M6 X 90

207069044

$4.87

43

Hex. Flange Screw M6 X 20

207662044

$2.00

44

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

45

Cone Screw, M8 X 30

250000257

$1.89

46

Panel Fastener

518321954

$7.69

47

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

48

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

49

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

50

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

51

RH VERTICAL TUBE - Call your local BRP dealership

518324214

Unavailable

52

LH Vertical Tube

518324215

Unavailable
