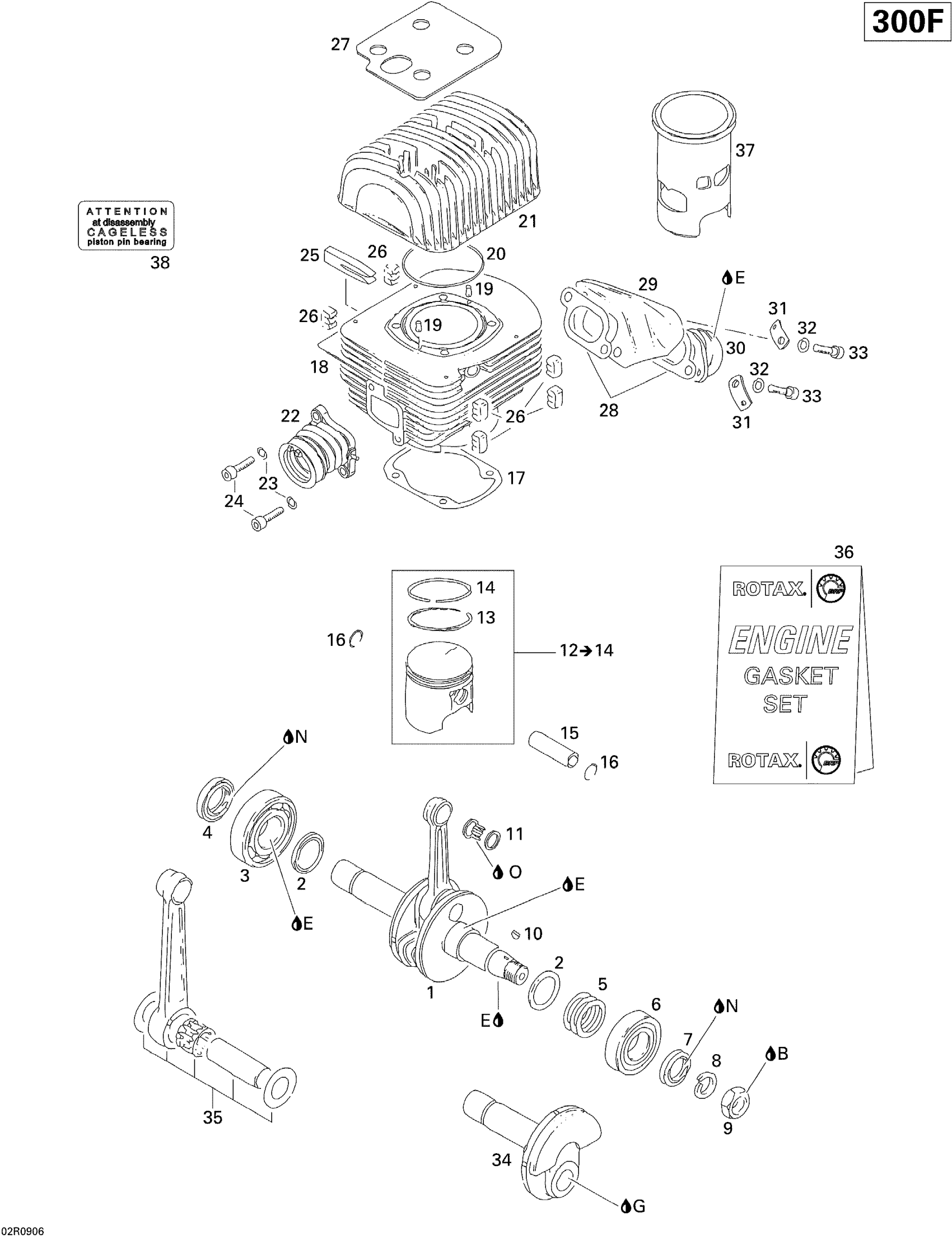

Ski-Doo Skandic Tundra, 2009 Crankshaft, Piston And Cylinder Diagram

#

Description
Price

1

Crankshaft

420995307

Unavailable

2

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

3

BALL BEARING - Call your local BRP dealership

420932571

Unavailable

4

Oil Seal

420850050

$17.13

5

SHIM 0.3 - Call your local BRP dealership

420944582

Unavailable

5

SHIM 0.1 - Call your local BRP dealership

420944583

Unavailable

5

Shim 0.5

420944584

$3.88

5

SHIM 0.2 - Call your local BRP dealership

420944586

Unavailable

6

Ball Bearing

420932581

Unavailable

7

Oil Seal

420230425

$14.90

8

Lock Washer, 22 mm

420945759

$1.78

9

Hex. Nut, M22 X 1.5

420842239

$16.39

10

Woodruff Key

420246055

$2.28

11

Needle Bearing

420832320

$28.33

12

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.37

12

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.37

12

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$157.43

13

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

13

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

13

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

14

SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership

420815200

Unavailable

14

SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership

420815201

Unavailable

14

SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership

420815202

Unavailable

15

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

16

Piston Circlip

420945735

$4.51

17

Gasket 0.4 mm

420831858

$11.18

18

CYLINDER WITH SLEEVE - Call your local BRP dealership

420623180

Unavailable

19

Drive Pin 5 X 10

420929650

$1.54

20

O-Ring This part replaces 420850540.

293300026

$3.06

21

CYLINDER HEAD - Call your local BRP dealership

420823786

Unavailable

22

Tubulure D'Adm.*Socket-Intake This part replaces 420667270.

420667274

$78.33

23

Washer-Lock Din.128

420945832

$1.06

24

Socket Head Screw M8 X 25

205082544

$1.06

25

RUBBER FIN - Call your local BRP dealership

420860100

Unavailable

26

NOISE DAMPER - Call your local BRP dealership

420860097

Unavailable

27

SILENT BLOCK - Call your local BRP dealership

420960130

Unavailable

28

Gasket 1 mm

420831847

$11.18

29

AIR DEFLECTOR - Call your local BRP dealership

420975720

Unavailable

30

Exhaust Socket

420978836

Unavailable

31

SPRING BRACKET - Call your local BRP dealership

420953170

Unavailable

32

Lock Washer

420845311

$1.79

33

Socket Head Screw M8 X 30

205083044

$1.06

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$65.99

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Cageless Label

420897280

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

E

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

G

Sealant Loctite 648

219703000

$41.01

N

Dow Corning 111, 150 g

413707000

$59.99

O

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33
