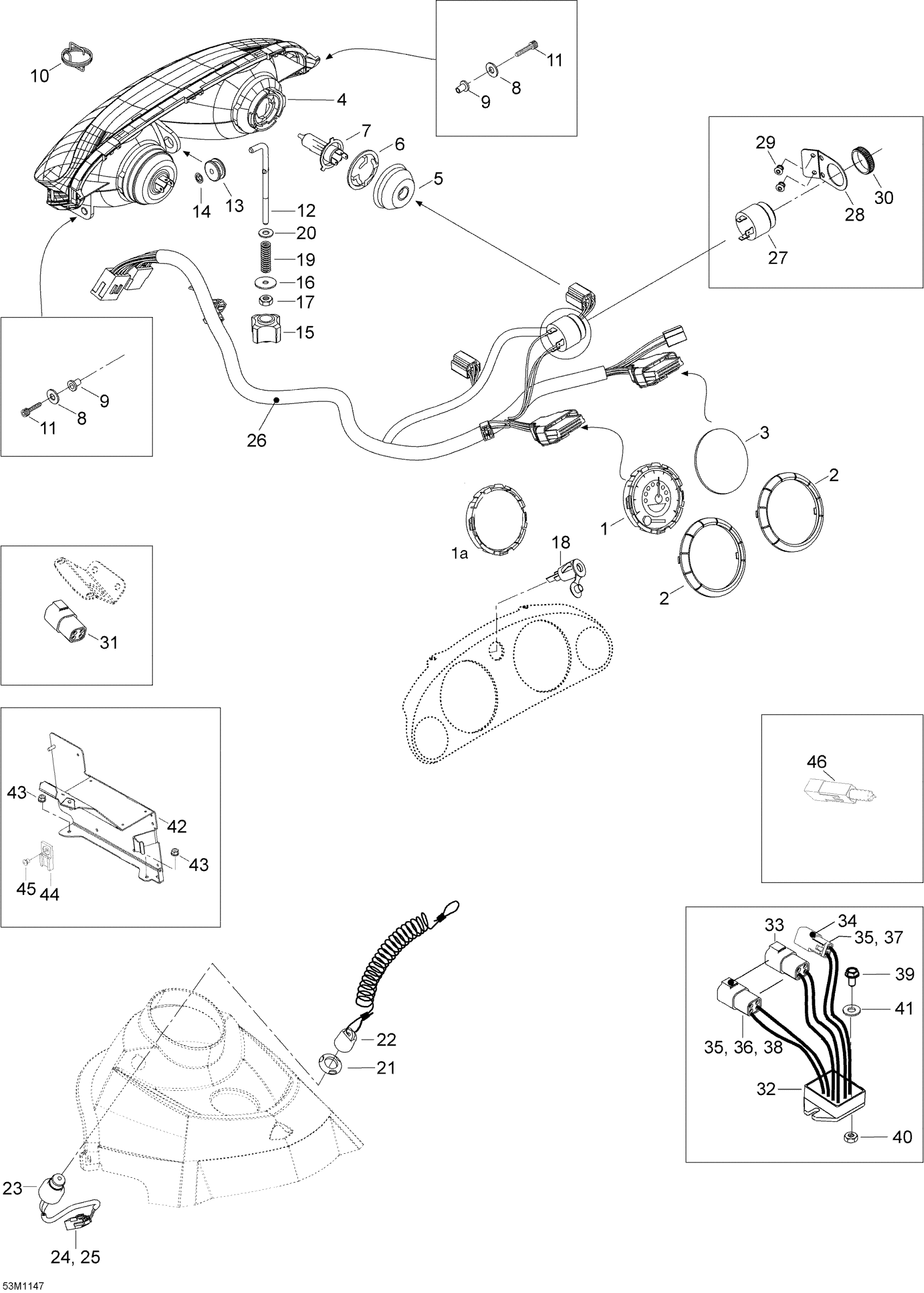

Ski-Doo Skandic SWT V800 YetiII, 2012 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

1a

LENS - Call your local BRP dealership

415129319

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

Washer 5,3 mm

20008

$0.74

9

NUT M5 - Call your local BRP dealership

250100018

$6.99

10

SPRING - Call your local BRP dealership

M5447238

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

13

Grommet - Call your local BRP dealership

415100800

Unavailable

14

Push Nut

732610072

$2.19

15

Handle - Call your local BRP dealership

515175548

Unavailable

16

WASHER - Call your local BRP dealership

M20038

Unavailable

17

Elastic Stop Nut M6

232561414

$0.55

18

Power outlet kit (Revo)

605352915

Unavailable

19

SPRING - Call your local BRP dealership

415100600

Unavailable

20

Flat Washer 6 mm

234061410

$1.36

21

Safety Nut (DESS Switch)

278002963

$3.28

22

DESS

515178284

$84.99

23

DESS Switch

515177249

$114.99

24

Male Terminal

515175232

$1.58

25

Male Housing, 3 Circuits

515175494

$16.18

26

HARNESS ASS'Y - Call your local BRP dealership

605355923

Unavailable

27

HORN - Call your local BRP dealership

515176035

Unavailable

28

Holder

M5447941

Unavailable

29

Rivet

36005

$2.11

30

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

31

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

32

Voltage Regulator | Includes 32 to 38

515176243

$359.99

33

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

34

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

35

Male Terminal

515175568

$9.12

36

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

37

Male Lock, 2 Circuits

278001672

$3.49

38

Sealing Cap

293000052

$3.19

39

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

40

Elastic Stop Nut M6

232561414

$0.55

41

Flat Washer 6 mm

234062410

$0.77

42

DEVICE PLATE - Call your local BRP dealership

605353300

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

44

Clip

270000141

$11.49

45

Rivet

36005

$2.11

46

CAPACITOR - Call your local BRP dealership

605355837

Unavailable
