Description

Price

1

FIXED FLANGE - Call your local BRP dealership

417222980

Unavailable

2

SLINDING FLANGE ASSY - Call your local BRP dealership

417222629

Unavailable

3

Bushing

417222758

$22.49

4

Circlip

293370037

$3.19

5

Lever | Includes 10f to 10g

417222671

$49.99

6

Bushing

417004305

$11.52

7

Roller

417222947

$21.99

8

Stopper Washer

417004302

$15.90

9

Pin

417222594

$14.99

10

Cotter Pin

250400060

$2.00

11

Lever Axle

417223164

$4.49

12

Spring Seat

417222312

$9.59

13

Tra Spring

414993000

$56.99

14

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

15

Bushing

417009204

$17.49

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

17

Lock Washer 8 mm

250200009

$2.11

18

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223472

Unavailable

19

Ramp 614

417222883

$36.99

20

Spring Pin M10 X 22

250400050

$2.99

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

22

Calibration Screw

417223501

$13.99

23

Washer

417005600

$4.09

24

Hex. Flange Nut M6

233061414

$1.68

25

Spring

417005700

$4.76

26

O-Ring

732401030

$0.98

27

Slider Shoe

417223271

$8.26

28

Guard

417009205

$21.99

29

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

30

Loctite 609, 10 ml

413703100

$26.99

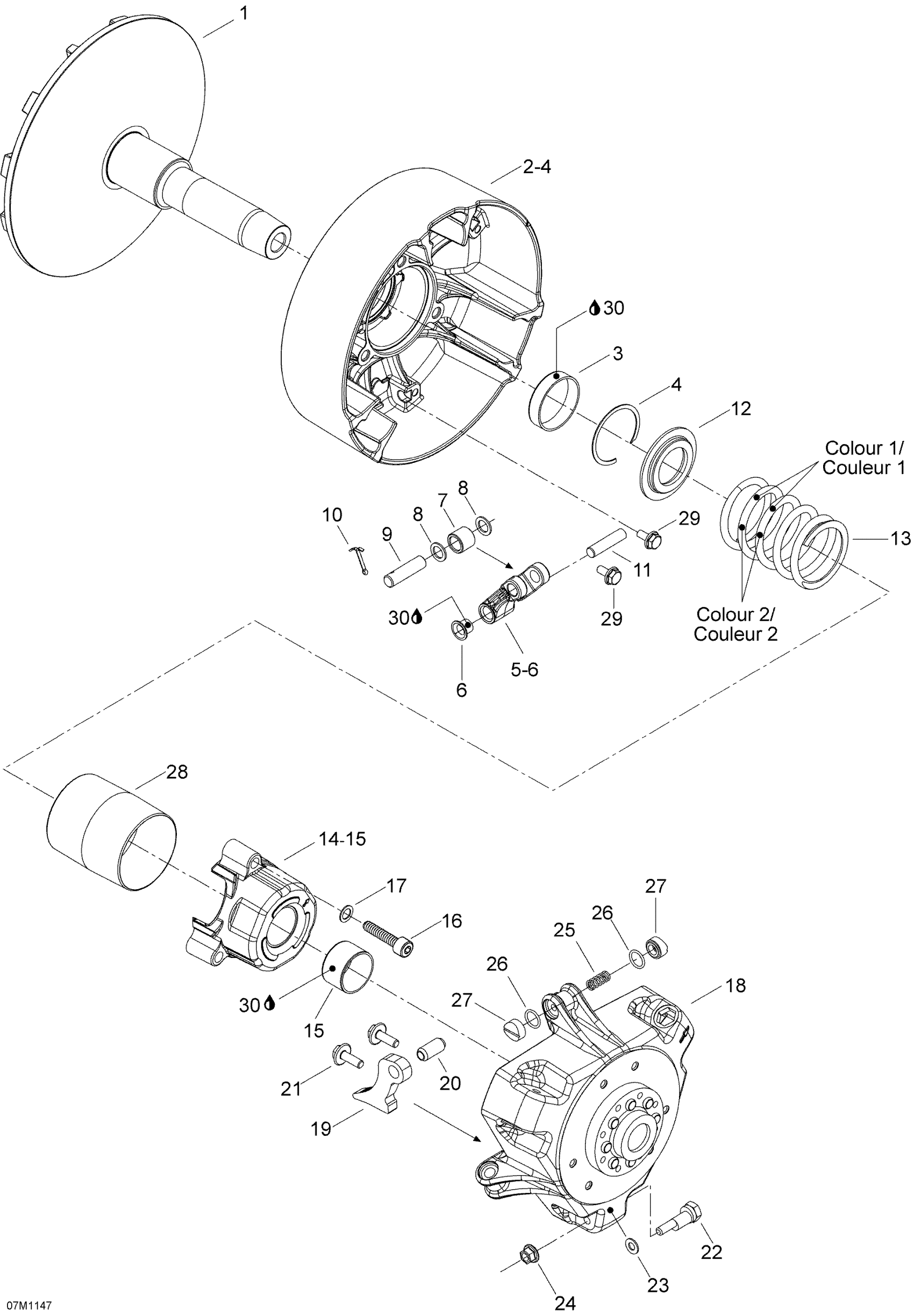

Ski-Doo Skandic SWT V800 YetiII, 2012 05- Drive Pulley Diagram

FIXED FLANGE - Call your local BRP dealership

SLINDING FLANGE ASSY - Call your local BRP dealership

Bushing

Circlip

Lever | Includes 10f to 10g

Bushing

Roller

Stopper Washer

Pin

Cotter Pin

Lever Axle

Spring Seat

Tra Spring

Spring Cover Ass'y | Includes 10r to 10t

Bushing

Socket Head Screw M8 X 1.25 X 40

Lock Washer 8 mm

GOVERNOR CUP ASS'Y - Call your local BRP dealership

Ramp 614

Spring Pin M10 X 22

Hex. Flange Screw M6 X 18, Scotch Grip

Calibration Screw

Washer

Hex. Flange Nut M6

Spring

O-Ring

Slider Shoe

Guard

Hex. Flange Screw M6 X 12, Scotch Grip

Loctite 609, 10 ml
