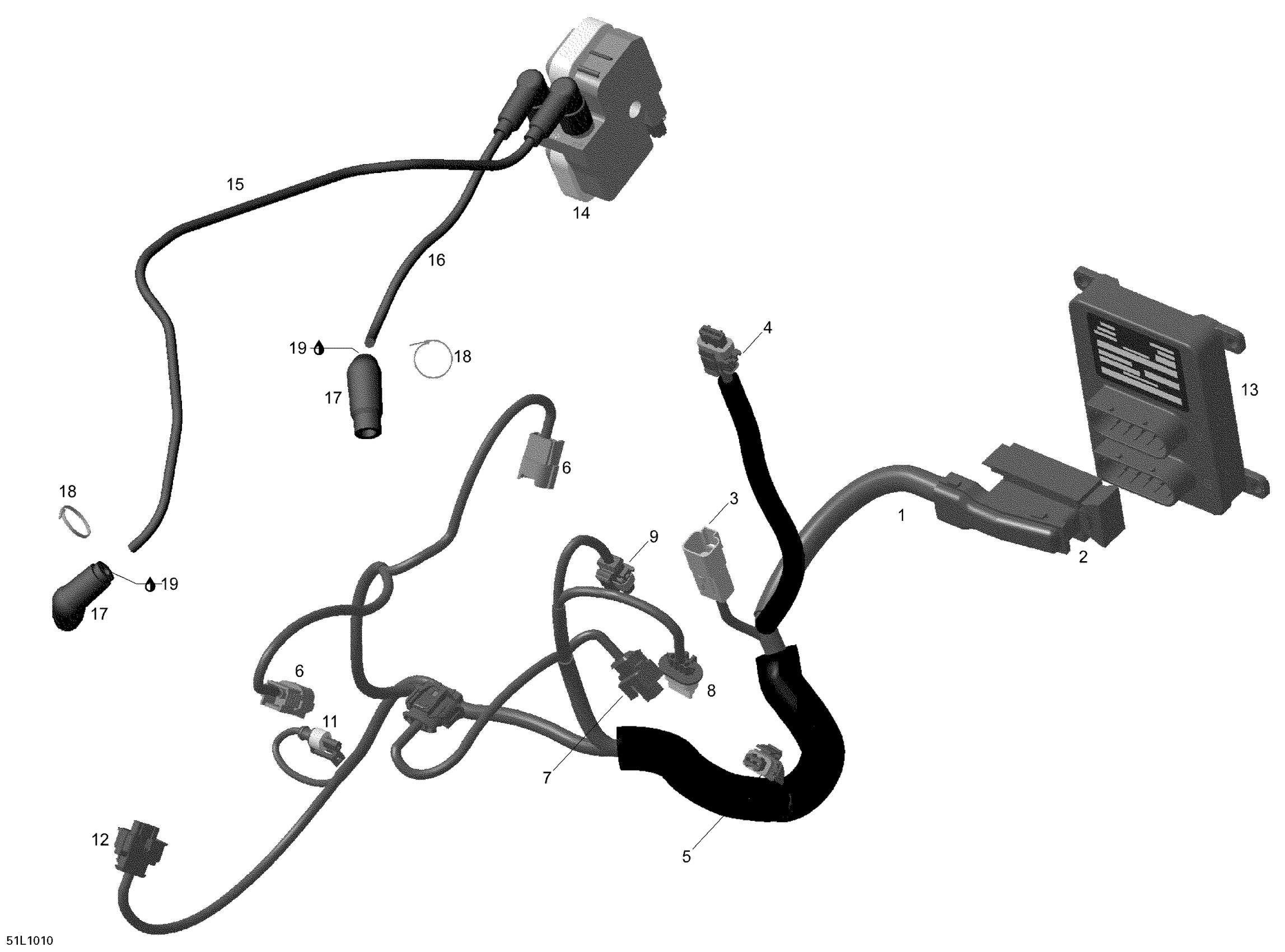

Ski-Doo Skandic SWT V800, 2010 10- Engine Harness And Electronic Module Diagram

#

Description
Price

1

WIRING HARNESS - Call your local BRP dealership | Includes 1 to 13

420665243

Unavailable

2

ECM Connector

420664450

$27.49

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

ELECTRONIC MODULE - Call your local BRP dealership This part replaces 420666207.

420666208

Unavailable

14

Ignition Coil

278001546

$158.99

15

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

16

CABLE ASS?Y 245 MM PTO - Call your local BRP dealership

420664305

Unavailable

17

Spark Plug Connector

420265248

$31.99

18

Tie Rap

420866710

$5.49

19

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
