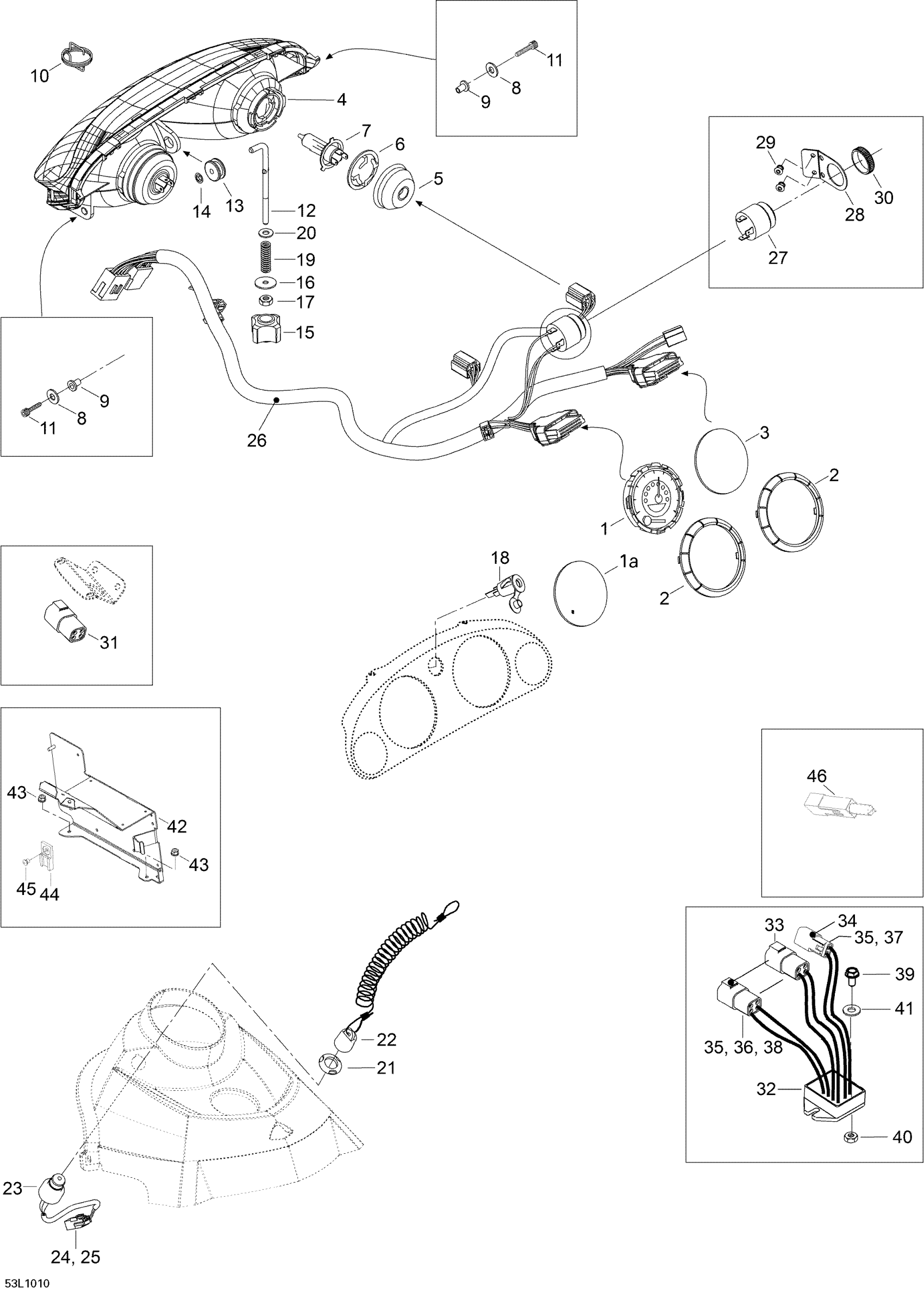

Ski-Doo Skandic SWT V800, 2010 Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

1a

LENS - Call your local BRP dealership

415129319

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.31

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

5

COVER - Call your local BRP dealership

515175911

Unavailable

8

Washer 5,3 mm

20008

$0.70

9

NUT M5 - Call your local BRP dealership

250100018

$6.25

10

SPRING - Call your local BRP dealership

M5447238

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

13

Grommet - Call your local BRP dealership

415100800

Unavailable

14

Push Nut

732610072

$1.97

15

Handle - Call your local BRP dealership

515175548

Unavailable

16

WASHER - Call your local BRP dealership

M20038

Unavailable

17

Elastic Stop Nut M6

232561414

$1.78

18

Power outlet kit (Revo)

605352915

Unavailable

19

SPRING - Call your local BRP dealership

415100600

Unavailable

20

Flat Washer 6 mm

234061410

$1.19

21

Safety Nut (DESS Switch)

278002963

$3.12

22

DESS

515178284

$79.07

23

DESS Switch

515177249

$102.96

24

Male Terminal

515175232

$1.45

25

Male Housing, 3 Circuits

515175494

$14.90

26

HARNESS ASS'Y - Call your local BRP dealership

605355923

Unavailable

27

HORN - Call your local BRP dealership

515176035

Unavailable

28

Holder

M5447941

Unavailable

29

Rivet

36005

$1.96

30

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

31

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

32

Voltage Regulator | Includes 32 to 38

515176243

$335.04

33

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

34

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

35

Male Terminal

515175568

$7.25

36

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

37

Male Lock, 2 Circuits

278001672

$2.93

38

Sealing Cap

293000052

$2.93

39

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

40

Elastic Stop Nut M6

232561414

$1.78

41

Flat Washer 6 mm

234062410

$0.73

42

DEVICE PLATE - Call your local BRP dealership

605353300

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

44

Clip

270000141

$9.57

45

Rivet

36005

$1.96

46

CAPACITOR - Call your local BRP dealership

605355837

Unavailable
