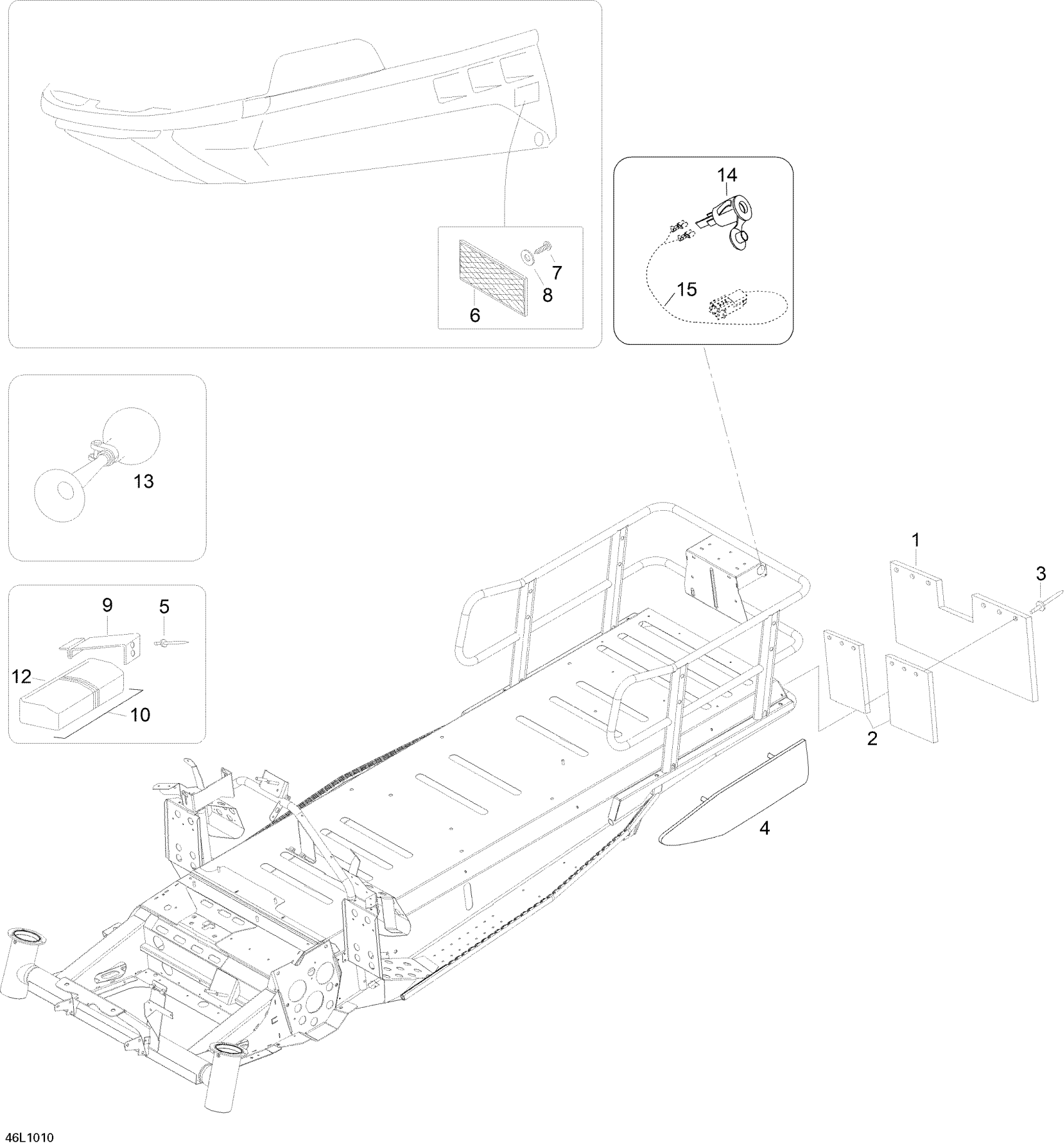

Ski-Doo Skandic SWT V800, 2010 Utilities Diagram

#

Description
Price

1

Snow Guard

605354720

$84.99

2

SUPPORT - Call your local BRP dealership

605355316

Unavailable

3

Black Rivet

36037

$1.48

4

LH SIDE SNOW GUARD - Call your local BRP dealership

605354746

Unavailable

4

RH SIDE SNOW GUARD - Call your local BRP dealership

605354747

Unavailable

5

Rivet

36108

$1.90

6

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

7

SCREW M5X12 - Call your local BRP dealership

M40063

Unavailable

8

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

9

SPRING PLATE - Call your local BRP dealership

M5346728

Unavailable

10

TOOL SET - Call your local BRP dealership

605352219

Unavailable

12

TOOL BOX - Call your local BRP dealership

A50121179000

Unavailable

13

Horn

549011291

$35.99

14

Power outlet kit (Revo)

605352915

Unavailable

15

Power Outlet Harness

605354674

Unavailable
