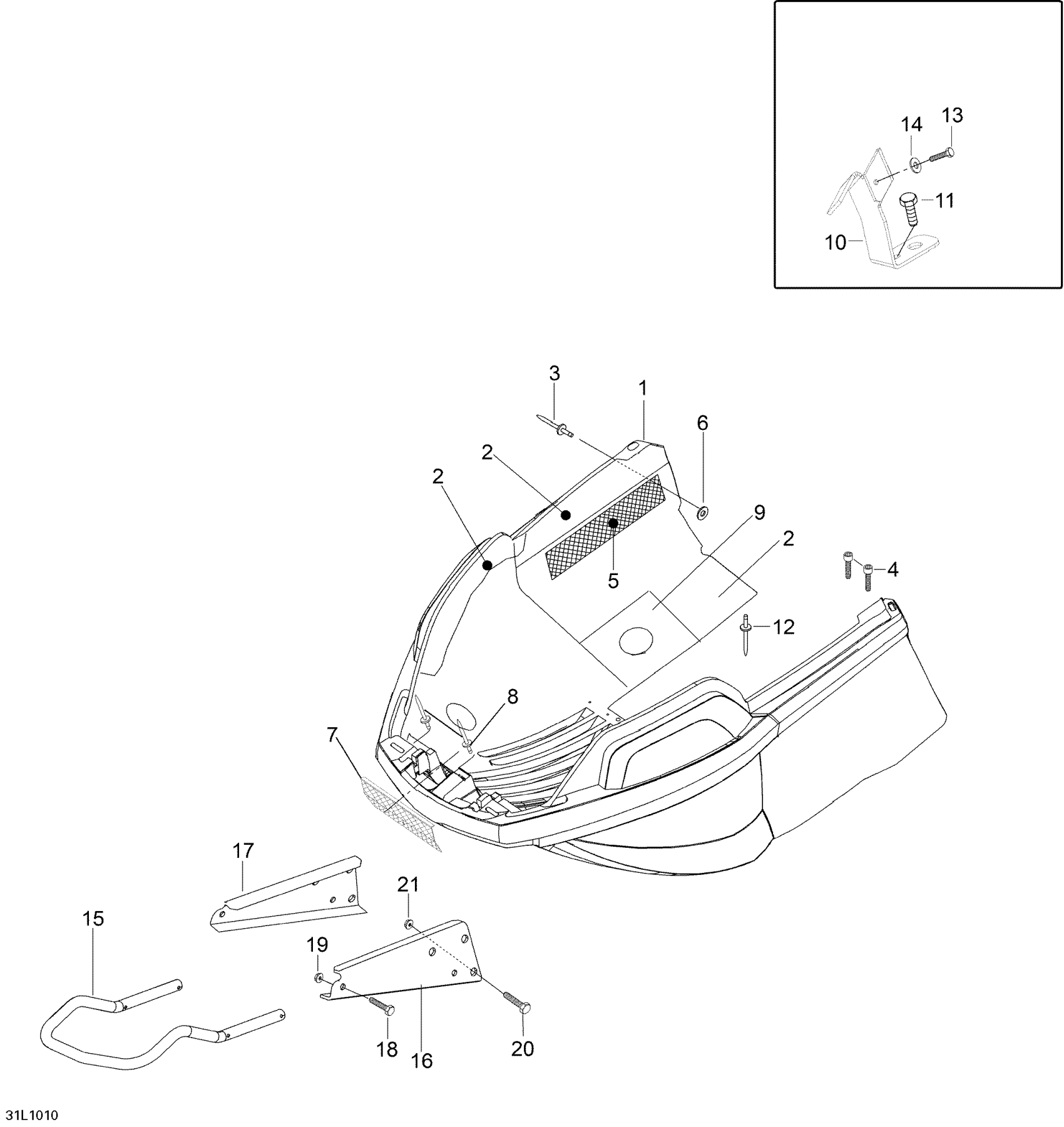

Ski-Doo Skandic SWT V800, 2010 09- Bottom Pan Diagram

#

Description
Price

1

Bottom Pan ass'y Yeti LTS600mm - Call your local BRP dealership This part replaces 605254970.

605255248

Unavailable

2

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable

3

Rivet

36108

$1.90

4

SCREW - Call your local BRP dealership

M40332

Unavailable

5

RH SIDE GRILL - Call your local BRP dealership

605354968

Unavailable

5

LH SIDE GRILL - Call your local BRP dealership

605354969

Unavailable

6

Washer 5,3 mm

20008

$0.74

7

FRONT GRILL - Call your local BRP dealership

605255513

Unavailable

8

Screw 4,2 X 13

M40847

Unavailable

9

Reflective Sheet

605354031

Unavailable

10

LH BRACKET - Call your local BRP dealership

605354709

Unavailable

10

RH BRACKET - Call your local BRP dealership

605354710

Unavailable

11

SCREW-HEX.CAP M6X10 - Call your local BRP dealership

M40401

Unavailable

12

Black Rivet

36037

$1.48

13

Hex. Forming Screw M5 X 16

210251650

$1.15

14

Washer 5,3 mm

20008

$0.74

15

BUMPER - Call your local BRP dealership

605255112

Unavailable

16

LH BUMPER PLATE - Call your local BRP dealership

605355113

Unavailable

17

RH BUMPER PLATE - Call your local BRP dealership

605355114

Unavailable

18

Hex. Screw M6 X 40

207064044

$1.48

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Hex. Screw M8 X 20

207182044

$0.74

21

Hex. Flange Elastic Nut M8

233281414

$1.47
