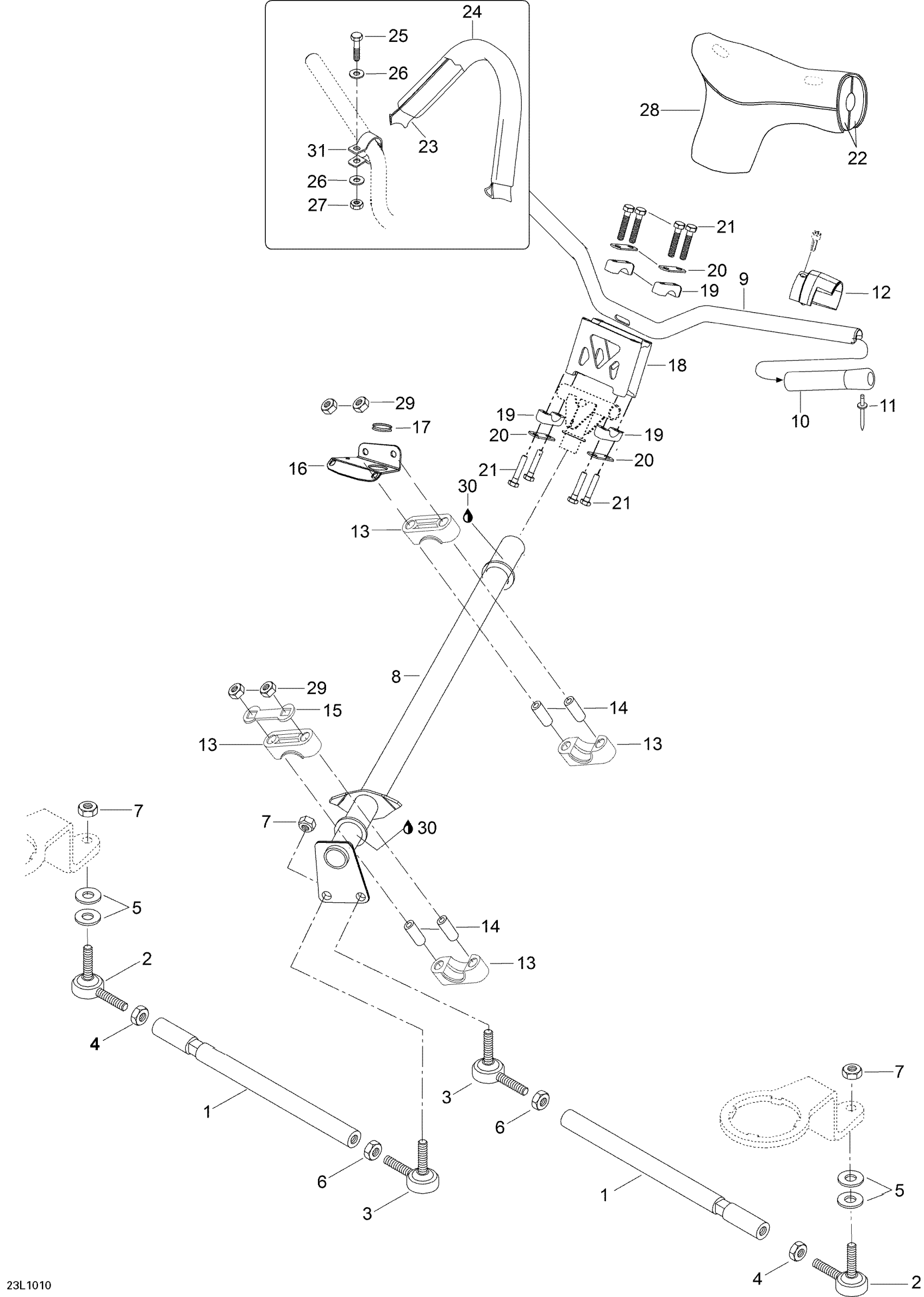

Ski-Doo Skandic SWT V800, 2010 Steering Diagram

#

Description
Price

1

RH TIE ROD - Call your local BRP dealership

605454772

Unavailable

1

LH TIE ROD - Call your local BRP dealership

605454293

Unavailable

2

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

3

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

4

RH NUT - Call your local BRP dealership

M33019

Unavailable

5

Washer

M31014

Unavailable

6

LH NUT - Call your local BRP dealership

M33017

Unavailable

7

Elastic Flange Nut M10

232501416

$1.43

8

MAIN TUBE - Call your local BRP dealership

605253421

Unavailable

9

HANDLE BAR - Call your local BRP dealership

605251368

$82.81

10

Grip | WAKE This part replaces M5340464.

506152483

$11.31

11

Rivet

36005

$1.96

12

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

13

Housing Half

506150400

$7.09

14

Housing Bushing

506150500

$7.27

15

Stopper Plate

506150600

$4.03

16

Bracket

605351973

Unavailable

17

Grommet This part replaces M28022.

28022

$13.37

18

Riser Handle Bar Kit

860603900

Unavailable

19

Steering Support

709400919

$20.12

20

Stiffner

709400509

$4.30

21

Hex. Screw With Nylon M8 X 40

250000074

$1.78

22

Foam

605354907

Unavailable

23

Strap Ass'y | Package XMR

506152115

$41.76

24

Strap Ass'y | Package XMR

506152115

$41.76

25

Hex. Screw M6 X 25

207162544

$1.01

26

Flat Washer 6 mm

234061410

$1.19

27

Elastic Stop Nut M6

232561414

$1.78

28

STEERING COVER - Call your local BRP dealership

605254571

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

$1.31

30

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

31

Black Support Plate

506152536

$8.34
