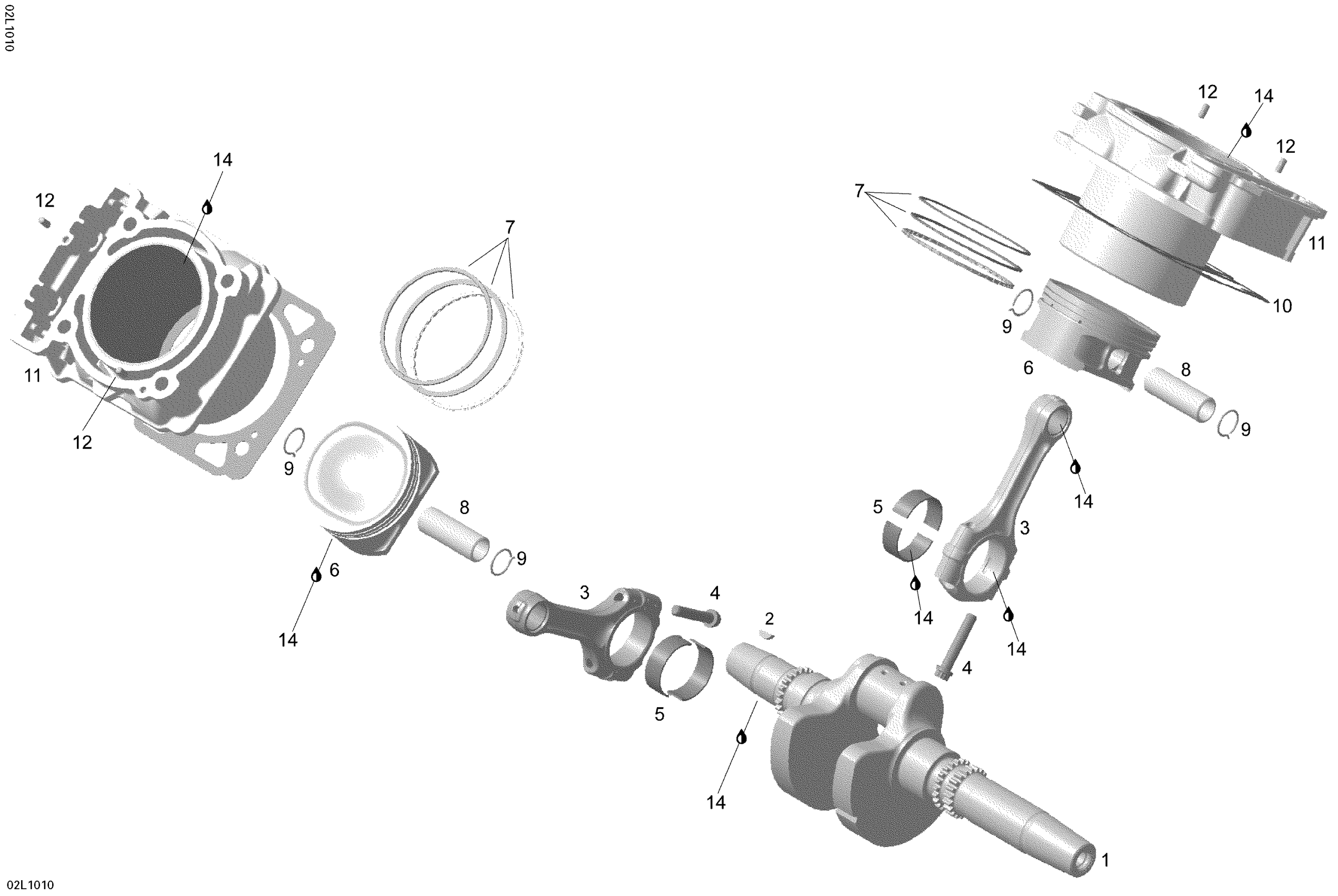

Ski-Doo Skandic SWT V800, 2010 01- Crankshaft And Pistons Diagram

CRANKSHAFT ASS'Y - Call your local BRP dealership

420819355

Unavailable

Woodruff Key 4 X 5

420246570

$3.38

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

Connecting Rod Screw M8 X 1

420641645

$14.28

Plain Bearing 40 X 43 X 15

420233980

$28.49

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$159.49

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

Piston Ring Set | 400HO

420296774

$78.99

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

Piston Pin

420216270

$25.99

Piston Circlip

420845106

$3.93

Gasket

420630210

$12.71

Cylinder With Sleeve

420413434

$457.49

Drive Pin 5 X 10

420929650

$1.68

GASKET SET - Call your local BRP dealership

420684133

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable
