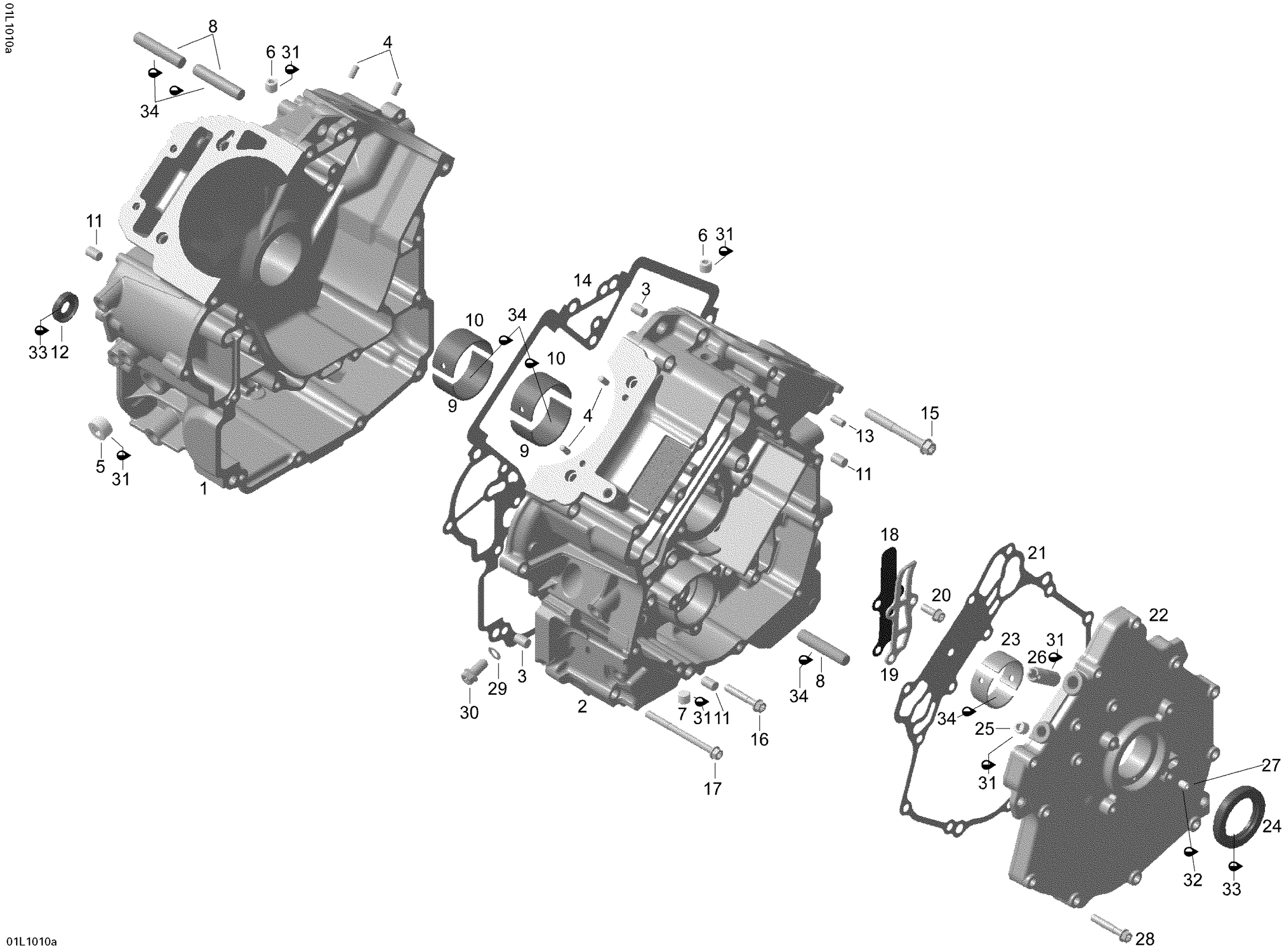

Ski-Doo Skandic SWT V800, 2010 01- Crankcase Diagram

#

Description
Price

—

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1a to 13

420684558

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Drive Pin 5 X 10

420929650

$1.68

5

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

6

Plug Screw M10 X 1

420641323

$14.28

7

Plug Screw M12x1,5

420840658

$7.51

8

Location Pin 10 M6x50

420229302

$3.17

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Center Pin 8 X 12

420632010

$4.01

12

Oil Seal

420650315

$11.65

13

Needle Pin

420932780

$7.41

14

Gasket

420651220

$35.99

15

Torx Flange Screw M8 X 65

420440402

$7.41

16

Torx Flange Screw M6 X 35

420641258

$3.38

17

Torx Flange Screw M6 X 75

420440657

$4.44

18

Reed Valve

420224721

$19.19

19

Reed Valve Stop

420224725

$11.63

20

Torx Flange Screw M6 X 16

420641048

$2.96

21

Gasket

420651211

$26.49

22

PTO COVER ASS'Y - Call your local BRP dealership | Includes 22 to 27

420612127

Unavailable

23

Bearing Sleeve

420233995

$20.99

24

Oil Seal

420631933

$27.49

25

Plug Screw M10 X 1

420641323

$14.28

26

Hose Nipple

420256332

$17.53

27

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

28

Torx Flange Screw M6 X 35

420641258

$3.38

29

Sealing Ring

420950141

$2.00

30

Torx Flange Screw M8 X 16

420440852

$4.12

31

Loctite 243, 10 ml

293800060

$21.49

32

Sealant Loctite 648

219703000

$45.99

33

Grease, Super Lube

293550030

$28.99

34

Synth Oil 4T 12x1

293600054

Unavailable
