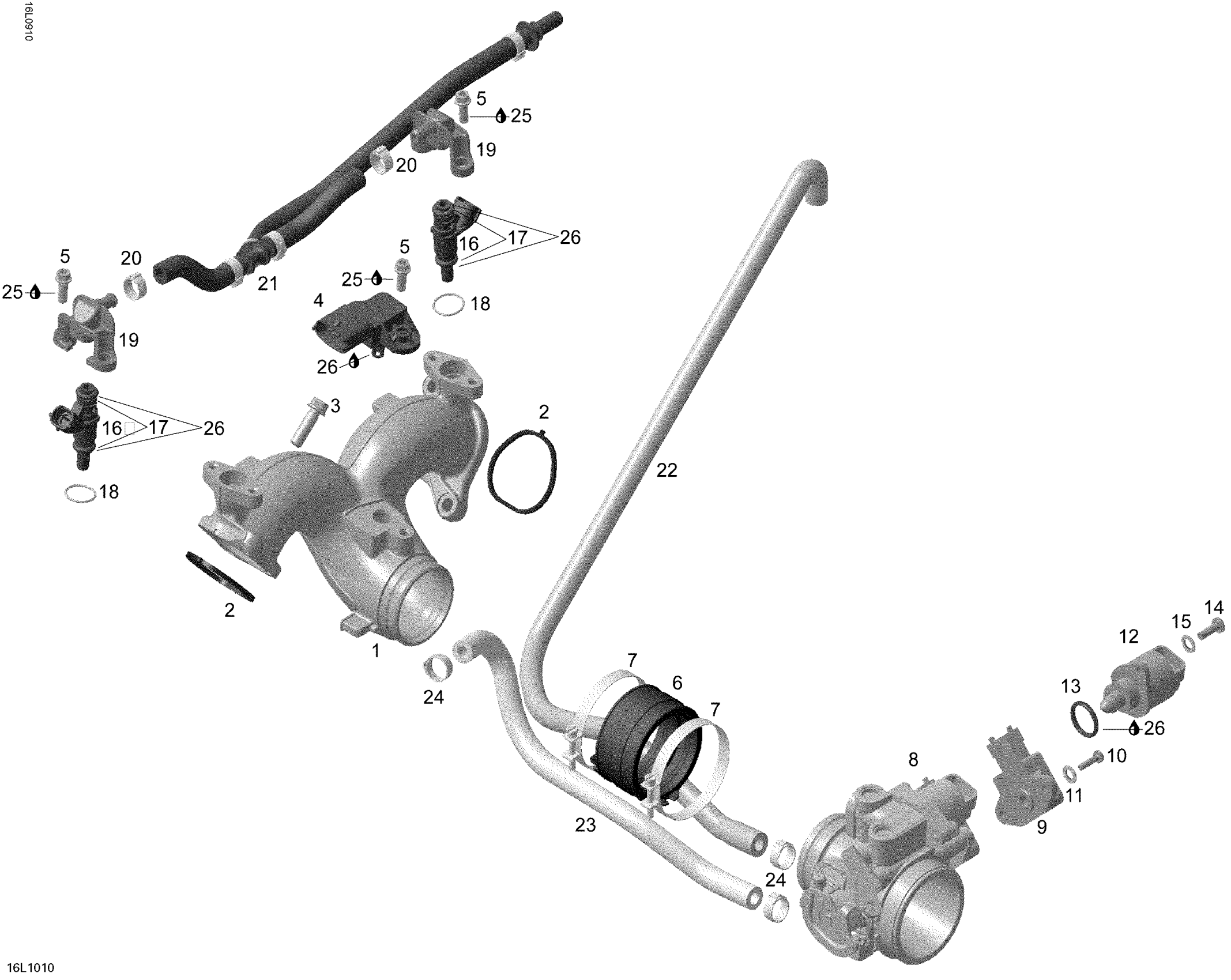

Ski-Doo Skandic SWT V800, 2010 01- Air Inlet Manifold And Throttle Body Diagram

#

Description
Price

1

AIR INTAKE MANIFOLD - Call your local BRP dealership

420667342

Unavailable

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Pressure And Temperature Sensor

707000995

$88.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Intake Adaptor

420267480

$15.89

7

Clamp

420251480

$14.28

8

THROTTLE BODY ASS'Y. - Call your local BRP dealership | Includes 8 to 15

420296878

Unavailable

9

Position Sensor

420866120

$98.99

10

Phillips Screw M4 X 16

208641660

$0.90

11

Flat Washer 4 mm, Stainless

234042600

$1.15

12

Idle Air Control Valve

420665941

$179.99

13

O-Ring

420631780

$4.44

14

Binding Head Screw M5 X 16

420440911

$14.28

15

Snap Ring

420845710

$4.12

16

Injection Valve

420874402

$185.49

17

O-Ring

420631220

$14.28

18

O-Ring

420631296

$0.76

19

Fuel Rail

420874410

$19.99

20

Clamp

420851458

$7.41

21

HOSE - Call your local BRP dealership

420874711

Unavailable

22

Hose

420822359

$45.99

23

FORMED HOSE - Call your local BRP dealership

420460272

Unavailable

24

Oetiker Clamp

293650125

$3.29

25

Loctite 243, 10 ml

293800060

$21.49

26

Grease, Super Lube

293550030

$28.99
