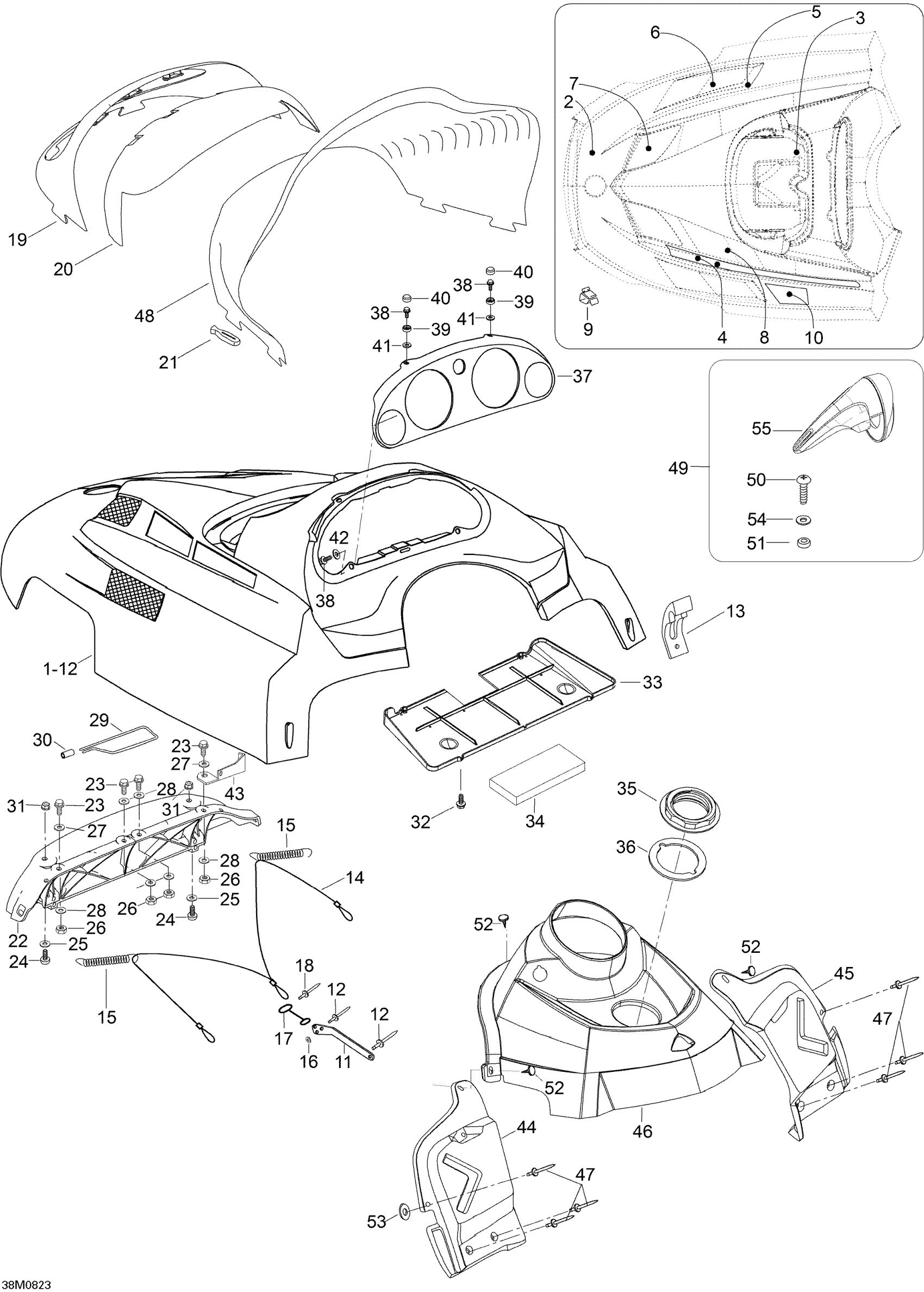

Ski-Doo Skandic SWT V-800, 2008 09- Hood Diagram

#

Description
Price

1

HOOD (YELLOW) - Call your local BRP dealership

605154503

Unavailable

2

HEAT PROTECTOR - Call your local BRP dealership

605350919

Unavailable

3

HEAT PROTECTOR - Call your local BRP dealership

605350920

Unavailable

4

HEAT SHIELD - Call your local BRP dealership

605350921

Unavailable

5

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

RH UPPER GRILL - Call your local BRP dealership

605350924

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Clip

414227300

$1.67

10

HEAT SHIELD - Call your local BRP dealership

605350929

Unavailable

11

BRACKET - Call your local BRP dealership

605452657

Unavailable

12

RIVET - Call your local BRP dealership

M36002

Unavailable

13

Hood Latch

517302152

$18.49

14

Retainer Cable

605351372

Unavailable

15

Spring This part replaces M5442675.

5442675

$14.99

16

Washer

M20001

Unavailable

17

Cable Keeper

M5442870

Unavailable

18

RIVET - Call your local BRP dealership

M36097

Unavailable

19

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

20

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

21

Windshield Latch

570023800

$4.49

22

Hinge

517302631

$48.99

23

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

24

Screw M6X20

M40381

Unavailable

25

Washer

20117

$6.39

26

Elastic Stop Nut M6

232561414

$0.55

27

Flat Washer 6 mm

234061410

$1.36

28

Flat Washer 6 mm

234062410

$0.77

29

Pin

605454779

Unavailable

30

BUSHING - Call your local BRP dealership

605454780

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

33

AIR INTAKE PLATE - Call your local BRP dealership

605151831

Unavailable

34

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

M5447116

Unavailable

37

INDICATOR SUPPORT - Call your local BRP dealership

605354134

Unavailable

38

Screw Plastofast 4x10 - Call your local BRP dealership

M40611

Unavailable

39

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

40

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

41

Washer

20037

$2.11

42

WASHER - Call your local BRP dealership

M20039

Unavailable

43

LH HOOD SUPPORT - Call your local BRP dealership

605351463

Unavailable

43

RH HOOD SUPPORT - Call your local BRP dealership

605351464

Unavailable

44

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

45

RH CONSOLE - Call your local BRP dealership

605251385

Unavailable

46

CONSOLE, MIDDLE - Call your local BRP dealership

605251387

Unavailable

47

Black Rivet

36037

$1.48

48

Windshield

605152073

$180.99

49

Mirror Kit

517303955

$53.49

50

Torx Screw K50 X 16

250000720

$1.69

51

Washer M5

250200025

$0.74

52

Black, Dart

414644300

$0.98

53

Washer 5,3 mm

20008

$0.74

54

Rubber Washer 5 mm

250200024

$2.19

55

Mirror Kit

517303955

$53.49
