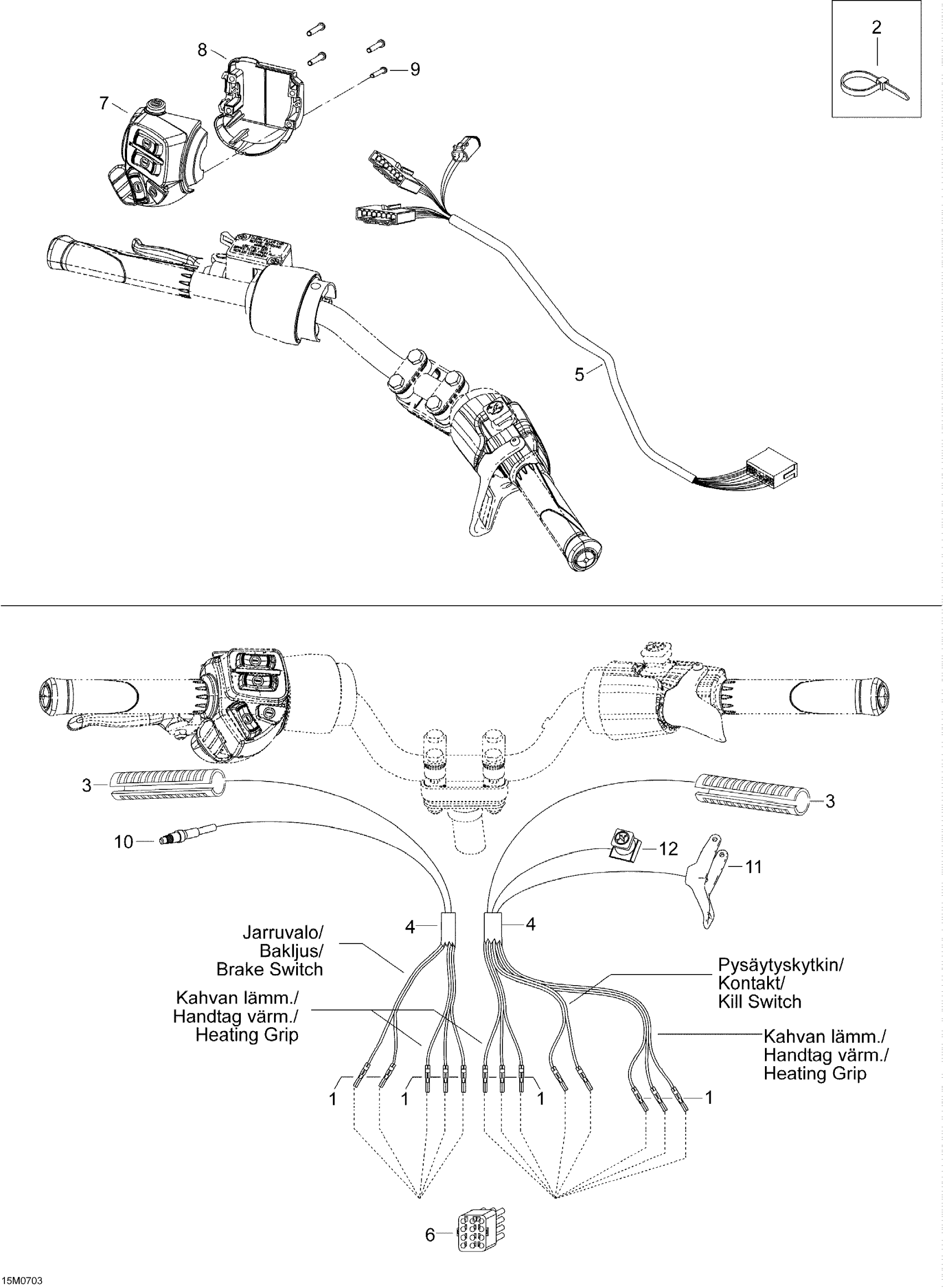

Ski-Doo Skandic SWT V-800, 2007 Steering Wiring Harness Diagram

#

Description

Price

1

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

2

Tie Rap 290 Mm

M27100

$1.49

2

Tie-Rap 180 mm

414115200

$0.09

3

Heating Grip

515175664

$67.66

4

Housing

M39023

Unavailable

5

STEERING HARNESS ASS'Y - Call your local BRP dealership

605354616

Unavailable

6

Male Connector Housing

M42617

Unavailable

7

SWITCH HOUSING LH - Call your local BRP dealership

605356204

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Screw 3.5X25

M40903

Unavailable

10

Microswitch

507032366

$104.58

11

Throttle Handle

512059481

$72.28

12

Kill Switch

515175410

Unavailable

WIRING HARNESS MAIN - Call your local BRP dealership | Not shown in picture

605154615

Unavailable
