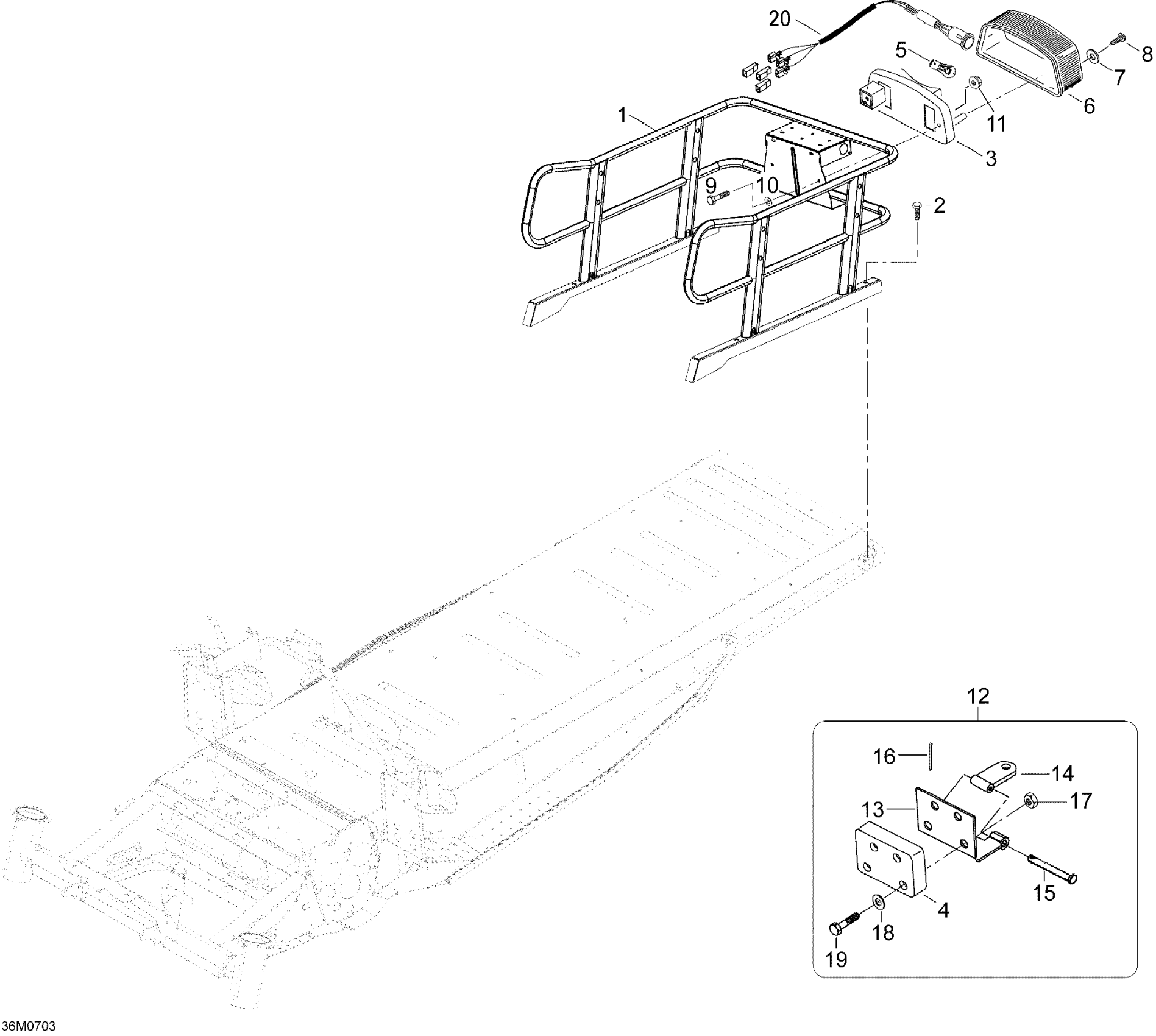

Ski-Doo Skandic SWT V-800, 2007 09- Luggage Rack Diagram

#

Description
Price

1

Portable Rack Ass'y

605255117

Unavailable

2

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

3

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

4

SPACER - Call your local BRP dealership

605351510

Unavailable

5

Bulb

520000758

$9.10

6

Lens

414513700

$28.99

7

Washer - Call your local BRP dealership

414516400

Unavailable

8

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

9

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

10

M8 Washer This part replaces M20077.

20077

$1.48

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

14

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

15

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

16

Cotter Pin

41031

$7.65

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Flat Washer 8 mm

234081410

$0.83

19

Hex. Screw M8 X 50

207085044

$1.48

20

Taillight Harness

605354685

Unavailable
