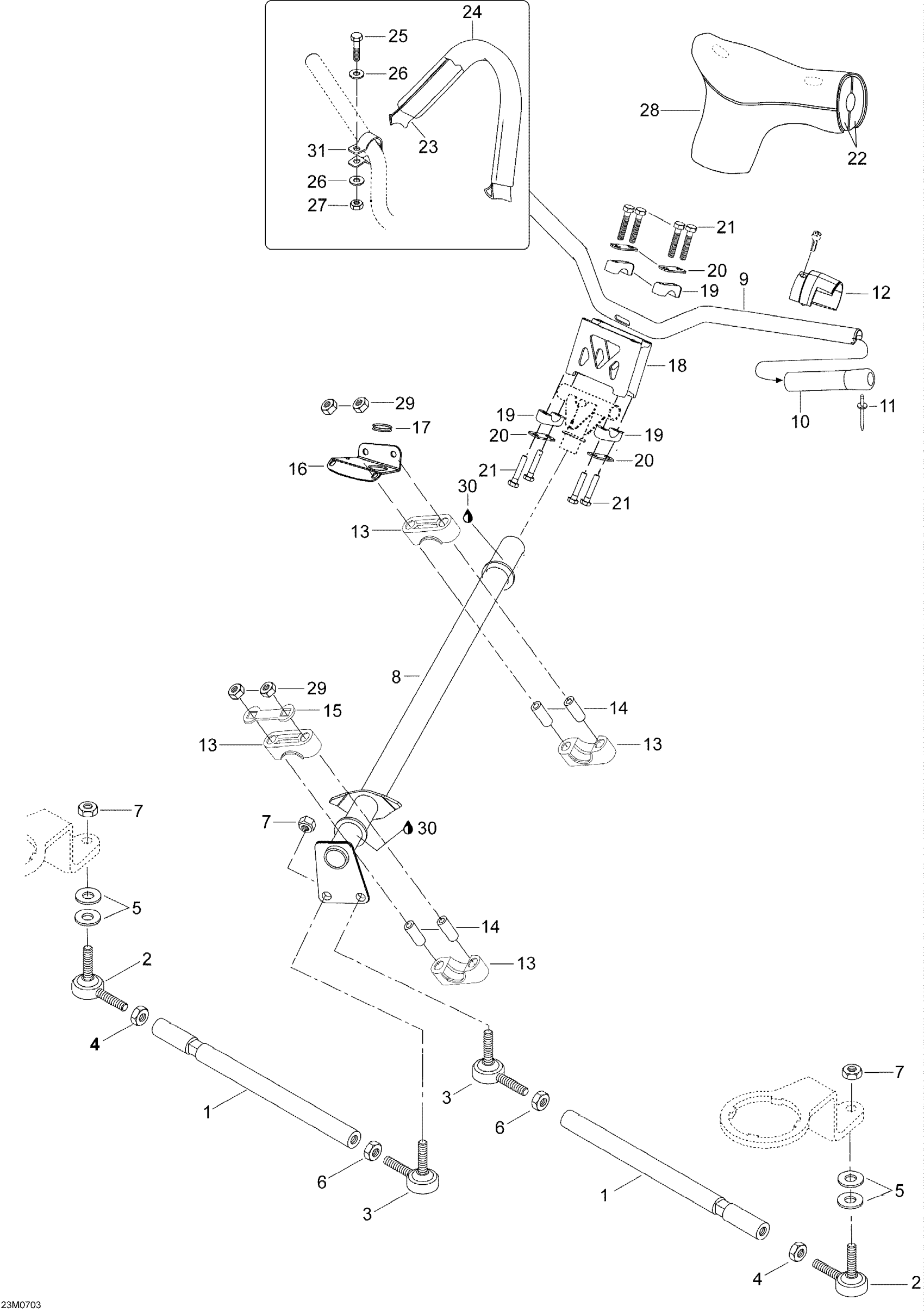

Ski-Doo Skandic SWT V-800, 2007 07- Steering System Diagram

#

Description
Price

1

RH TIE ROD - Call your local BRP dealership

605454772

Unavailable

1

LH TIE ROD - Call your local BRP dealership

605454293

Unavailable

2

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

3

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

4

RH NUT - Call your local BRP dealership

M33019

Unavailable

5

Washer

M31014

Unavailable

6

LH NUT - Call your local BRP dealership

M33017

Unavailable

7

Elastic Flange Nut M10

232501416

$1.48

8

MAIN TUBE - Call your local BRP dealership

605253421

Unavailable

9

HANDLE BAR - Call your local BRP dealership

605251368

$92.99

10

Grip | WAKE This part replaces M5340464.

506152483

$12.17

11

Rivet

36005

$2.11

12

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

13

Housing Half

506150400

$7.62

14

Housing Bushing

506150500

$7.99

15

Stopper Plate

506150600

$4.39

16

Bracket

605351973

Unavailable

17

Grommet This part replaces M28022.

28022

$15.29

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Steering Support

709400919

$22.49

20

Stiffner

709400509

$4.69

21

Hex. Screw With Nylon M8 X 40

250000074

$1.90

22

Foam

605354907

Unavailable

23

Strap Ass'y | Package XMR

506152115

$44.49

24

Strap Ass'y | Package XMR

506152115

$44.49

25

Hex. Screw M6 X 25

207162544

$1.15

26

Flat Washer 6 mm

234061410

$1.36

27

Elastic Stop Nut M6

232561414

$0.55

28

STEERING COVER - Call your local BRP dealership

605254571

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

31

Black Support Plate

506152536

$9.19
