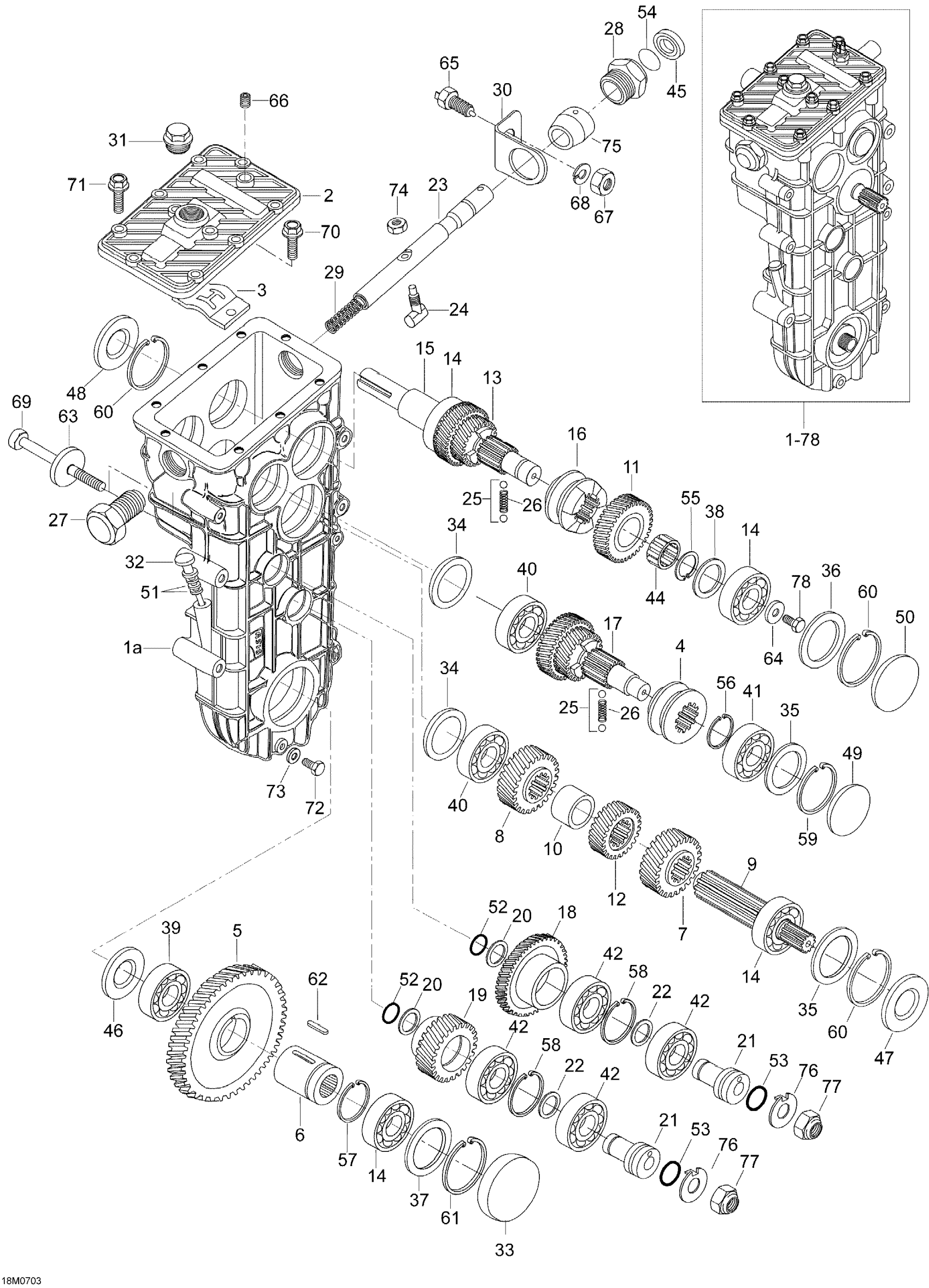

Ski-Doo Skandic SWT V-800, 2007 05- Transmission Diagram

#

Description
Price

1

GEAR BOX - Call your local BRP dealership | Includes 1 to 77

605612003

Unavailable

1a

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

2

COVER - Call your local BRP dealership

M875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

5

Sprocket 59 Th

M875156057

Unavailable

6

SHAFT - Call your local BRP dealership

M875156218

Unavailable

7

Sprocket 27 Th

M875156136

Unavailable

8

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

9

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

10

SLEEVE - Call your local BRP dealership

M875156088

Unavailable

11

Sprocket 29 Th

M875156135

Unavailable

12

Sprocket 24 Th

M875156060

Unavailable

13

Variator Shaft | Includes 13 to 15

M875156155

Unavailable

14

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

15

Sleeve

M875156153

Unavailable

16

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

17

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

18

Sprocket 33 Th

M875156059

Unavailable

19

Sprocket 26 Th

M875156058

Unavailable

20

Washer - Call your local BRP dealership This part replaces M875156328.

875156328

Unavailable

21

SHAFT - Call your local BRP dealership

619230005

Unavailable

22

WASHER - Call your local BRP dealership

619230004

Unavailable

23

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

24

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

25

Ball This part replaces M616810064.

616810064

$26.99

26

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

27

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

28

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

29

Spring This part replaces M875156078.

875156078

$109.99

30

BRACKET - Call your local BRP dealership

M875156242

Unavailable

31

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

32

DIPSTICK - Call your local BRP dealership This part replaces M875156278.

875156278

Unavailable

33

Plug - Call your local BRP dealership This part replaces M614100068.

614100068

Unavailable

34

Plug This part replaces M875152953.

875152953

$42.99

35

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

36

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

37

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

38

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

39

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

40

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

41

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

42

BEARING - Call your local BRP dealership This part replaces M612030303.

612030303

Unavailable

43

BALL BEARING - Call your local BRP dealership This part replaces M610060084.

610060084

Unavailable

44

Needle bearing This part replaces M611002529.

611002529

$27.49

45

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

46

Oil seal This part replaces M614102852.

614102852

$25.99

47

Oil seal This part replaces M614102562.

614102562

$51.99

48

Oil seal This part replaces M614103562.

614103562

$52.99

49

Plug This part replaces M614100052.

614100052

$28.49

50

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

51

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

52

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

53

O-ring This part replaces M614602431.

614602431

$11.60

54

O-ring This part replaces M614601523.

614601523

$11.60

55

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

56

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

57

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

58

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

59

LOCK RING - Call your local BRP dealership

M617330052G

Unavailable

60

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

61

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

62

KEY - Call your local BRP dealership

M603345080

Unavailable

63

WASHER - Call your local BRP dealership

619230004

Unavailable

64

WASHER - Call your local BRP dealership

M875156112

Unavailable

65

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

66

Threated Plug

M640025012S

Unavailable

67

NUT - Call your local BRP dealership

M33021

Unavailable

68

WASHER - Call your local BRP dealership

M20016

Unavailable

69

SCREW - Call your local BRP dealership

619230003

Unavailable

70

Hex. Screw

M40337

Unavailable

71

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

72

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

73

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

74

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

75

SLEEVE - Call your local BRP dealership

M5446699

Unavailable

76

Washer - Call your local BRP dealership This part replaces M875156327.

875156327

Unavailable

77

NUT M10 - Call your local BRP dealership This part replaces M510600802.

510600802

Unavailable

78

Hex. Screw M8 X 20

207182044

$0.74
