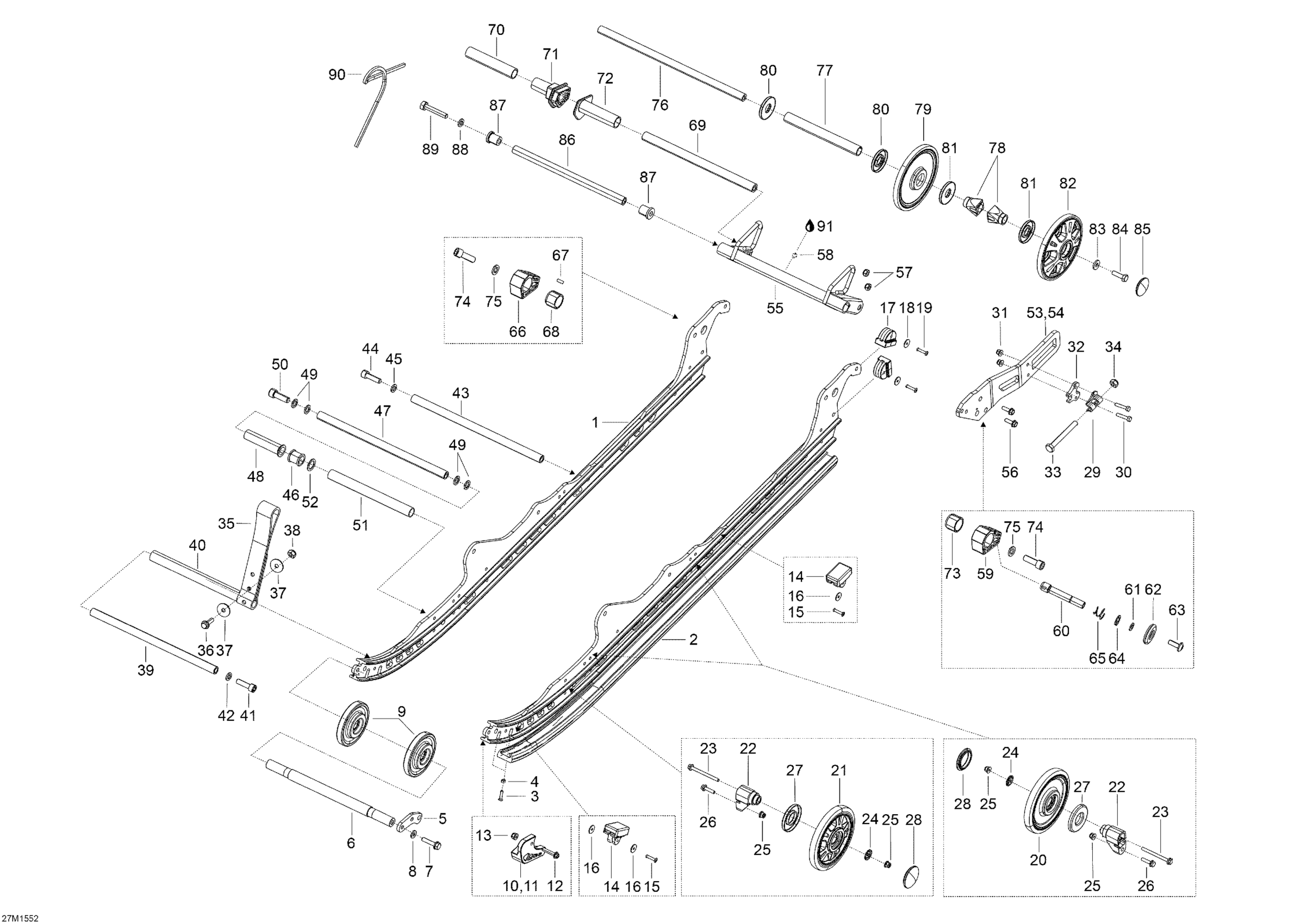

Ski-Doo Skandic SWT 900 ACE, 2015 Rear Suspension A_27M1552 Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$230.74

2

Black Slider, 154"

503192618

$33.05

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561434

$1.55

5

Plate

503192612

$11.45

6

Front Wheel Shaft

503193053

$43.05

7

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Washer

503189157

$3.20

9

Black, Wheel Ass'y, 100 mm

503192611

$32.28

10

RH Protector

503192610

$26.89

11

LH Protector

503192609

$26.89

12

Hex. Flange Screw M8 X 40

207684044

$1.25

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Rubber Stopper

503190576

$10.23

15

Pop Rivet 3/16"

293150142

$2.11

16

Washer

503191273

$1.06

17

Rubber Stopper

503191291

$18.43

18

Pop Rivet 3/16"

293150142

$2.11

19

Washer

503191273

$1.06

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

21

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

22

Casted Support

503193894

$12.75

23

Hex. Flange Screw M6 X 70

207667056

$3.61

24

Wheel Cup M6

503191820

$4.66

25

Hex. Flange Elastic Nut M6

233261466

$1.66

26

Hex. Flange Screw M6 X 25

207662556

$3.61

27

Labyrinth Seal

503190434

$5.85

28

Black, Wheel Cap

503192771

$2.28

29

Tensioner

503192583

$5.85

30

Hex. Cap Screw M6 X 30

207063054

$4.41

31

Hex. Flange Elastic Nut M6

233261466

$1.66

32

Spacer

503193250

$13.95

33

Hex Screw M10 x 100

230100054

$5.29

34

Elastic Locking Nut M10

233601466

$1.74

35

Stopper Strap

503192360

$19.97

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

37

Flat Washer

224081301

$0.86

38

Hex. Flange Elastic Nut M8

233281414

$1.14

39

Axle Strap

503192623

$61.51

40

Spacer

503192679

Unavailable

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

42

Washer

503189564

$0.72

43

Axle Strap

503191418

$55.35

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

45

Washer

503189564

$0.72

46

Bushing

503189271

$10.46

47

Shaft

503193967

$128.43

48

Center Bushing

503191259

$8.97

49

Washer

503189276

$3.20

50

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

51

Spacer

503191421

$46.12

52

Washer

503189273

$3.20

53

Runner Pivot RH

503192893

$226.12

54

Runner Pivot LH

503192892

$226.12

55

Welded Pivot | Includes 100c to 100c3

503191414

$96.12

56

Hex. Flange Screw M8 X 25

207682534

$0.90

57

Hex. Elastic Stop Nut M8

232581414

$0.47

58

Grease Fitting

408200700

$2.80

59

LH Block

503192426

$12.69

60

Rode

503192437

$5.85

61

Flat Washer M5

234051410

$0.44

62

Handle

503192438

$4.66

63

Torx Screw M5 X 14

250000742

$1.20

64

Circlip

293370068

$0.92

65

Compression Spring

503192436

$37.66

66

RH Block

503192427

$12.69

67

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

68

Block Guide

503189488

$37.66

69

Cam Shaft

503193086

$34.58

70

Spacer

503191713

$10.23

71

RH Spring Cam

503191190

$13.78

72

LH Spring Cam

503191668

$10.18

73

Block Guide

503189488

$37.66

74

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

75

Washer | 7415/7416. 7417/7418.

503189148

$2.72

76

Rear Axle

503191408

$67.66

77

Spacer

503193051

$15.35

78

Rear Wheel Spacer

503190428

$6.06

79

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$49.97

80

Labyrinth Seal

503190682

$5.85

81

Labyrinth Seal

503190434

$5.85

82

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$49.97

83

Washer

503190439

$5.82

84

Hex. Screw With Nylon

250000019

$1.42

85

Black, Wheel Cap

503192771

$2.28

86

Lower Shaft

503191390

$27.66

87

Bushing

503189324

$11.17

88

Washer

503192496

$0.75

89

Hex. Screw S.Grip M10 X 55

250000605

$6.18

90

Spring

503194624

$29.97

91

Not Available As Spare Part - Friction Washer

Unavailable
