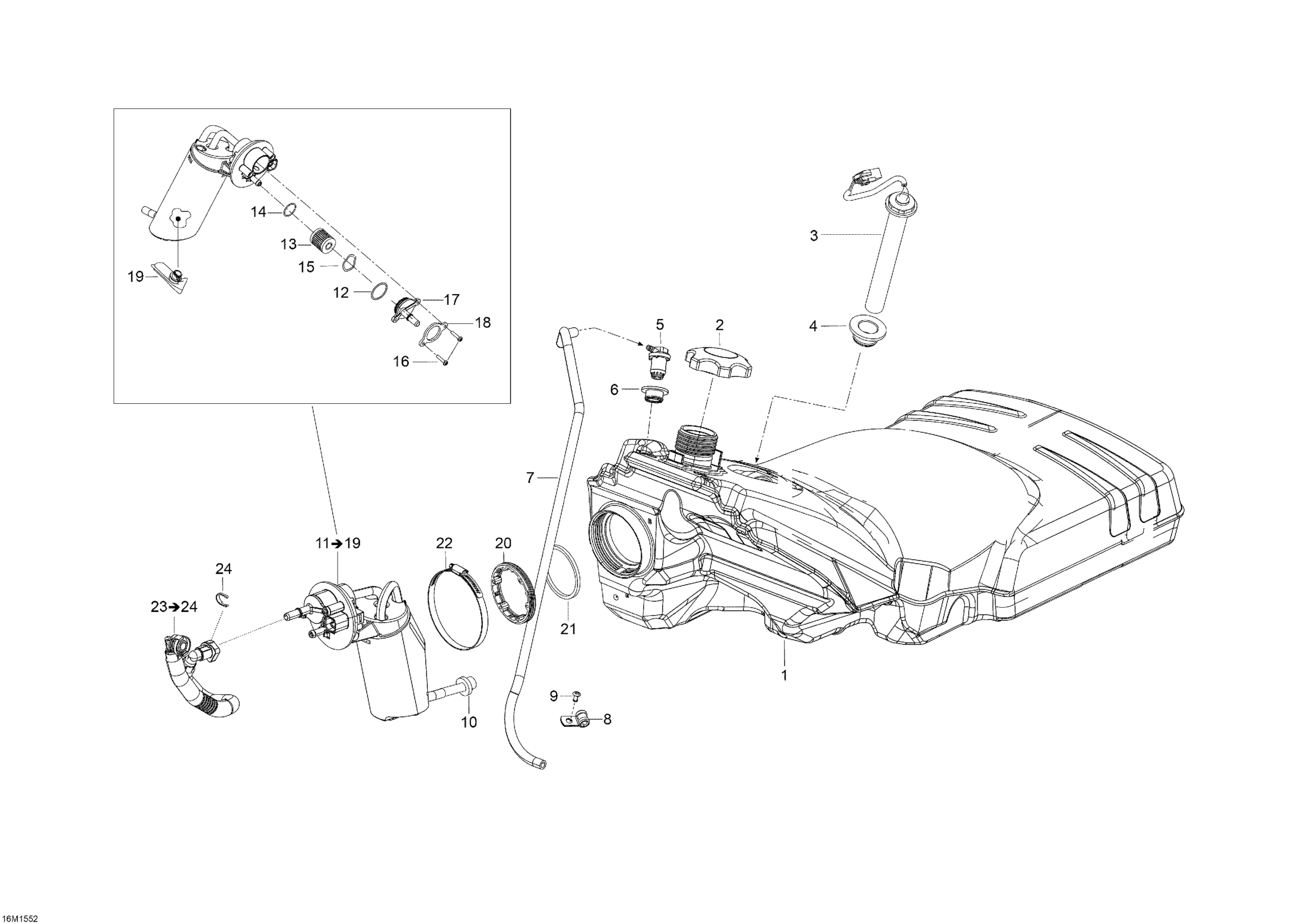

Ski-Doo Skandic SWT 900 ACE, 2015 Fuel System _16M1552 Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap

513033969

$24.60

3

Fuel Sensor

513033538

$75.34

4

Grommet

293720058

$10.67

5

Check Valve

513033842

$32.81

6

Grommet

513033596

$17.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

8

Clamp

293650256

$5.00

9

Avex Rivet

390909200

$0.28

10

Grommet

280000674

$4.28

11

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$249.97

12

O-Ring

415129509

$17.88

13

Fuel Filter

415129510

$23.10

14

O-Ring

415129511

$16.39

15

Wave Washer

415129512

$17.88

16

Screw

415129513

$8.73

17

Cover

415129685

$29.07

18

Fuel Pump Ring

415129569

Unavailable

19

Fuel Filter

415129451

$23.10

20

Ring

513033180

$17.13

21

Gasket

513033334

$22.36

22

Clamp

513033628

$20.12

23

Hose Ass'y | Includes 500 to 500a

513033582

$70.87

24

Locking Clip

513033135

$4.96
