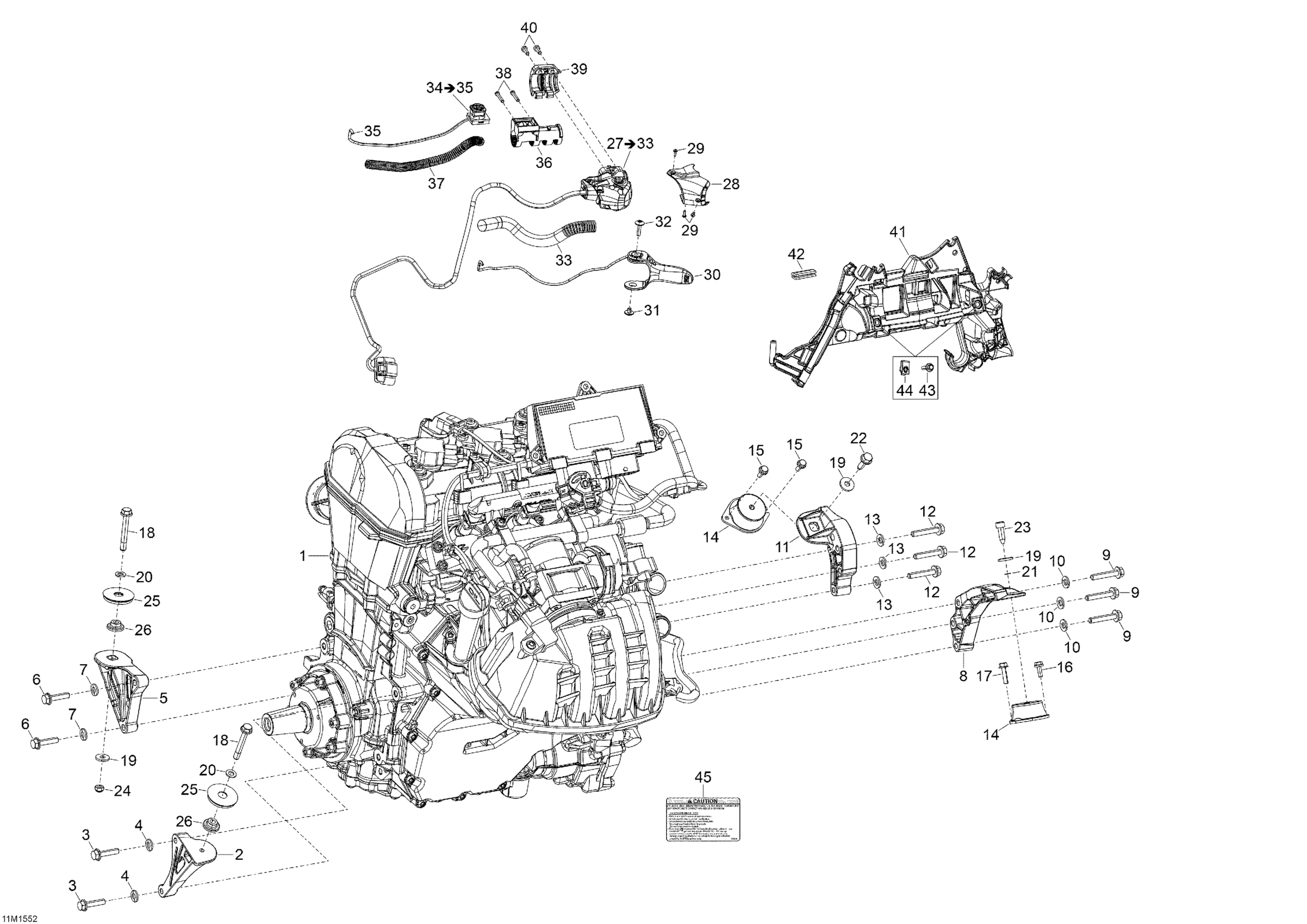

Ski-Doo Skandic SWT 900 ACE, 2015 Engine And Engine Support _11M1552 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support PTO

512061139

$23.82

3

Hex. Flange Screw M8 X 35

250000986

$1.74

4

Conical Spring Washer M8

234281474

$1.25

5

Front Support PTO

512061140

$17.66

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Conical Spring Washer M8

250200157

$2.06

8

Rear Support MAG

512061142

$27.66

9

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

10

Conical Spring Washer M8

234281474

$1.25

11

Front Support, MAG

512060663

$18.43

12

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

13

Conical Spring Washer M8

250200157

$2.06

14

Rubber Mount

512060729

$69.97

15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

17

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

18

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

19

Yellow, Washer

503183200

$3.00

20

Flat Washer With Teflon 8 mm

250200008

$3.12

21

O-Ring

293300123

$1.00

22

Cone Screw, M8 X 30

250000257

$1.72

23

Cone Screw, M8 X 25

250000639

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

Engine Stopper

512061536

$18.43

26

Spacer

512060285

$17.66

27

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$278.43

28

Cap

512060862

$11.57

29

Torx Screw M2.9 x 9.5

250000623

$3.11

30

Handle Ass'y kit

415130047

$96.89

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Torx Screw M5 X 20

250000528

$1.74

33

Protector Tube

515177716

$4.42

34

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

35

Male Terminal

515175232

$1.49

36

Switch Support

512061453

$8.38

37

Protector Tube

515177716

$4.42

38

Torx Screw #8-18

250000263

$1.02

39

Front Housing

512060987

$8.34

40

Torx Screw M5 X 14

250000632

$6.18

41

Module Support

512060994

$14.54

42

Protection Trim | LTD

271000110

Unavailable

43

Panel Nut M5 X 0.8

250000958

$3.48

44

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

45

Caution Decal, Oil Level

516005521

Unavailable
