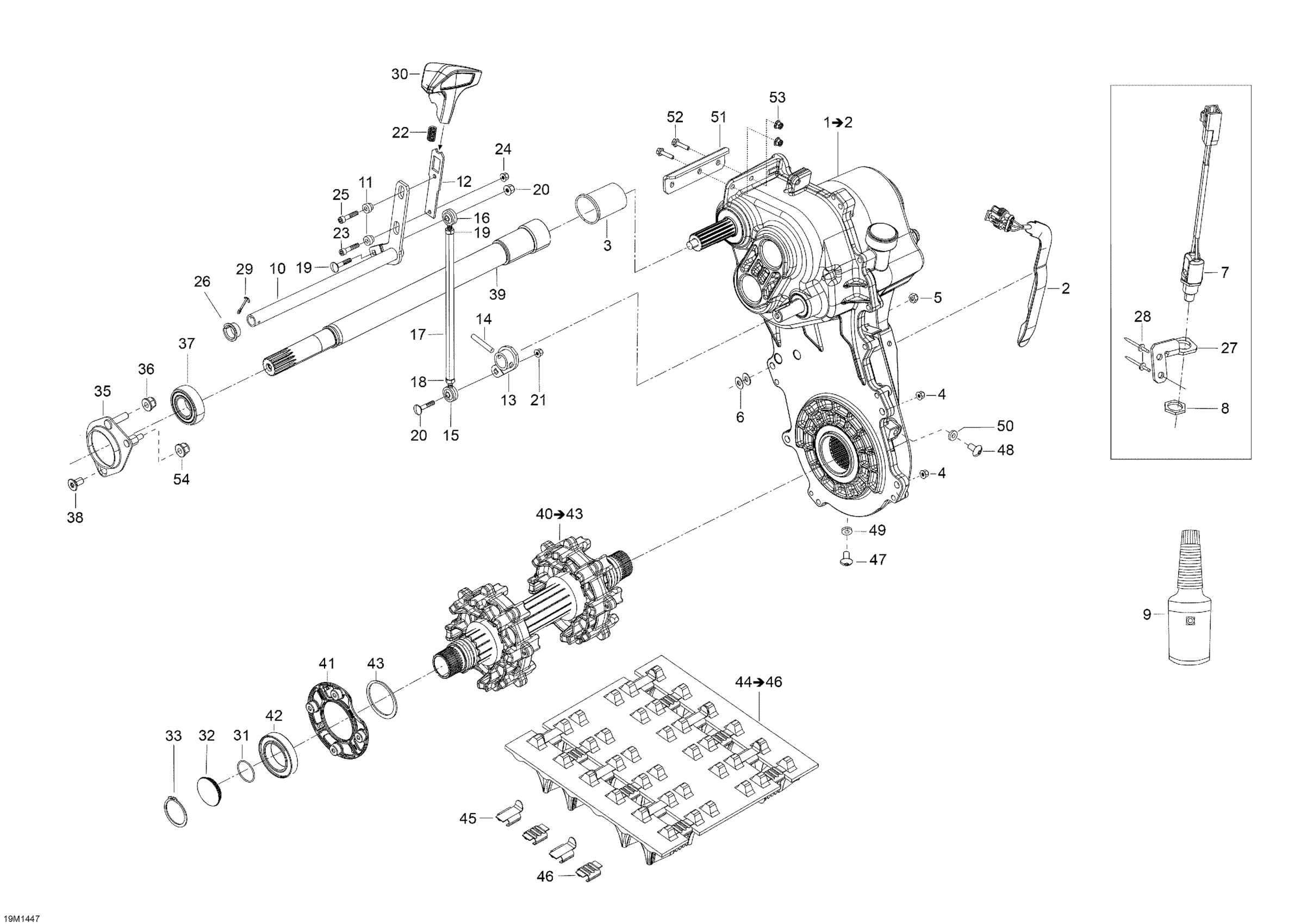

Ski-Doo Skandic SWT 600HOETEC XU, 2014 05- Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2.00

2

Rotation Sensor

504152896

$37.99

3

Protective Rubber

504153054

$17.49

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership

503193095

Unavailable

7

Switch Ass'y

515176472

$72.99

8

Brass Nut

250000373

$7.51

9

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

10

Lever Shifter

504153288

$154.99

11

Sleeve

504152787

$28.49

12

Shifter Arm

504153287

$51.99

13

Lever

504153278

$81.99

14

Pin

41012

$6.39

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

16

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

17

ROD - Call your local BRP dealership

504152836

Unavailable

18

Hex. Nut M6

232061414

$0.53

19

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

21

Elastic Stop Nut M6

232561434

$1.99

22

Spring

504152882

$38.99

23

Socket Screw M5 X 25

205052544

$1.68

24

Flange Elastic Nut M5

233251434

$2.00

25

Forming Screw M5 x 16

250000676

$1.01

26

Bushing

504152890

$42.49

27

Sensor Bracket

504152902

$17.99

28

Rivet Hucklok

293150163

$2.99

29

Cotter Pin

250400035

$2.11

30

Handle

504152837

$80.99

31

O-Ring

293300122

$2.11

32

Magnetic Cap

504152619

$23.49

33

Circlip

504152572

$6.95

35

Bearing Housing

504153187

$29.49

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Ball Bearing

293350074

$38.49

38

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

39

Counter Shaft

504153070

$248.99

40

Drive Axle Ass'y | Includes 3100 to 3100e

504153585

$593.49

41

Retaining Ring

504153886

$21.99

42

Ball Bearing

293350059

$30.99

43

Shim

504153207

$12.49

44

Track Ass'y 600 X 3968 X 32 X 64 | Includes 3200 to 3200b

504153928

$1.00

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Allen Screw M8 x 10

619230037

$6.03

48

Allen Screw M10 x 16

619230038

$4.02

49

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

50

Seal Ring

619230047

$4.02

51

EXTENTION PLATE - Call your local BRP dealership | Model SWT

518327029

Unavailable

52

Hex. Flange Screw M6 X 20

207662044

$2.00

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
