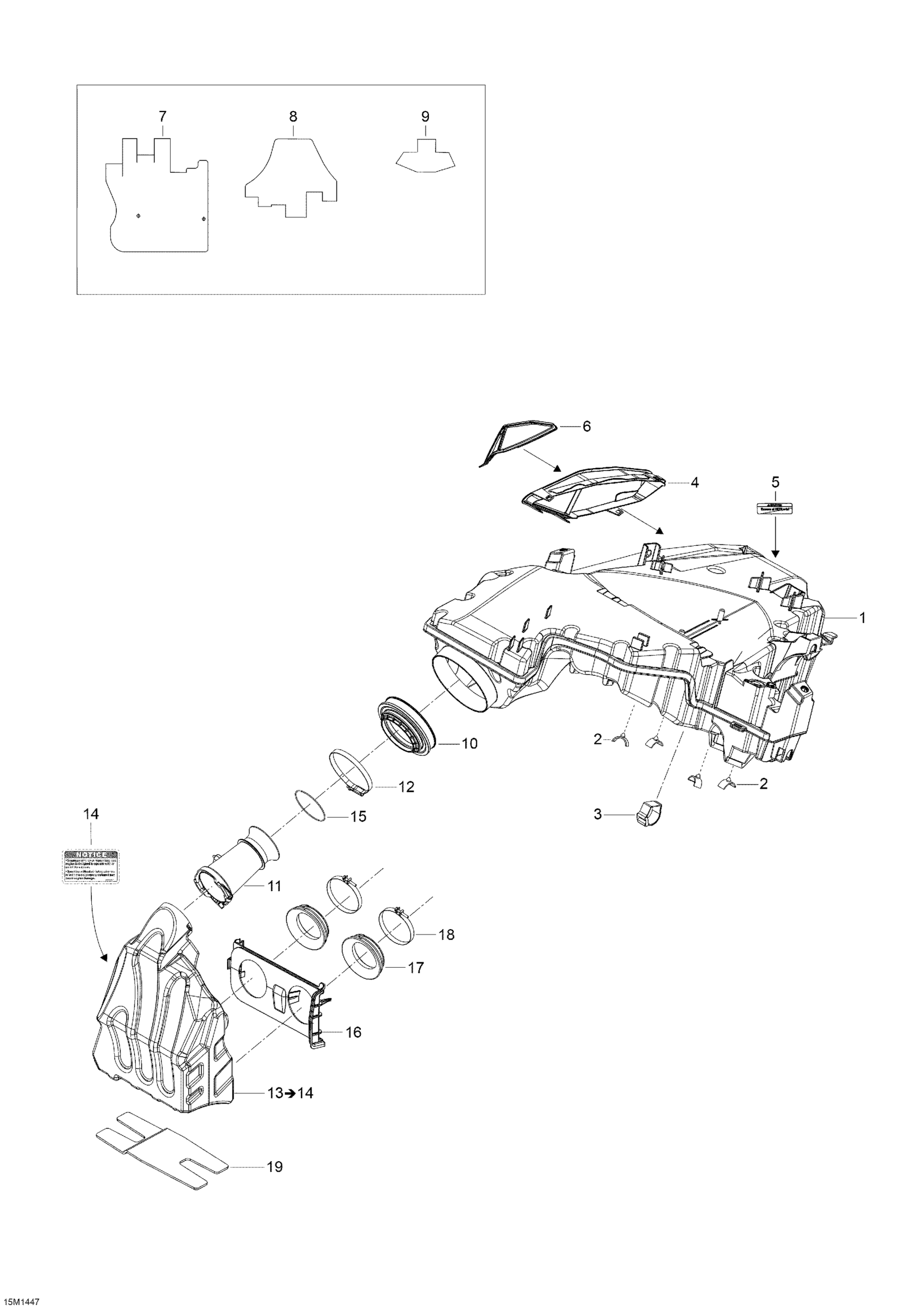

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Air Intake System Diagram

#

Description
Price

1

Chamber Ass'y

508000790

$185.79

2

Stopper

508000537

$7.13

3

Velcro Strip

508000820

$7.13

4

Adaptor

508001020

$29.07

5

Caution Label, Air Intake

516004651

Unavailable

6

Air Filter

508000609

$44.75

7

Heat Shield

508000675

$9.07

8

Heat Shield

508000676

$9.07

9

Heat Shield

508000677

$7.13

10

Boot

508000548

$22.36

11

Flute

508000662

$13.24

12

Norma Gear Clamp

514052983

$14.90

13

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$79.07

14

Notice Decal, Air Intake Silencer

516005876

$4.00

15

O-Ring

293300115

$3.01

16

Plate Adapter

508000613

$17.88

17

Air Intake Adapter

508000614

$17.88

18

Gemi Clamp

508000346

$9.03

19

Insulated Foam

508000739

$8.13
