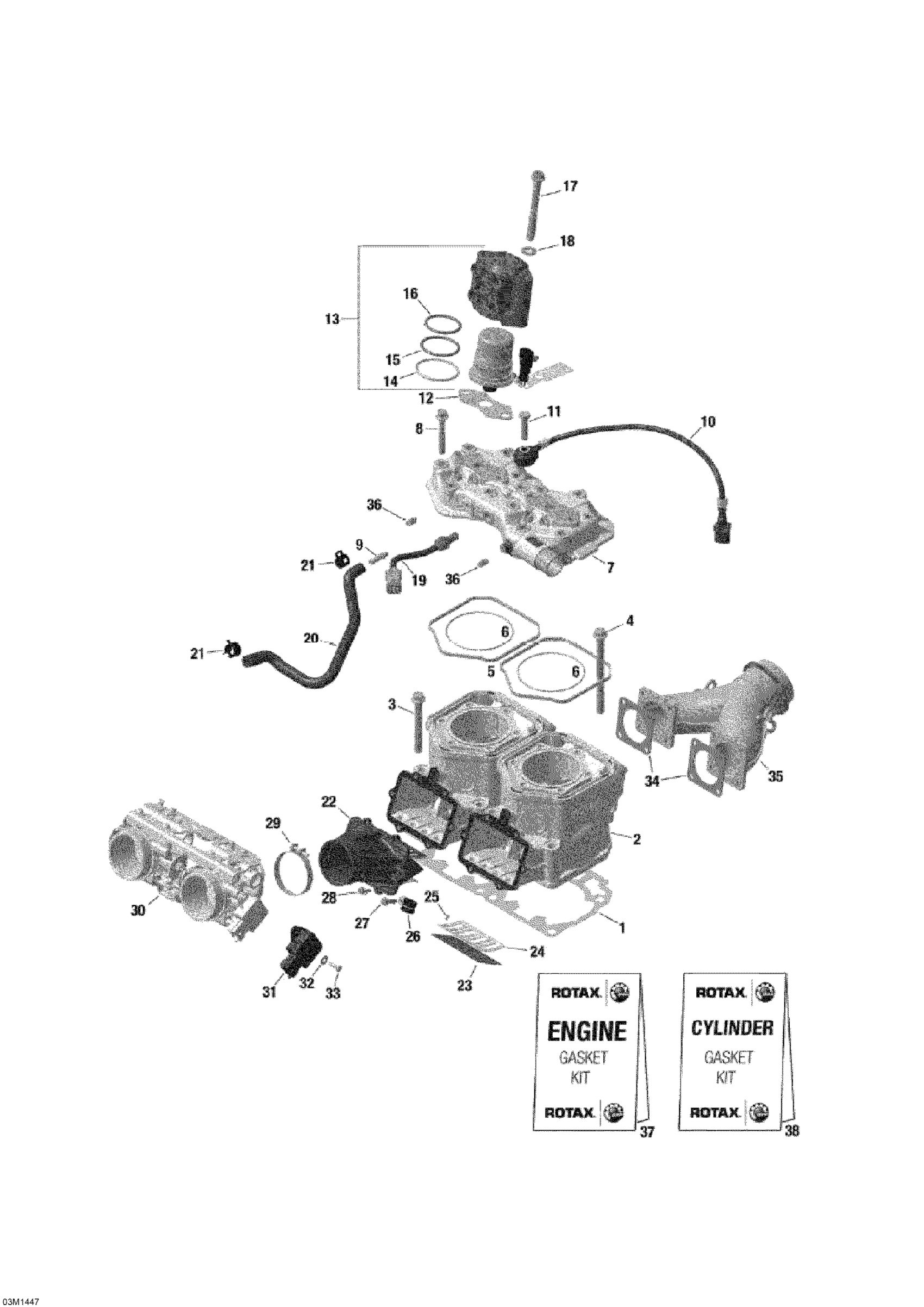

Ski-Doo Skandic SWT 600HOETEC XU, 2014 Cylinder Head Diagram

Gasket 0.5 mm

420431160

$16.39

Gasket 0.6 mm

420431161

$22.36

Gasket 0.7 mm

420431162

$22.36

Double Gasket 0.8 mm

420431163

$22.36

Cylinder

420623263

$467.88

Cylinder

420623263

$467.88

Hex. Collar Screw

420640524

$11.18

Hex. Collar Screw

420640534

$13.18

Rubber Ring

420931590

$5.52

O-Ring This part replaces 420850540.

293300026

$3.06

Head Cylinder Cover

420623299

$271.61

Hex. Screw M8 X 56.5

420941627

$8.09

Hose Nipple

420924724

$14.10

Noise Sensor

270000484

$75.34

Hex. Screw M8 X 35

207083544

$1.06

Gasket

420430930

$4.46

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$330.57

Crush Ring

415129497

$7.16

O-Ring

415129498

$12.13

O-Ring

415129499

$6.61

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

Flat Washer M10 This part replaces 420927410.

420927411

$2.00

Temperature Sensor This part replaces 420664508.

420664509

$138.03

Female Terminal Housing, 2 Circuits

515175670

$7.61

Female Terminal

278000632

$1.94

Molded Hose

420460867

$17.13

Clamp

420853511

$7.09

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$221.61

Reed Pedal

420924680

$36.54

Reed Pedal Stop

420924695

$13.18

Phillips Screw M3 X 5

420941215

$1.63

Clamp

420851250

$9.03

Tapping Screw M5 X 22

420841550

$1.63

Taptite Screw M5 X 16

420941928

Unavailable

Clamp

420851065

$13.18

Throttle Body

420889201

$1,191.76

Position Sensor

420866120

$89.52

Flat Washer 4 mm, Stainless

234041600

$1.04

Phillips Screw M4 X 16

208641660

$0.85

Gasket

420850552

$7.69

Exhaust Manifold This part replaces 420673420.

420673421

$261.91

Hose Nipple

420924724

$14.10

Gasket Set, Engine

420889924

$179.07

Gasket Set, Cylinder

420889928

$154.45
