Description

Price

1

Black, Snow Guard long

520001409

$79.99

2

Plate

520001022

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Yellow, RH Reflector

520001600

$33.99

14

Yellow, LH Reflector

520001601

$33.99

15

Red, Lateral Reflector

705003412

$15.49

16

Tool Kit | Includes 20 To 28

529000065

$55.99

17

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

18

Set Key, 16/21 mm

529000046

$14.49

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Was 412500100 Rope-Starter

219704403

$158.99

21

Starter Grip

529000060

$14.15

22

Spacing Tool

520001142

$10.52

23

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

24

Wrench

M34017

Unavailable

25

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

26

Latch

520000528

$7.69

27

Hitch Ass'y | Model- North America

M5344152

Unavailable

28

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

29

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

30

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

31

Cotter Pin

41031

$7.65

32

Plate

520000727

$36.99

33

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

34

Bolt Carriage M8 X 40

207784044

$1.15

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Cover | Model-T3

28056

$5.89

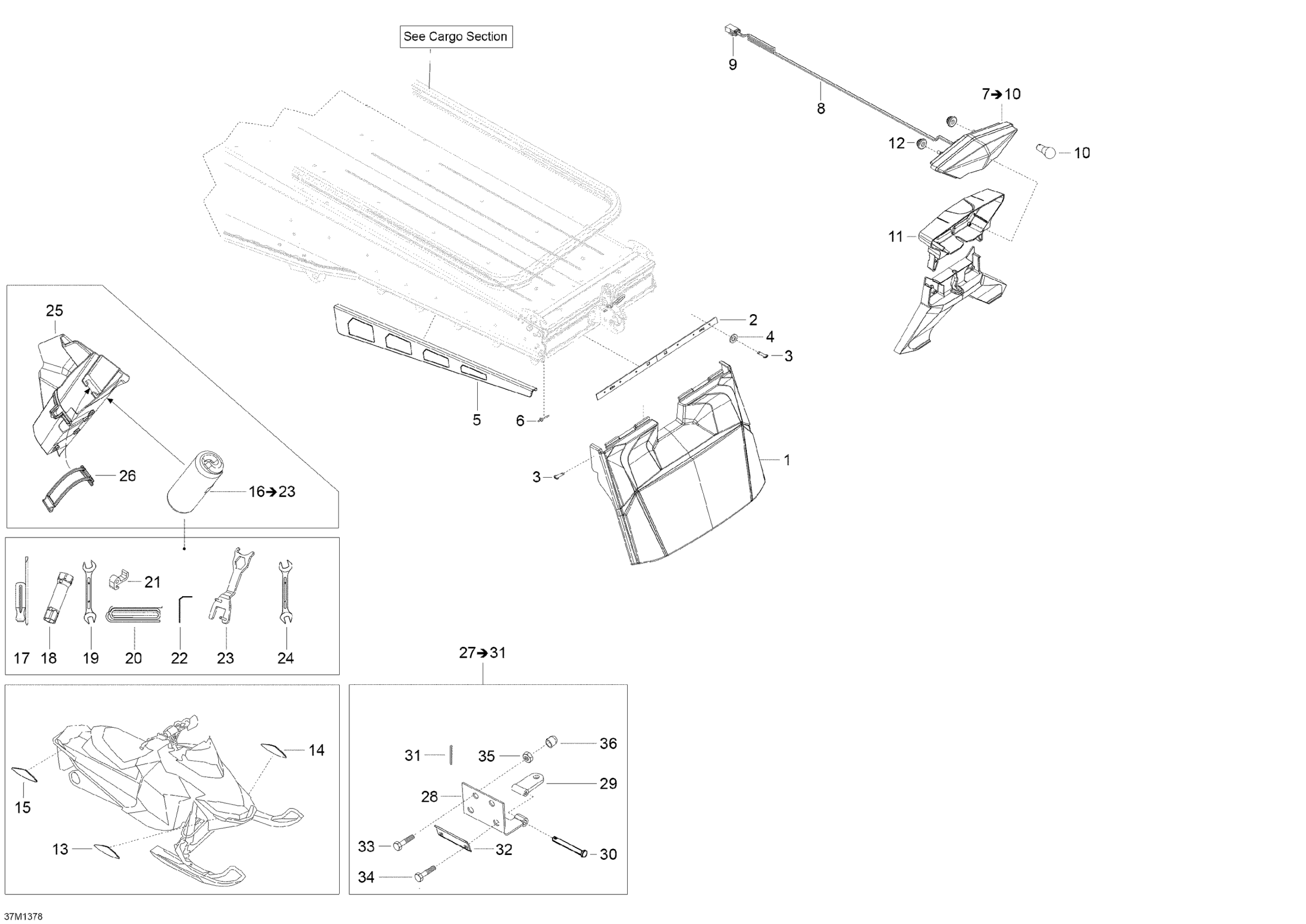

Ski-Doo Skandic SWT 600HOETEC XU, 2013 09- Utilities Diagram

Black, Snow Guard long

Plate

Forming Screw M5 x 16

Washer M5

RH Protector

LH Protector

Rivet Hucklok

Rear Light | Includes 200 to 200a

Rear Wiring Harness

Male Housing, 3 Circuits

Bulb

Rear Light Cover

Stopper Rubber

Yellow, RH Reflector

Yellow, LH Reflector

Red, Lateral Reflector

Tool Kit | Includes 20 To 28

SCREW DRIVER - Call your local BRP dealership

Set Key, 16/21 mm

FORK WRENCH, 10/13 MM - Call your local BRP dealership

Was 412500100 Rope-Starter

Starter Grip

Spacing Tool

WRENCH SUSPENSION - Call your local BRP dealership

Wrench

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

Latch

Hitch Ass'y | Model- North America

Fitting Plate | Model- North America This part replaces M5344151.

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

PIN-RETAINER - Call your local BRP dealership | North America

Cotter Pin

Plate

Carriage Bolt, M8 X 25 | XXC

Bolt Carriage M8 X 40

Hex. Flange Elastic Nut M8

Cover | Model-T3
