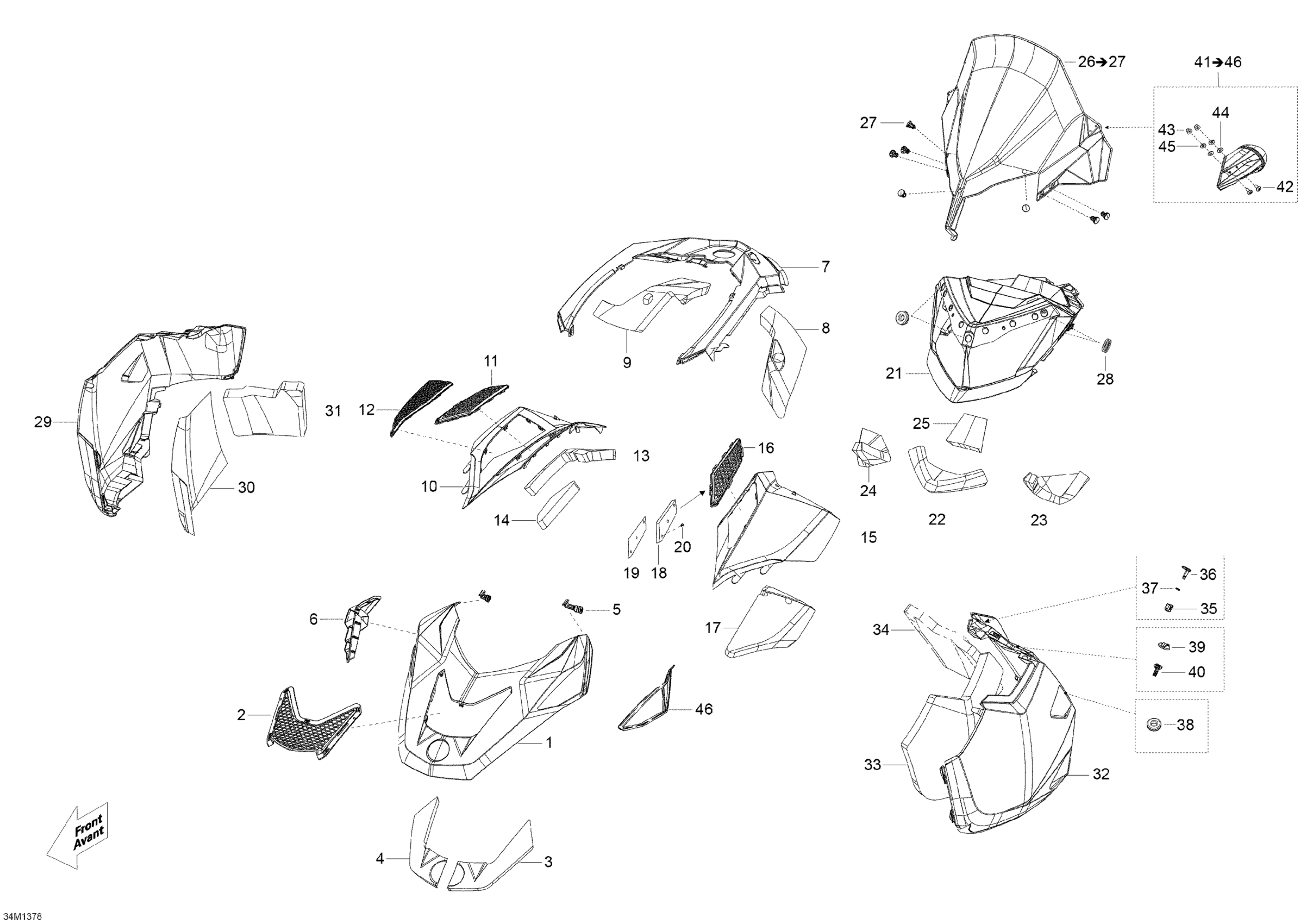

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Hood, Windshield And Console Diagram

#

Description
Price

1

Yellow Hood | Yellow 2000

517305523

$249.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Scoop Grille

517306980

$37.99

7

Black, Console

517304820

$179.99

8

INSULATOR - Call your local BRP dealership

517304317

Unavailable

9

Insulator

517304318

$48.99

10

Yellow, RH Side Access Panel | Yellow 2000

517305525

$254.99

11

RH Access Panel Grille

517304015

$36.99

12

RH Lower Acces Grille

517304016

$31.99

13

Insulator

517304311

$61.99

14

Insulator

517304312

$31.99

15

Yellow, LH Side Access Panel | Yellow 2000

517305527

$254.99

16

LH Access Panel Grille

517303893

$36.99

17

Insulator

517304313

$61.99

18

Insulator

517305311

$14.49

19

Grille plate

502007312

$31.99

20

Black, Dart

414644300

$0.98

21

Indicator Support

517304272

$179.99

22

Insulator

517304314

$62.99

23

Insulator

517304315

$31.99

24

Insulator

517304316

$31.99

25

Insulator

517304319

$31.99

26

Windshield Ass'y

860201000

$209.99

27

Button

517304744

$2.19

28

Grommet

517303756

$4.09

29

Black, RH Side Panel

517306977

$249.99

30

Foam Right

517304709

$53.99

31

RH Rear Foam

517304310

$60.99

32

Black, LH Side Panel

517306979

$249.99

33

Foam LH

517304707

$53.99

34

LH Rear Foam

517304309

$60.99

35

Handle Fastener Quarter-Turn

517304297

$16.99

36

Quarter-Turn Handle

517304296

$16.99

37

Locking Plate

517304538

$4.59

38

Grommet

517303756

$4.09

39

Black Latch Kit | Includes 390 to 400

860200239

$16.88

40

Latch-Panel

517306057

$24.49

41

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

42

Torx Truss Screw M6 X 16

250000721

$1.69

43

Domed Nut M6

232361493

$2.11

44

Rubber Washer 5 mm

250200024

$2.19

45

Washer

20117

$6.39

46

Air Filter

508000609

$48.49
