Description

Price

1

Frame | Includes 1 To 29

518326930

Unavailable

2

Module E | Includes 2 To 12

518328186

$989.99

3

RH Member

518326795

$284.99

4

LH Member

518326796

$229.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Leg Bushing

505072690

$12.49

11

Muffler support plate

518326642

Unavailable

12

Rivet Hucklok

293150163

$2.99

13

Radiator

509000975

$826.49

14

Fastening rail

518326107

$18.49

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Seat Box Bracket

518327457

$31.99

19

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.49

22

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Adhesive Patch

518325560

$4.69

24

Rear Profile

518328749

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Socket Screw | Not Shown

205061244

$2.11

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Adhesive Patch

518325560

$4.69

29

Gearbox Front Plate

518326123

$17.49

30

Gearbox Rear Plate

518326124

$17.99

31

Pop Rivet 3/16"

390402200

$0.35

32

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

33

Hemlock Rivet, 6.5 mm

293150119

$4.29

34

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

35

FOOTBOARD SUPPORT TUBE, LH - Call your local BRP dealership

518325641

Unavailable

35

FOOTBOARD SUPPORT TUBE, RH - Call your local BRP dealership

518325642

Unavailable

36

Avex Rivet

390909100

$0.30

37

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

38

Footrest

520000492

$19.99

39

Avex Rivet

390909100

$0.30

40

TOE HOOK LH - Call your local BRP dealership

518327445

Unavailable

41

Clinch Nut M6 Hexsert

605636003

$4.23

42

TOE HOOK RH - Call your local BRP dealership

518327447

Unavailable

43

Clinch Nut M6 Hexsert

605636003

$4.23

44

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Torx Truss Screw M6 X 16

250000721

$1.69

47

Spring Bracket

514054846

$4.69

48

Avex Rivet

390909200

$0.30

49

S Module | Includes 300 to 300a

518326213

$839.99

50

Avex Rivet

390909200

$0.30

51

Hexagonal Head Screw

210262050

$2.11

52

Hex. Flange Screw M6 X 25

207662544

$0.64

53

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

Hemlock Rivet, 6.5 mm

293150119

$4.29

56

Hex. Flange Screw M6 X 16

207661644

$0.74

57

SUPPORT PLATE - Call your local BRP dealership

518325620

$114.99

58

Avex Rivet

390909100

$0.30

59

Avex Rivet

390909200

$0.30

60

PULLEY SUPPORT - Call your local BRP dealership

518326714

Unavailable

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

62

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

63

Front Member Ass'y | Includes 700 to 700d

518326754

$729.99

64

LH Bumper Fastener

502007077

$54.99

64

RH Bumper Fastener

502007078

$54.99

65

Avex Rivet

390909200

$0.30

66

Hex. Flange Screw M6 X 20

207662044

$2.00

67

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

68

Flat Washer

224061201

$1.37

69

Hex. Flange Screw M6 X 20

207662044

$2.00

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

71

Hex. Flange Screw M6 X 20

207662044

$2.00

72

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

73

Avex Rivet

390909200

$0.30

74

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

75

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

76

Not Available As Spare Part - Friction Washer

Unavailable

77

Upper Lateral Column Support

518325114

$22.49

78

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

80

Center Column Support

518325115

$22.49

81

Hex Flange Screw M6 x 25

250000522

$1.01

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

83

Adhesive Patch

518325560

$4.69

84

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

85

Brake Hose Cover | Package SWT

518327035

$13.99

86

Hemlock Rivet, 6.4 mm

293150174

$7.86

87

Avex Rivet

390909200

$0.30

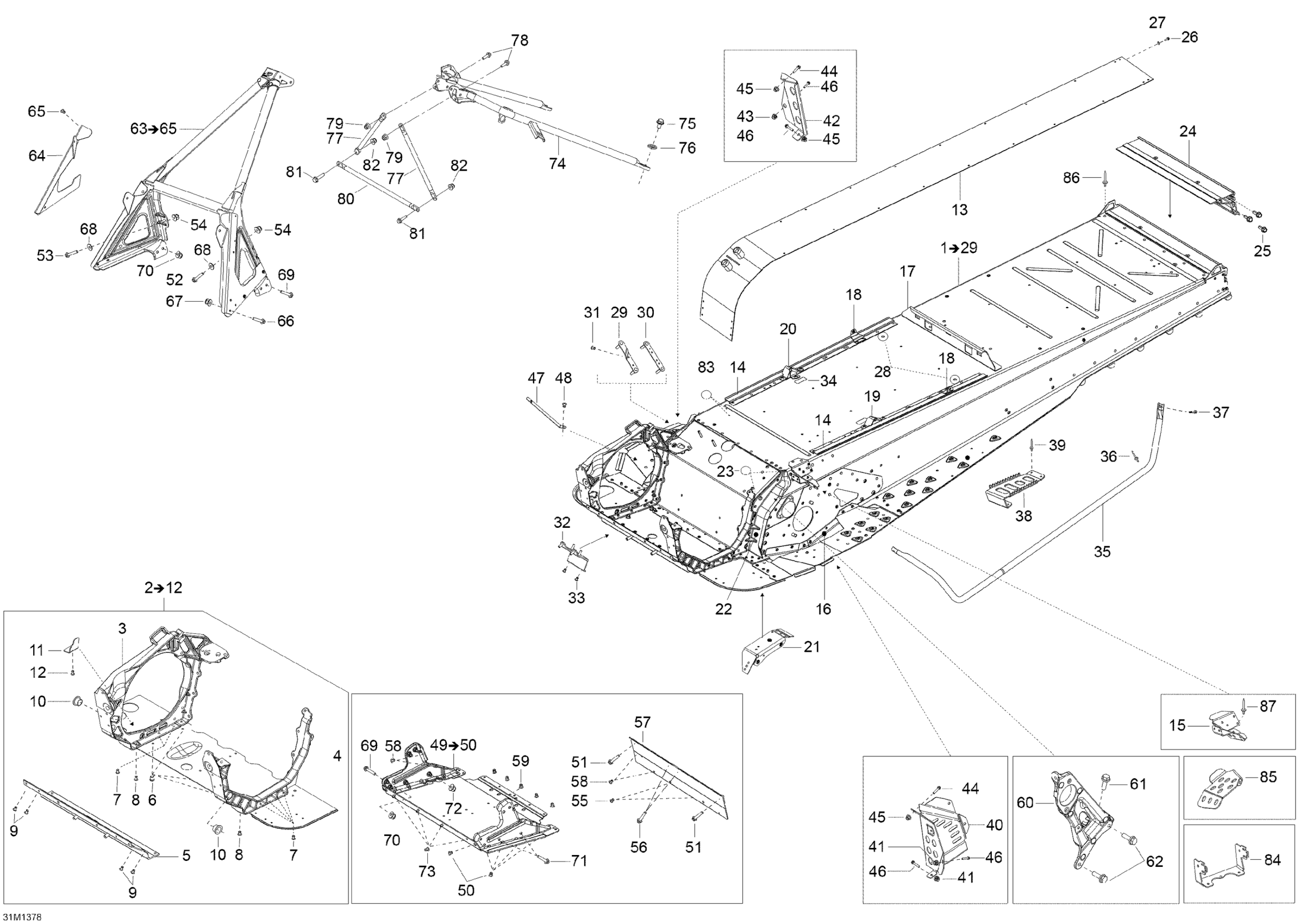

Ski-Doo Skandic SWT 600HOETEC XU, 2013 09- Frame Diagram

Frame | Includes 1 To 29

Module E | Includes 2 To 12

RH Member

LH Member

Front Member

Clinch Nut Hexsert M8

Avex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

Muffler support plate

Rivet Hucklok

Radiator

Fastening rail

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Seat Box Bracket

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

Clinch Nut plate

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Adhesive Patch

Rear Profile

Hex. Flange Screw M8 X 25, Scotch Grip

Socket Screw | Not Shown

Not Available As Spare Part - Friction Washer

Adhesive Patch

Gearbox Front Plate

Gearbox Rear Plate

Pop Rivet 3/16"

MAG Engine Support | Includes 10a to 10a1

Hemlock Rivet, 6.5 mm

RUBBER COVER - Call your local BRP dealership

FOOTBOARD SUPPORT TUBE, LH - Call your local BRP dealership

FOOTBOARD SUPPORT TUBE, RH - Call your local BRP dealership

Avex Rivet

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

Footrest

Avex Rivet

TOE HOOK LH - Call your local BRP dealership

Clinch Nut M6 Hexsert

TOE HOOK RH - Call your local BRP dealership

Clinch Nut M6 Hexsert

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

Hex. Flange Elastic Nut M6 x 1.0

Torx Truss Screw M6 X 16

Spring Bracket

Avex Rivet

S Module | Includes 300 to 300a

Avex Rivet

Hexagonal Head Screw

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6 x 1.0

Hemlock Rivet, 6.5 mm

Hex. Flange Screw M6 X 16

SUPPORT PLATE - Call your local BRP dealership

Avex Rivet

Avex Rivet

PULLEY SUPPORT - Call your local BRP dealership

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 30, Scotch Grip

Front Member Ass'y | Includes 700 to 700d

LH Bumper Fastener

RH Bumper Fastener

Avex Rivet

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Avex Rivet

Upper Support Tube Welded M6 This part replaces 518326103.

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership
