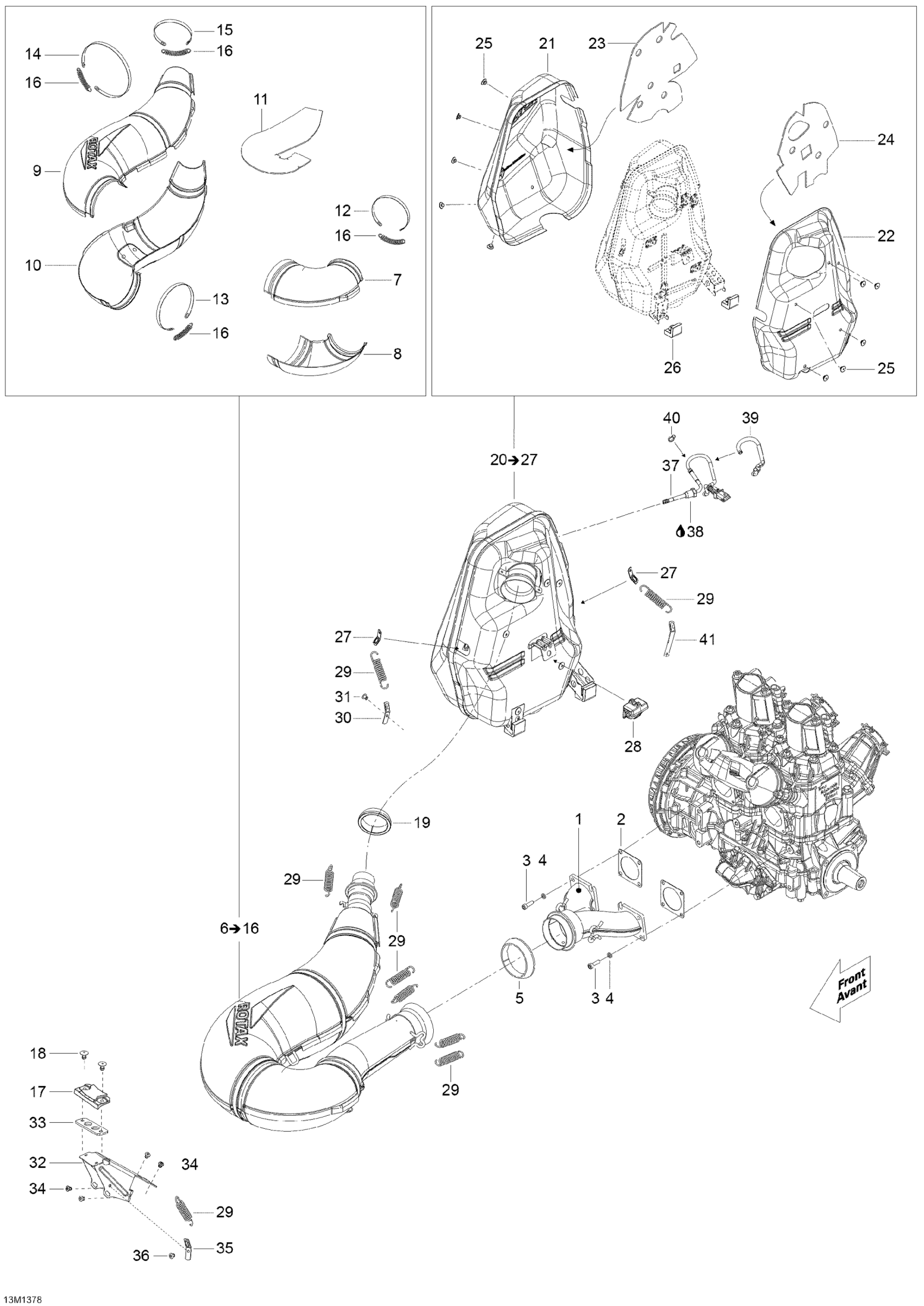

Ski-Doo Skandic SWT 600HOETEC XU, 2013 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$261.91

2

Gasket

420850552

$7.69

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

4

Washer

514053953

$0.73

5

Exhaust Gasket

514053487

$25.34

6

Tuned Pipe Ass'y

514055027

$626.84

7

Front Upper Half Enveloppe

514054992

$37.28

8

Front Lower Half Enveloppe

514054993

$37.28

9

Rear Upper Half Enveloppe

514055039

$65.64

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

11

Insulating Wool

514054487

$18.63

12

Retaining Strap

514054408

$10.24

13

Retaining Strap

514054409

$10.24

14

Retaining Strap

514054410

$10.24

15

Retaining Strap

514053499

$8.10

16

Spring

514053643

$6.01

17

Bumper

514054275

$14.21

18

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

19

Exhaust Gasket

514054174

$26.84

20

Muffler Ass'y | Includes 400 to 400f

514055025

$698.48

21

RH Deflector

514054985

$52.96

22

LH DEFLECTOR - Call your local BRP dealership

514054528

Unavailable

23

RH Insulating Wool

514054711

$17.88

24

LH Insulating Wool

514054299

$18.63

25

Pop Rivet 3/16”

390910000

$0.55

26

Lower Stopper

514054529

$17.13

27

Spring Bracket

514054155

Unavailable

28

Upper Stopper

514054606

$17.13

29

Spring

514054226

$6.01

30

Spring Bracket

514054522

$6.09

31

Pop Rivet 3/16"

390402200

$0.30

32

Exhaust Muffler Support

514054767

$18.63

33

Riser Shim

514054806

Unavailable

34

Hemlock Rivet, 6.5 mm

293150096

$3.07

35

Spring Bracket

514053393

$11.24

36

Pop Rivet 3/16"

390402200

$0.30

37

Temperature Sensor

514054856

$137.28

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Tubing 6 Mm 3000Mm Long

219704425

$12.75

40

Tie Wrap 94 mm | 4X4

293750001

$0.96

41

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable
