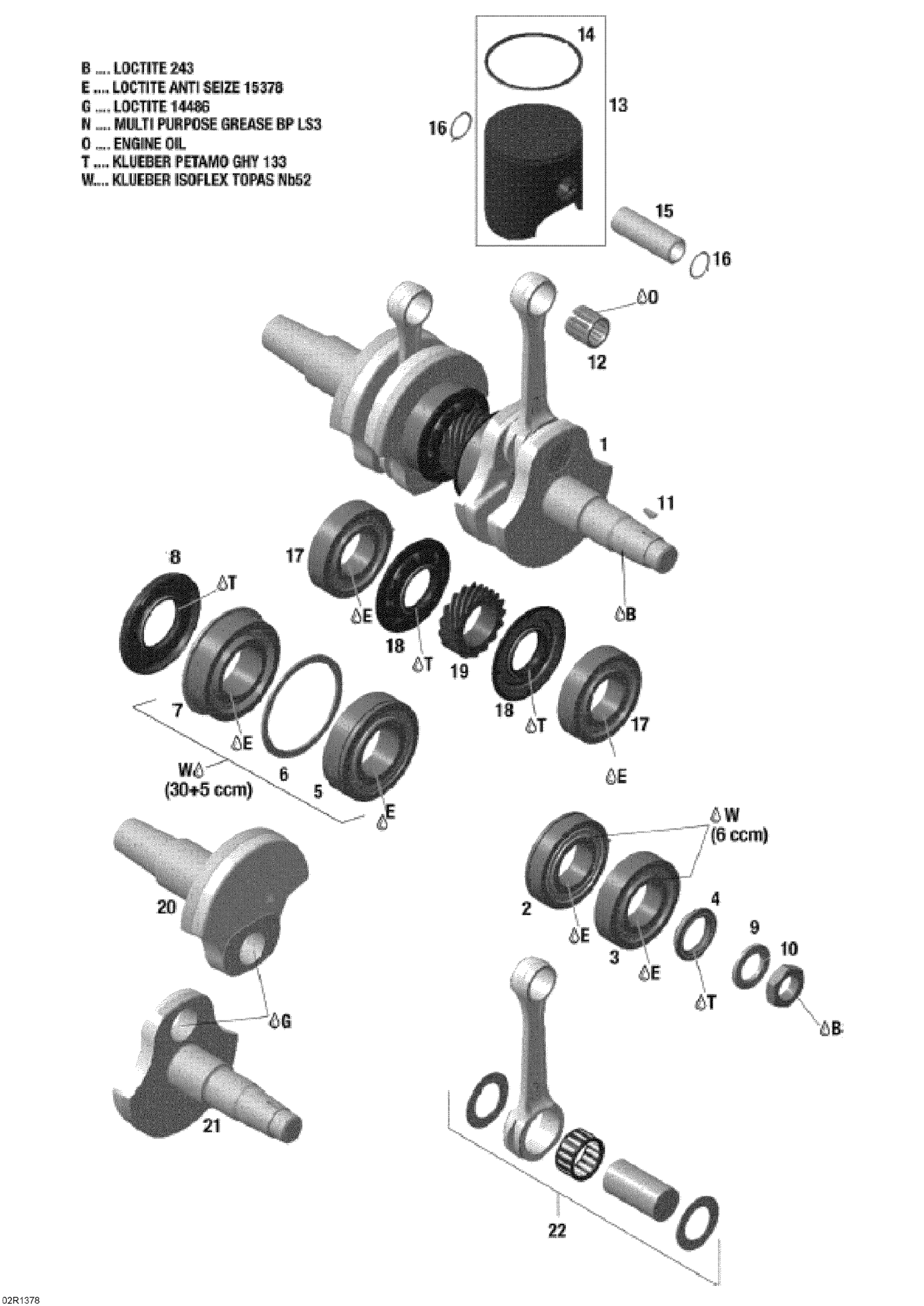

Ski-Doo Skandic SWT 600HOETEC XU, 2013 01- Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1.00

2

Ball Bearing

420832175

Unavailable

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Ball Bearing | With drive pin

420832602

$104.99

6

Washer

420926190

$11.63

7

Ball Bearing | With drive pin

420832702

$89.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Lock Washer, 22 mm

420945759

$1.90

10

Hex. Nut, M22 X 1.5

420842239

$17.53

11

Woodruff Key

420246015

$3.17

12

Needle Bearing

420832445

$27.49

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$228.99

14

Semi-Trapez Ring

420815295

$63.99

15

Piston Pin

420916412

$30.99

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal

420931455

$35.99

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, PTO Side

420890958

$313.99

22

Rod Repair Kit, MAG Side

420890959

$313.99

B

Loctite 243, 10 ml

293800060

$21.49

E

Not Available As Spare Part - Friction Washer

Unavailable

G

Not Available As Spare Part - Friction Washer

Unavailable

N

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

T

Not Available As Spare Part - Friction Washer

Unavailable

W

Not Available As Spare Part - Friction Washer

Unavailable
