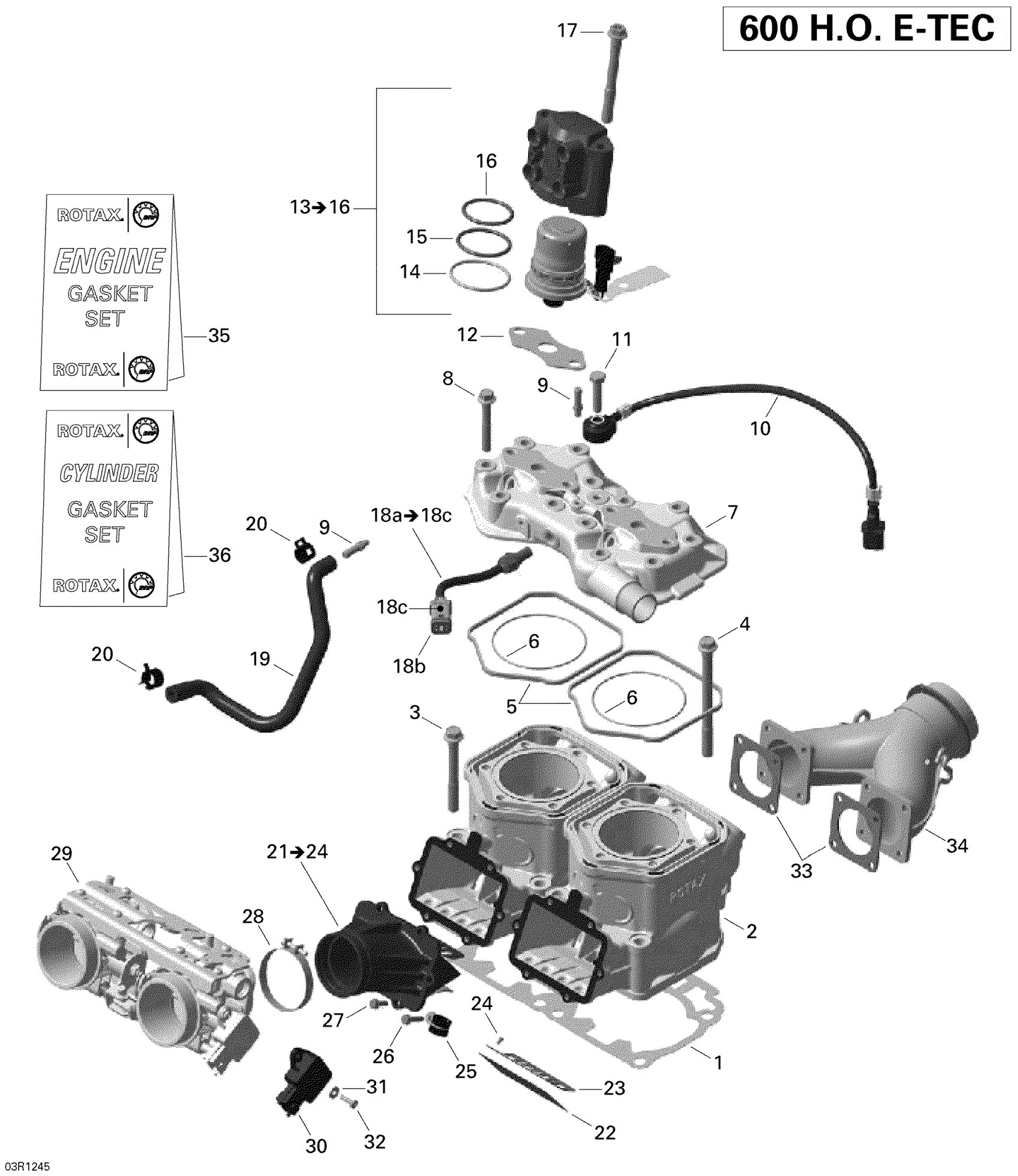

Ski-Doo Skandic SWT 600 H.O. E-TEC, 2012 01- Cylinder Head Diagram

Gasket 0.5 mm

420431160

$17.53

Gasket 0.6 mm

420431161

$23.49

Gasket 0.7 mm

420431162

$23.49

Double Gasket 0.8 mm

420431163

$23.49

Cylinder

420623263

$457.99

Cylinder

420623263

$457.99

Hex. Collar Screw

420640524

$13.16

Hex. Collar Screw

420640534

$14.28

Rubber Ring

420931590

$6.19

O-Ring This part replaces 420850540.

293300026

$3.39

HEAD CYLINDER COVER - Call your local BRP dealership This part replaces 420623294.

420623296

Unavailable

Hex. Screw M8 X 56.5

420941627

$8.57

Hose Nipple

420924724

$14.83

Noise Sensor

270000484

$82.99

Hex. Screw M8 X 35

207083544

$1.15

Gasket

420430930

$4.99

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

Crush Ring

415129497

$7.99

O-Ring

415129498

$13.49

O-Ring

415129499

$7.39

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

Temperature Sensor This part replaces 420664508.

420664509

$149.99

Female Terminal Housing, 2 Circuits

515175670

$8.39

Female Terminal

278000632

$2.09

Molded Hose

420460867

$19.99

Clamp

420853511

$7.51

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$232.99

Reed Pedal

420924680

$38.99

Reed Pedal Stop

420924695

$15.28

Phillips Screw M3 X 5

420941215

$1.69

Clamp

420851250

$10.33

Tapping Screw M5 X 22

420841550

$1.69

Taptite Screw M5 X 16

420941928

Unavailable

Gemi Clamp

293650158

$8.57

Throttle Body

420889201

$1.00

Position Sensor

420866120

$98.99

Flat Washer 4 mm, Stainless

234041600

$1.15

Phillips Screw M4 X 16

208641660

$0.90

Gasket

420850552

$8.85

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

Gasket Set, Engine

420889924

$190.49

Gasket Set, Cylinder

420889928

$163.99
