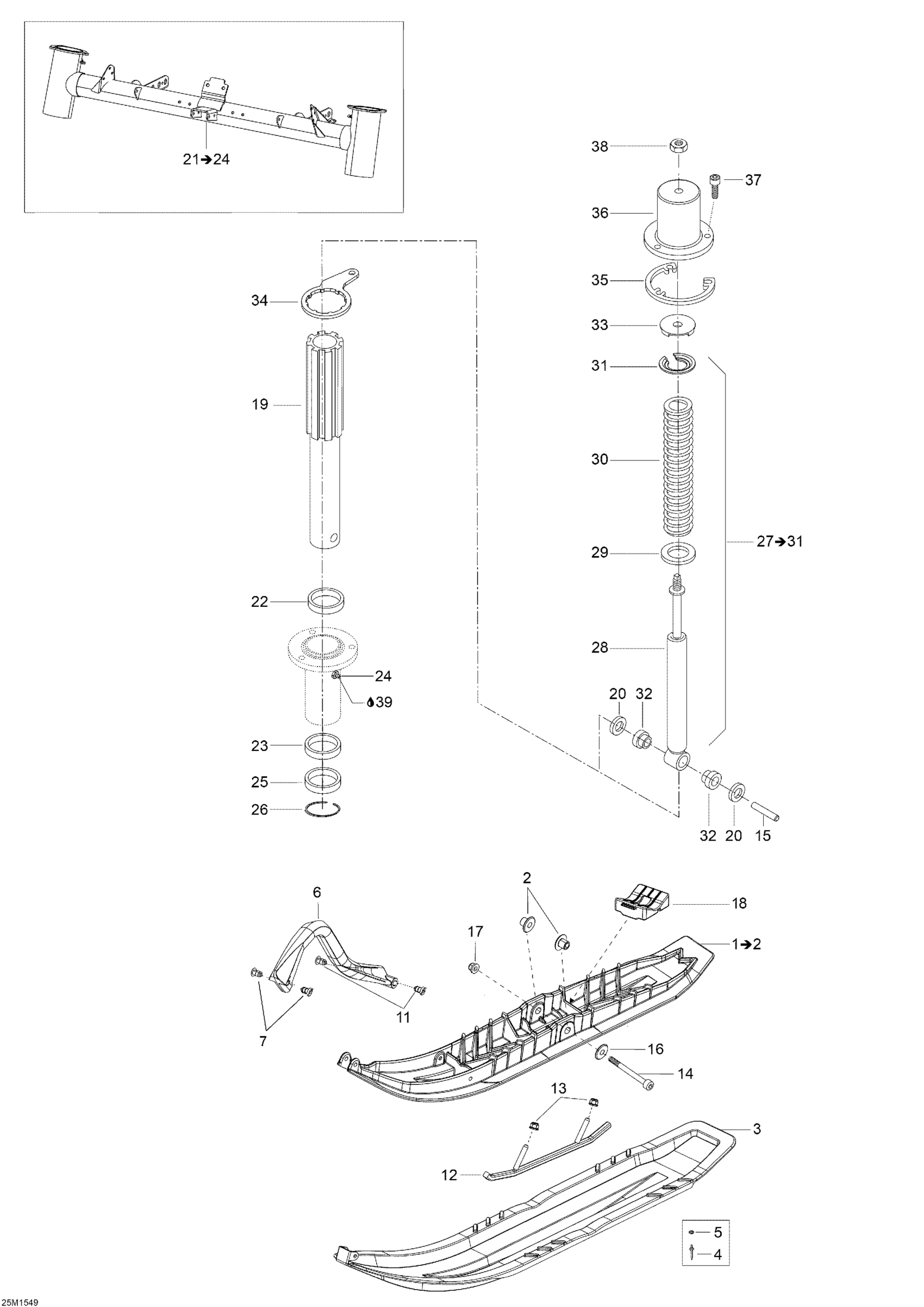

Ski-Doo Skandic SWT 600 E-TEC, 2015 Front Suspension _25M1549 Diagram

#

Description
Price

1

Black, Ski

505073227

$179.99

2

Ski Bushing

505071781

$16.18

3

DS Liner

505073448

$89.49

4

Pop Rivet

293150206

$2.11

5

Flat Washer 6 mm

234061410

$1.36

6

Black, Handle

505072976

$35.99

7

Retainer 17mm long

505071812

$5.95

11

Retainer 23mm Long

505072133

$6.78

12

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

15

Ski Axle

505073209

$16.49

16

Washer

732900049

$0.58

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Ski Stopper

505072594

$18.49

19

Ski Leg

505073200

$309.99

20

Spacer

505072579

$9.69

21

Module Ass'y | Includes 400 to 400d

505073967

$539.99

22

Upper Cushion

414803100

$10.49

23

Lower Cushion

414803200

$14.68

24

Grease Fitting

408200700

$3.49

25

Seal Oil

505072696

$45.99

26

Circlip

505072698

$14.99

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Shock

505073046

$164.49

29

Washer

505072578

$14.22

30

Black, Spring

505072745

$67.99

31

Spring Stopper

505072619

$12.99

32

Cushion

572034500

$12.58

33

Rubber Bumber

605354835

$16.49

34

Steering Arm

505073823

$94.49

35

Spacer

505073983

$25.99

36

Suspension Cover LH

505072874

$139.99

36

Suspension Cover RH

505072875

$139.99

37

Socket Head Screw M8 X 20

205082044

$1.15

38

Hex. Flange Elastic Nut M10

233201414

$1.58

39

Not Available As Spare Part - Friction Washer

Unavailable
