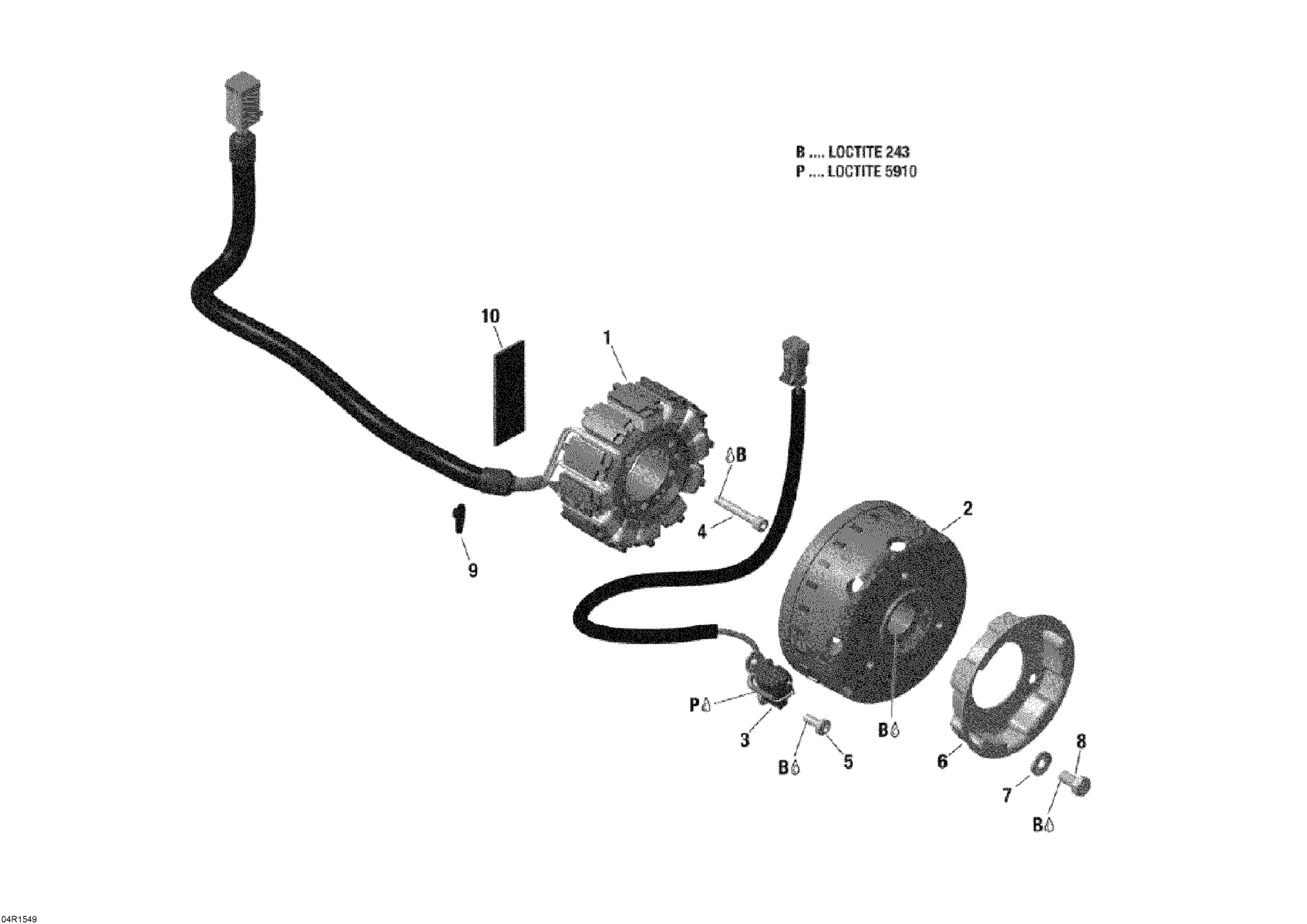

Ski-Doo Skandic SWT 600 E-TEC, 2015 Magneto _05R1549 Diagram

#

Description

Price

1

Stator Plate

420665435

$478.99

2

Flywheel

420665442

$547.99

3

Pick-Up Ass'y

410922969

$109.99

4

Allen Screw M6 X 40

420241956

$3.17

5

Torx Screw M6 X 16

420640324

$2.11

6

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

7

Flat Washer

420827405

$1.69

8

Hex. Screw M8 x 16

207181644

$1.15

9

Tie Rap

420866714

$1.90

10

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

B

Not Available As Spare Part - Friction Washer

Unavailable

P

Not Available As Spare Part - Friction Washer

Unavailable
