Description

Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$22.49

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Clamp

293650256

$5.49

9

Avex Rivet

390909200

$0.30

10

Tie-Rap 180 mm

414115200

$0.11

11

Grommet

280000674

$4.69

12

Fuel Pump Ass'y | Includes 13 to 15

513033643

$259.99

13

Fuel Filter

415129451

$25.99

14

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

15

Ring

513033180

$19.99

16

Gasket

513033334

$24.49

17

Clamp

513033628

$20.49

18

Hose Ass'y

513033589

$194.99

19

Locking Clip

513033135

$5.89

20

Tubing 16 Mm 1000Mm Long

219704408

$7.49

21

Hose Ass'y | Includes 22 to 23

513033594

$88.99

22

Locking Clip

513033135

$5.89

23

Bracket

513033542

$14.99

24

Bracket

513033593

$18.99

25

Hex. Flange Screw M5 X 10

207551044

$4.12

26

Hose Ass`Y

513033631

$309.99

27

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

28

Crimp Clamp, 15.3-706R

293650047

$3.29

29

FOAM - Call your local BRP dealership

513033640

Unavailable

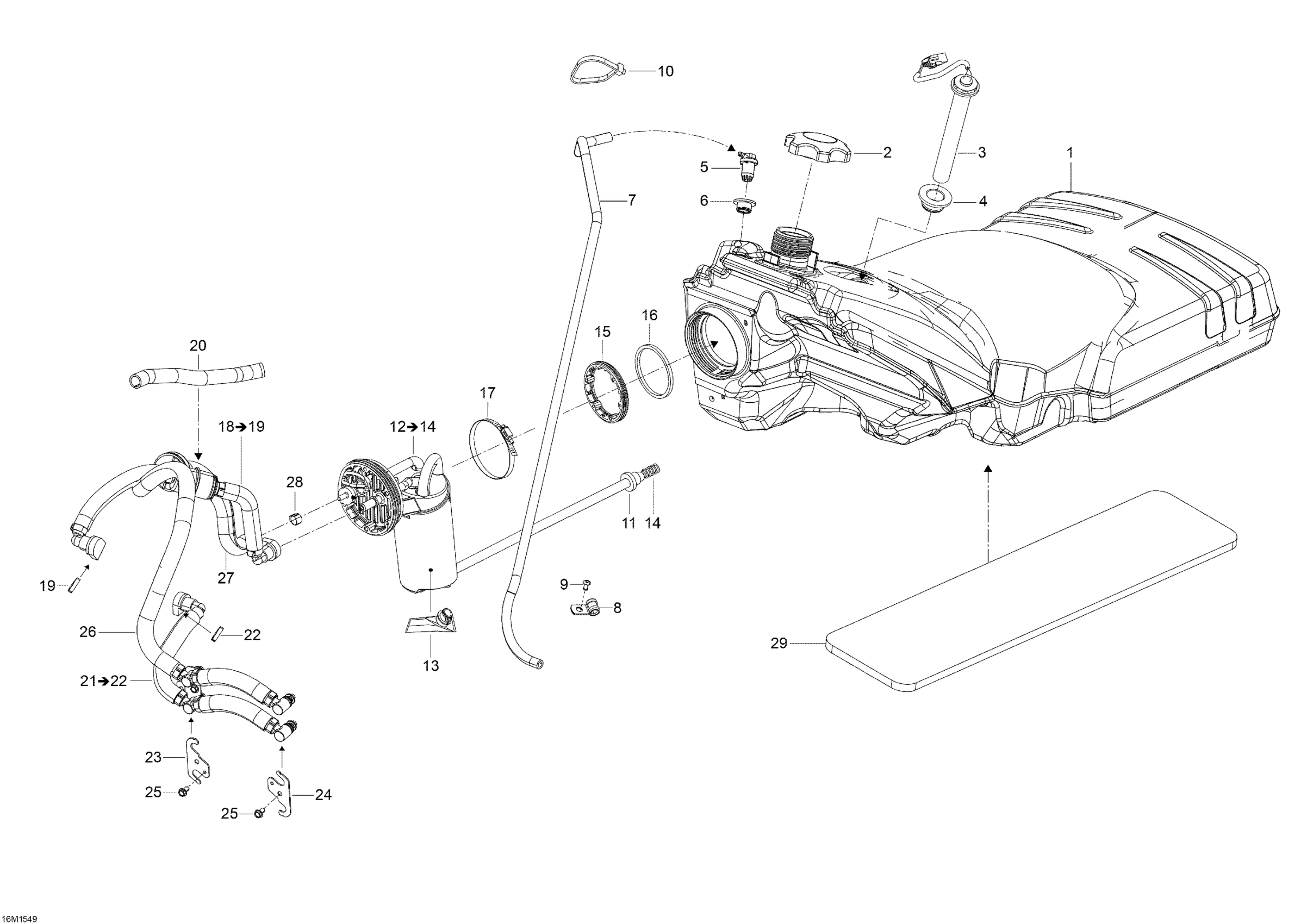

Ski-Doo Skandic SWT 600 E-TEC, 2015 Fuel System _16M1549 Diagram
