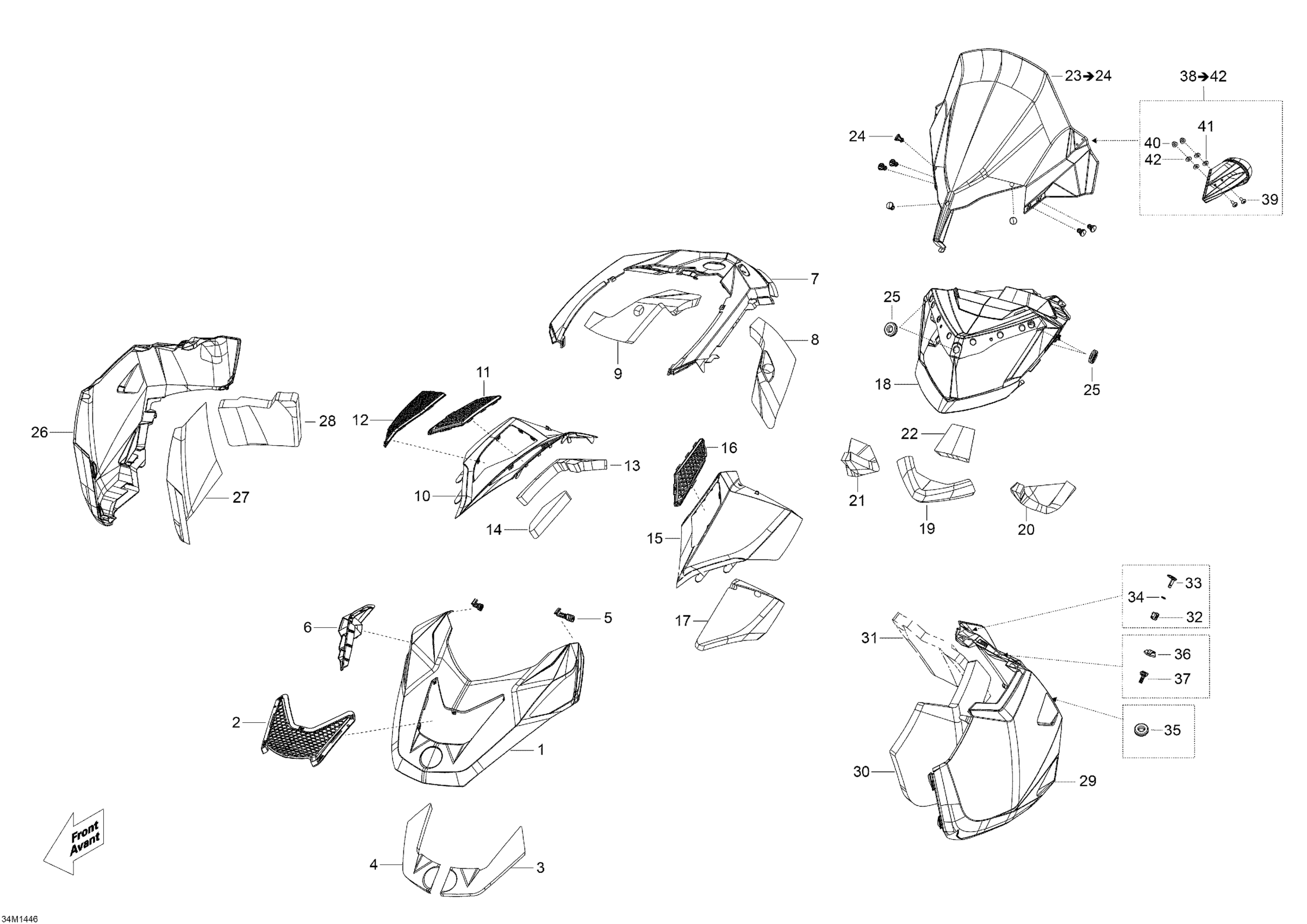

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2014 Hood Diagram

#

Description
Price

1

Yellow Hood | Yellow 2000

517305523

$249.99

2

Hood Grille

517304843

$82.28

3

Insulator

517304330

$34.58

4

Insulator

517304214

$29.97

5

Latch Pannel

517304289

$9.91

6

Scoop Grille

517306980

$34.58

7

Black, Console

517304820

$170.74

8

INSULATOR - Call your local BRP dealership

517304317

Unavailable

9

Insulator

517304318

$49.20

10

Yellow, RH Side Access Panel | Yellow 2000

517305525

$239.97

11

RH Access Panel Grille

517304015

$33.82

12

RH Lower Acces Grille

517304016

$29.20

13

Insulator

517304311

$63.05

14

Insulator

517304312

$29.97

15

Yellow, LH Side Access Panel | Yellow 2000

517305527

$239.97

16

LH Access Panel Grille

517303893

$33.82

17

Insulator

517304313

$63.05

18

Indicator Support

517304272

$169.20

19

Insulator

517304314

$63.82

20

Insulator

517304315

$29.97

21

Insulator

517304316

$29.97

22

Insulator

517304319

$29.97

23

Windshield Ass'y

860201000

$213.82

24

Button

517304744

$1.90

25

Grommet

517303756

$3.15

26

Black, RH Side Panel

517306977

$235.35

27

Foam Right

517304709

$54.58

28

RH Rear Foam

517304310

$62.28

29

Black, LH Side Panel

517306979

$235.35

30

Foam LH

517304707

$54.58

31

LH Rear Foam

517304309

$62.28

32

Handle Fastener Quarter-Turn

517304297

$14.62

33

Quarter-Turn Handle

517304296

$14.62

34

Locking Plate

517304538

$4.29

35

Grommet

517303756

$3.15

36

Black Latch Kit | Includes 390 to 400

860200239

$16.12

37

Latch-Panel

517306057

$19.47

38

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$71.51

39

Torx Truss Screw M6 X 16

250000721

$1.39

40

Domed Nut M6

232361493

$1.77

41

Rubber Washer 5 mm

250200024

$1.77

42

Washer

20117

$5.22
