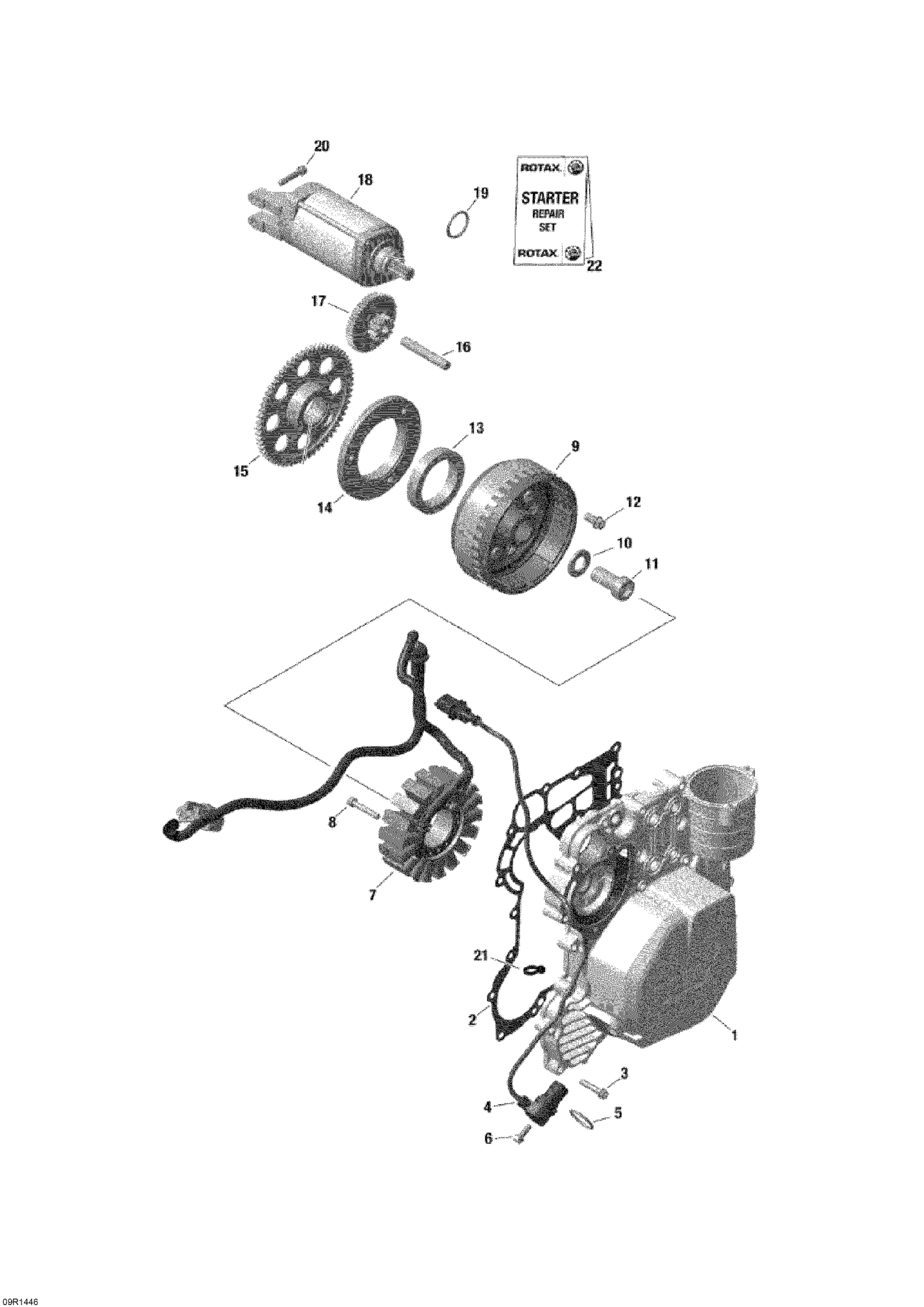

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2014 Magneto Diagram

#

Description
Price

1

Cover

420911052

$169.97

2

Gasket

420431640

$31.82

3

Torx Flange Screw M6 X 30

420440647

$1.97

4

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

5

O-Ring

420431580

$12.29

6

Torx Flange Screw M6 X 16

420440162

$3.11

7

Stator Plate 650W

420685635

$278.82

8

Allen Screw M6 X 40

420241956

$2.63

9

Magneto Flywheel 650W

420686190

$516.89

10

Shim

420627270

$3.38

11

Socket Head Screw M16 X 35

420241549

$7.05

12

Torx Flange Screw M8 X 16

420440854

$3.61

13

Sprag Clutch

420659113

$205.37

14

Sparg Clutch Housing

420659263

$122.82

15

Free Wheel Gear, 64 Teeth

420434238

$88.37

16

Needle Pin

420229475

$12.29

17

Starter Double Gear 11/49 T

420634741

$155.97

18

Electric Starter Ass'y

420892435

$297.99

19

O-Ring

420250145

$7.87

20

Torx Flange Screw M6 X 30

420440647

$1.97

21

Tie Rap

420866714

$1.56

22

Carbon Brush Set This part replaces 420881147.

420881148

$66.89
