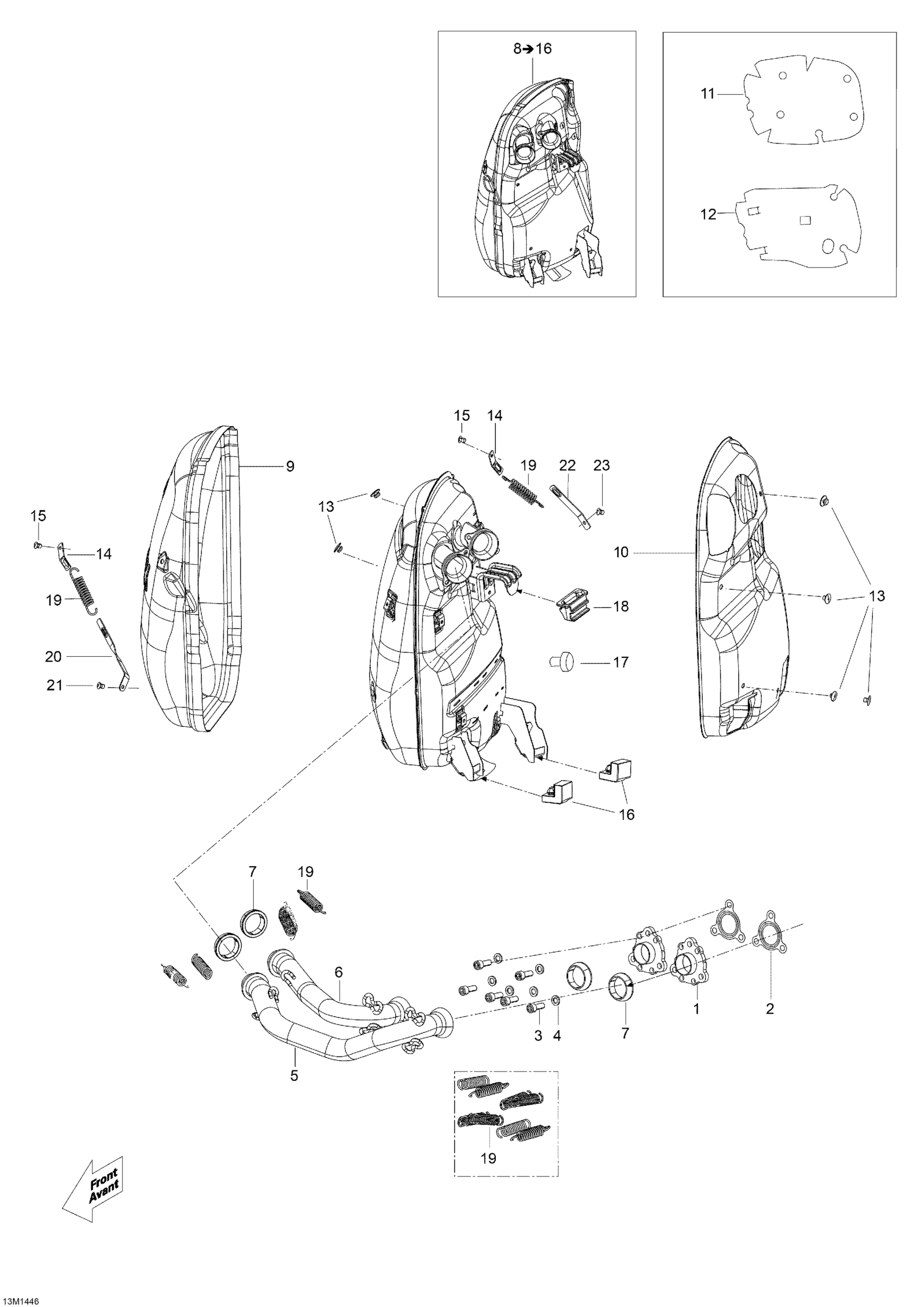

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2014 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

514054673

$69.20

2

Gasket

514055112

$5.86

3

Socket Head Screw M8 X 22

250000414

$2.06

4

Washer

250200111

$1.74

5

Welded Tube

514054733

$94.58

6

Welded Tube

514054734

Unavailable

7

Exhaust Gasket

514054807

$15.35

8

Muffler Ass'y | Includes 400 to 400h

514055370

$738.43

9

RH Heat Shield

514055325

$54.58

10

LH Heat Shield

514054645

$54.58

11

RH Insulating Wool

514054769

$11.63

12

LH Insulating Wool

514054770

$13.77

13

Pop Rivet 3/16”

390910000

$0.48

14

Spring Bracket

514054522

$6.28

15

Avex Rivet

390909200

$0.29

16

Lower Stopper

514054529

$17.66

17

Rubber Bumper

570044700

$10.55

18

Upper Stopper

514054737

$11.58

19

Spring

415107100

$6.20

20

Spring Bracket

514055030

$10.55

21

Avex Rivet

390909100

$0.29

22

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

23

Avex Rivet

390909200

$0.29
