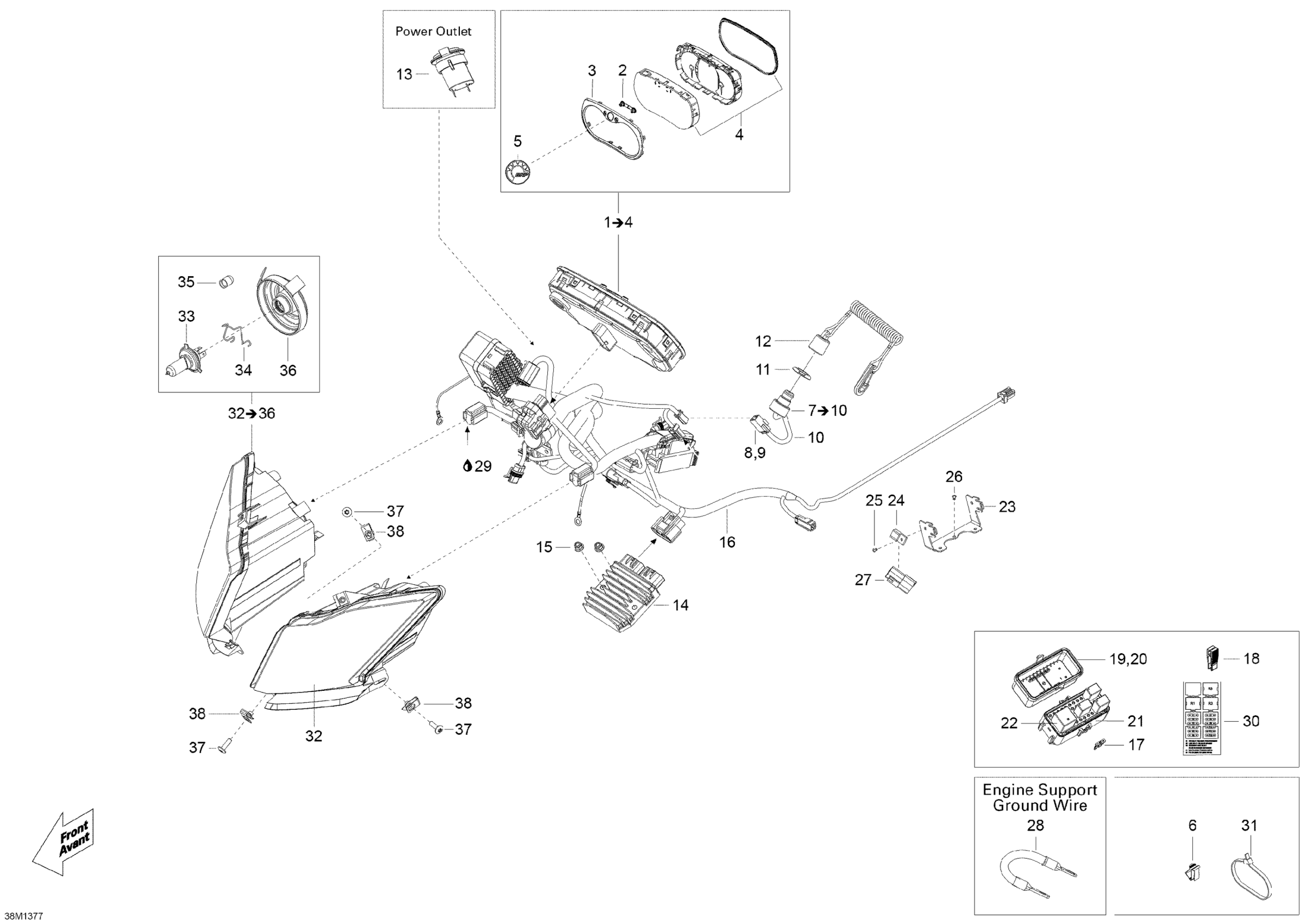

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Electrical System Diagram

#

Description
Price

1

Indicator

515177911

$549.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Clip

414227300

$1.67

7

DESS Switch

515177249

$114.99

8

Male Terminal

515175232

$1.58

9

Male Housing, 3 Circuits

515175494

$16.18

10

Tubing 12 mm

409902000

Unavailable

11

Safety Nut (DESS Switch)

278002963

$3.28

12

DESS

515178284

$84.99

13

DC Outlet

710001248

$37.99

14

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Main Harness Ass'y

515177075

Unavailable

17

Little Fuse, 5 Amperes

710000742

$8.79

17

Little Fuse, 7.5 Amperes

710000743

$8.49

17

Little Fuse, 10 Amperes

710000744

$8.79

17

Little Fuse, 15 Ampere

710000745

$8.49

17

Little Fuse, 20 Amperes

710000746

$8.49

17

Little Fuse, 30 Amperes

710000747

$8.49

18

Fuse Puller

710000781

$8.09

19

Fuse Cover

710001026

$21.99

20

Foam

278002172

$5.89

21

Fuse Box Base Ass´y

415129856

$50.99

22

Relay, 50 AMP

515176775

$15.79

22

Relay, 30 AMP

515176774

$21.99

23

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

24

Clip

270000141

$11.49

25

Avdel Rivet 3/16"

293150037

$0.56

26

Pop Rivet 3/16"

390402200

$0.35

27

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

28

Ground Wire

515176883

$28.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Decal, Fusebox

516004376

Unavailable

31

Tie-Rap 180 mm

414115200

$0.11

31

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Tie Wrap 142 mm

293750002

$1.25

32

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

32

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

33

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Cap

515176498

$12.99

36

Rubber Cap Protector

219800280

$19.49

37

Torx Screw M6 X 20

250000722

$1.68

38

Panel Nut M6 X 1.0

250100198

$2.11
