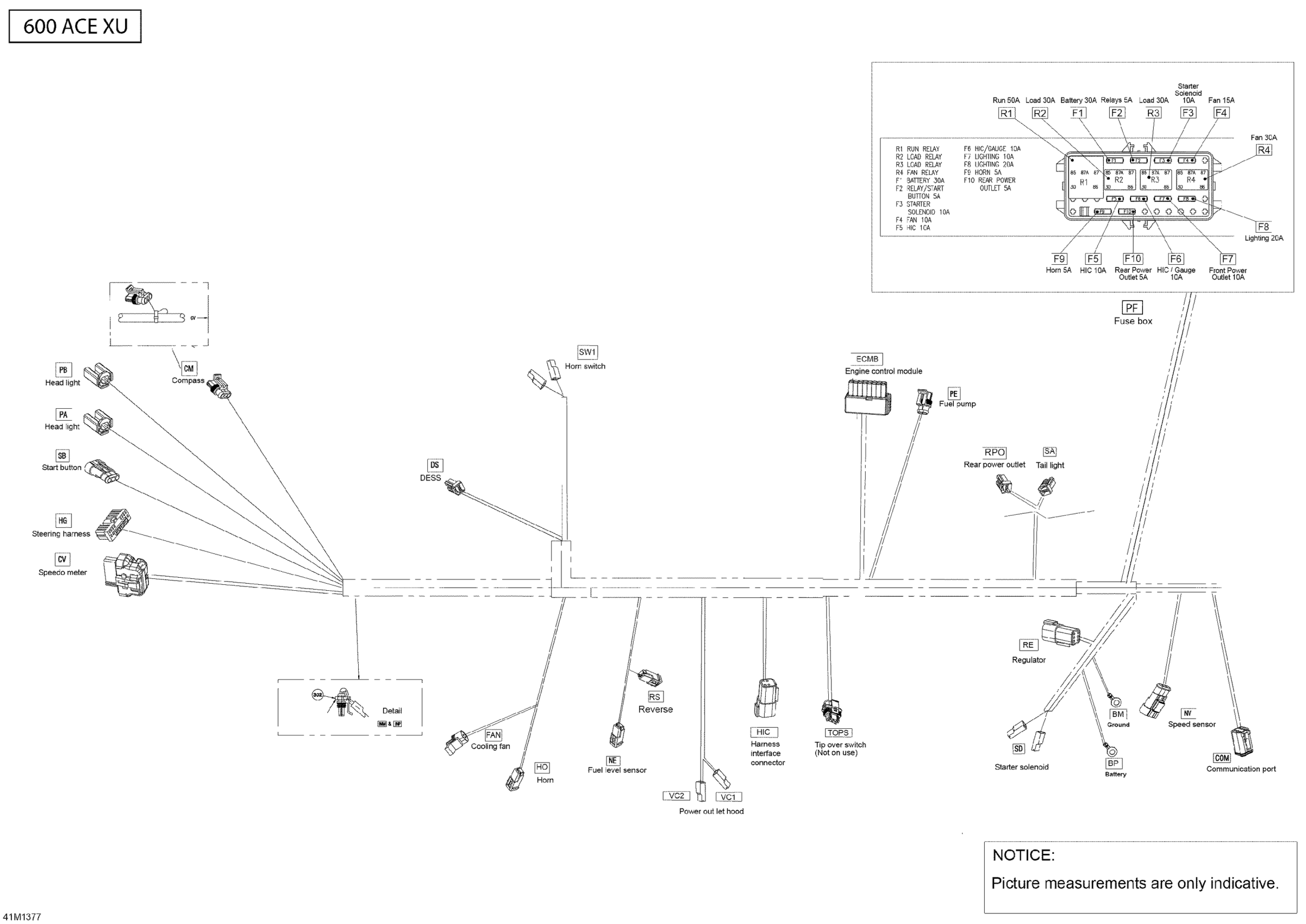

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 10- Electrical Harness Diagram

#

Description
Price

1

Main Harness Ass'y

515177075

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

966

Not Available As Spare Part - Friction Washer

Unavailable

AT

Wire Seal

710001163

$7.69

AT

Female Terminal

710001164

$8.89

AT

Female Terminal Housing

515176890

$12.99

BM

Open Barrel

278000992

$2.21

BP

Open Barrel

278000992

$2.21

CD

Female Terminal

515175567

$7.69

CD

Female Terminal Housing, 2 Circuits

278001673

$23.49

CD

Female Lock, 2 Circuits

278001671

$3.58

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Tie Wrap 142 mm

293750002

$1.25

CM

Wire Seal

515176621

$7.49

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

CP

Male Terminal

278000631

$4.39

CP

Male Lock, 2 Circuits

409207500

$3.19

CP

Male Terminal Housing, 2 Circuits

515175665

$9.29

CV

Plug

515175812

$2.19

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Housing

710000399

$16.49

CV

Female Terminal

710001131

$8.89

D1

Diode

409012700

$11.12

DM

Female Terminal

515175231

$4.39

DM

Female Housing, 2 Circuits

515175658

$16.18

DS

Female Terminal

515175231

$4.39

DS

Female Housing, 3 Circuits

515175495

$16.18

DT

Female Terminal

278000998

$4.39

DT

Male Housing, 2 Circuits

278001005

$19.49

DT

Seal

415128501

$1.89

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

EI

Male Terminal

278000631

$4.39

EI

Male Lock, 2 Circuits

409207500

$3.19

EI

Male Terminal Housing, 2 Circuits

515175665

$9.29

ER

Female Terminal

278000998

$4.39

ER

Female Terminal Housing, 2 Circuits

415128500

$7.62

ER

Seal

415128501

$1.89

ERF

Housing

710000568

$11.12

ERF

Male Terminal

515176164

$7.16

ERF

Wire Seal

515176621

$7.49

F

Little Fuse, 5 Amperes

710000742

$8.79

F

Little Fuse, 7.5 Amperes

710000743

$8.49

F

Little Fuse, 10 Amperes

710000744

$8.79

F

Little Fuse, 15 Ampere

710000745

$8.49

F

Little Fuse, 20 Amperes

710000746

$8.49

F

Little Fuse, 30 Amperes

710000747

$8.49

FA

Female Terminal

409004200

$4.55

FA

Fuse Holder

409004000

$8.09

FA

Not Available As Spare Part - Friction Washer

Unavailable

FA

Clip

710000992

$4.29

FAN

Housing

710000568

$11.12

FAN

Male Terminal

515176164

$7.16

FAN

Wire Seal

515176621

$7.49

FB

Female Terminal

409011600

$5.39

FB

Female Terminal

409004200

$4.55

FB

Fuse Holder

409004000

$8.09

FB

Fuse, 5 Amperes | CE

278000344

$3.28

FB

Not Available As Spare Part - Friction Washer

Unavailable

FB

Clip

710000992

$4.29

HIC

Male Connector, 4 Circuits | CE

278000739

$19.49

HIC

Male Lock, 4 Circuits | CE

278000738

$3.09

HIC

Sealing Cap

293000052

$3.19

HIC

Female Terminal

278001665

$4.55

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HO

Female Terminal

515175231

$4.39

HO

Female Housing, 2 Circuits

515175658

$16.18

IGM

Female Terminal

278001014

$3.28

IGM

Female Housing, 3 Circuits

409209600

$35.99

IGM

Wire Seal

278001013

$3.28

IGP

Female Terminal

278001014

$3.28

IGP

Female Housing, 3 Circuits

409209600

$35.99

IGP

Wire Seal

278001013

$3.28

INM

Female Terminal

278001014

$3.28

INM

Female Housing, 2 Circuits

409209500

$15.27

INM

Wire Seal

278001013

$3.28

INM

Tie Wrap 94 mm | 4X4

293750001

$1.03

INM

Not Available As Spare Part - Friction Washer

Unavailable

INP

Female Terminal

278001014

$3.28

INP

Female Housing, 2 Circuits

409209500

$15.27

INP

Wire Seal

278001013

$3.28

INP

Tie Wrap 94 mm | 4X4

293750001

$1.03

INP

Not Available As Spare Part - Friction Washer

Unavailable

J1A

Female Terminal Housing, 34 Circuits

515176342

$21.99

J1A

Plug

515176345

$21.99

J1A

Female Terminal

515176348

$6.99

J1A

Female Terminal

515176541

$4.55

J1B

Female Terminal Housing, 26 Circuits

515176341

$29.49

J1B

Plug

515176345

$21.99

J1B

Female Terminal

515176348

$6.99

J1B

Female Terminal

515176541

$4.55

J2

Female Terminal

278000998

$4.39

J2

Female Terminal Housing, 16 Circuits

515176340

$15.80

J2

Seal

415128501

$1.89

MO

Male Terminal

278000631

$4.39

MO

Female Lock, 6 Circuits

278000735

$3.19

MO

Male Terminal Housing, 6 Circuits

515175668

$16.49

NE

Male Terminal

515175232

$1.58

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NH

Male Connector, 2 Circuits

278001113

$16.86

NH

Female Terminal

710001119

$5.39

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PE

Female Terminal

278001014

$3.28

PE

Female Housing, 2 Circuits

409209500

$15.27

PE

Wire Seal

278001013

$3.28

PF

Fuse Puller

710000781

$8.09

PF

Fuse Cover

710001026

$21.99

PF

Foam

278002172

$5.89

PF

Fuse Box Base Ass´y

415129856

$50.99

PH

Female Terminal

278001114

$3.19

PH

Male Connector, 2 Circuits

278001113

$16.86

R

Relay, 50 AMP

515176775

$15.79

R

Relay, 30 AMP

515176774

$21.99

R2

Female Housing, 5 Circuits

409209900

$9.59

R2

Female Terminal

561503100

$2.41

R2

Female Terminal

561503100

$2.41

R2

Tie Wrap 142 mm

293750002

$1.25

RE

Female Housing, 3 Circuits

710000879

$25.99

RE

Cap

710000882

$11.49

RE

Seal

710000881

$17.99

RE

Female Terminal

710000877

$9.12

RPO

Male Housing, 3 Circuits

515175494

$16.18

RPO

Male Terminal

515175232

$1.58

RS

Female Housing, 3 Circuits

409209600

$35.99

RS

Wire Seal

515176621

$7.49

RS

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

SA

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SB

Housing

710000568

$11.12

SB

Male Terminal

515176164

$7.16

SB

Wire Seal

515176621

$7.49

SD

Female Terminal

409010100

$5.61

SD

Female Terminal Housing, 1 Circuit

409010400

$7.62

SD

Tie Wrap 94 mm | 4X4

293750001

$1.03

SW1

Female Terminal

409010100

$5.61

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

TP

Female Terminal

278000998

$4.39

TP

Male Housing, 3 Circuits

278000997

$19.49

TP

Seal

415128501

$1.89

TS

Female Terminal

278000998

$4.39

TS

Male Housing, 2 Circuits

278001005

$19.49

TS

Seal

415128501

$1.89

VC

Female Terminal

515175231

$4.39

VC

Female Housing, 2 Circuits

515175658

$16.18

VC1

Female Terminal

409010100

$5.61

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.62
