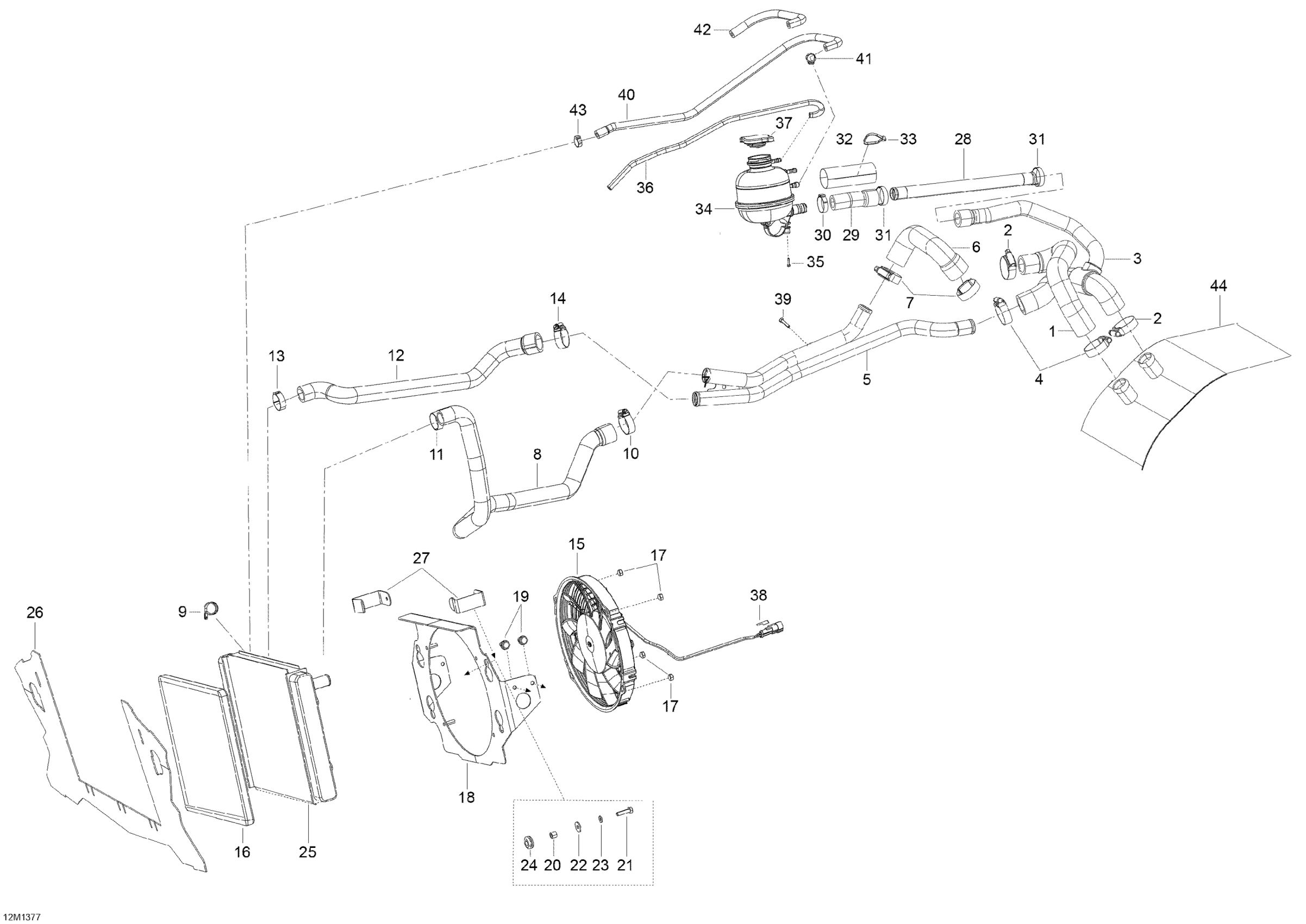

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 01- Cooling System Diagram

#

Description
Price

1

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000762

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$12.72

3

HOSE TUNNEL RAD.->ENGINE-FILLING - Call your local BRP dealership

509000806

Unavailable

4

Aba Gear Clamp, 26-38 MM

509000443

$12.72

5

Water Pipe

509000800

$110.99

6

Engine Outlet Hose

509000932

$20.99

7

Aba Gear Clamp, 26-38 MM

509000443

$12.72

8

Air Radiator Hose

509001000

$98.49

9

Clamp With Rubber D=30

605627008

$20.49

10

Aba Gear Clamp, 26-38 MM

509000443

$12.72

11

Crimp Clamp

293650099

$4.29

12

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000707

Unavailable

13

Crimp Clamp

293650099

$4.29

14

Aba Gear Clamp, 26-38 MM

509000443

$12.72

15

Cooling Fan

509000838

$217.49

16

Insulation

509000718

$61.49

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Radiator support | Includes 3340 to 3340a

509000791

$94.49

19

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

20

Bushing

605453745

$13.16

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

22

Flat Washer 6 mm

234062410

$0.77

23

Lock Washer M6, Black

234161471

$0.53

24

Grommet

709000582

$4.69

25

Radiator

509000787

$222.49

26

AIR DEFLECTOR LTS - Call your local BRP dealership

509000784

Unavailable

27

Deflector Clip

509000703

$41.49

28

PIPE - Call your local BRP dealership

509000644

Unavailable

29

HOSE - Call your local BRP dealership

509000698

Unavailable

30

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

31

Crimp Clamp

293650099

$4.29

32

Protector Tube

707001349

$20.99

33

Tie-Rap 180 mm

414115200

$0.11

34

Coolant Tank

509000368

$92.99

35

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

36

Hose 6 Mm 15000Mm Long

219704360

$132.49

37

Radiator Pressure Cap

509000180

$20.49

38

Clip

710000992

$4.29

39

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

40

BREATHER HOSE - Call your local BRP dealership

509000750

Unavailable

41

Crimp Clamp, 15.3-706R

293650047

$3.29

42

Was 409901800 Tubing (13 mm)

219704400

$14.49

43

Crimp Clamp, 15.3-706R

293650047

$3.29

44

Radiator Tunnel

509000645

$819.99
