Description

Price

1

Snow Guard | Package SWT

520001430

$106.99

2

Plate

520001022

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Horn

549011291

$35.99

14

White Reflector | Model- EUROPE

M21118

$0.01

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Amber, Lateral Reflector

705002423

$15.49

18

Deep Black, Reflector Support

520000871

$5.79

19

Tie Rap 2.4x200 | Model- EUROPE

M27120

Unavailable

20

Tool Kit | Includes 20 To 28

529000065

$55.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Was 412500100 Rope-Starter

219704403

$158.99

25

Starter Grip

529000060

$14.15

26

Spacing Tool

520001142

$10.52

27

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

28

Wrench

M34017

Unavailable

29

Tool Kit Rack

520000894

$14.99

30

Latch

520000528

$7.69

31

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

32

Not Available As Spare Part - Friction Washer

Unavailable

33

LOCKING PLATE - Call your local BRP dealership | Model- EUROPE

520001041

Unavailable

34

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

35

Pin

41012

$6.39

36

Hair pin

41029

$4.44

37

RETAINER CABLE - Call your local BRP dealership | Model- EUROPE

M5446839

Unavailable

38

Avex Rivet

390909100

$0.30

39

Plate

520000727

$36.99

40

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

41

Bolt Carriage M8 X 40

207784044

$1.15

42

Hex. Flange Elastic Nut M8

233281414

$1.47

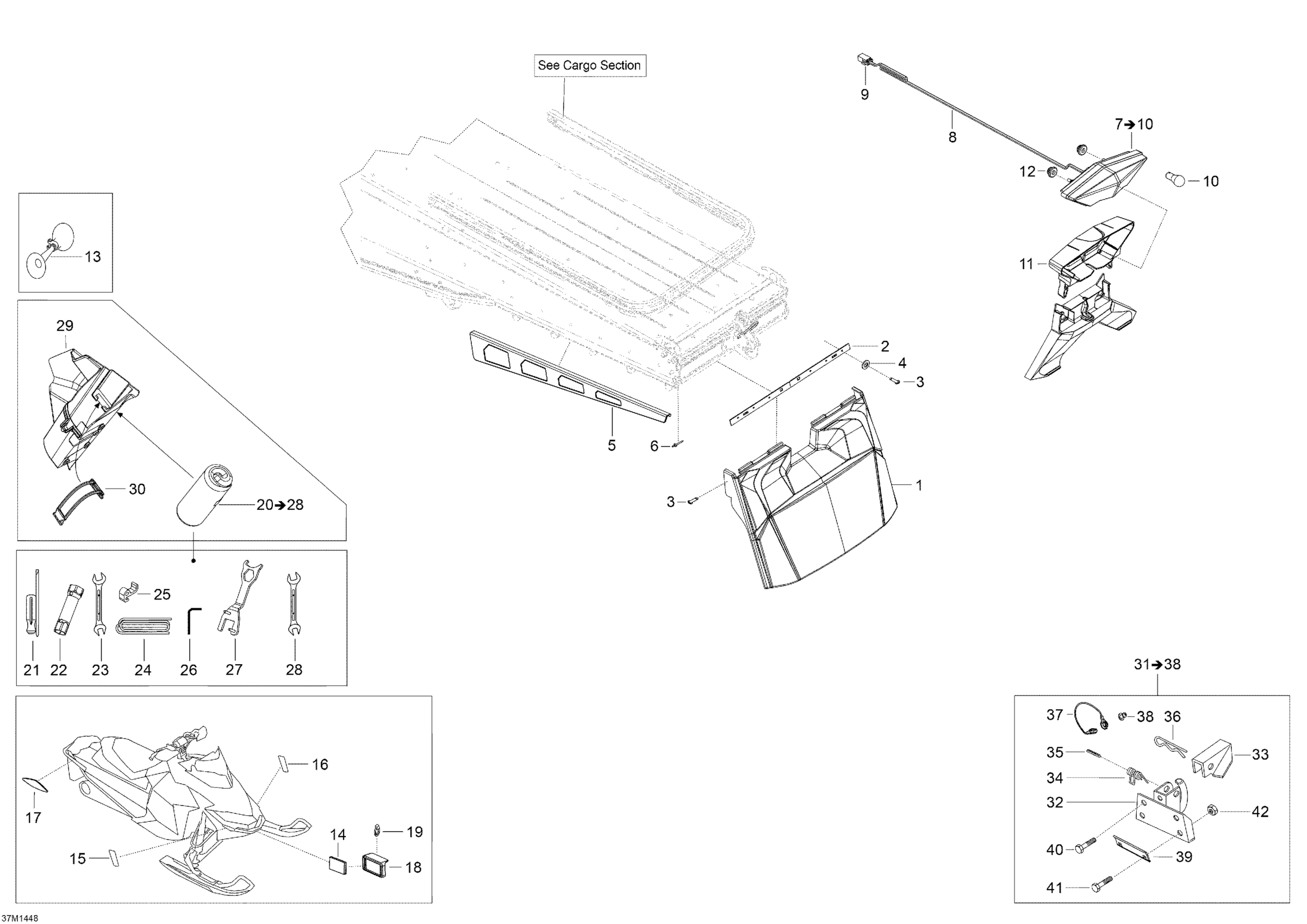

Ski-Doo Skandic SWT 550F XU, 2014 09- Utilities Diagram
