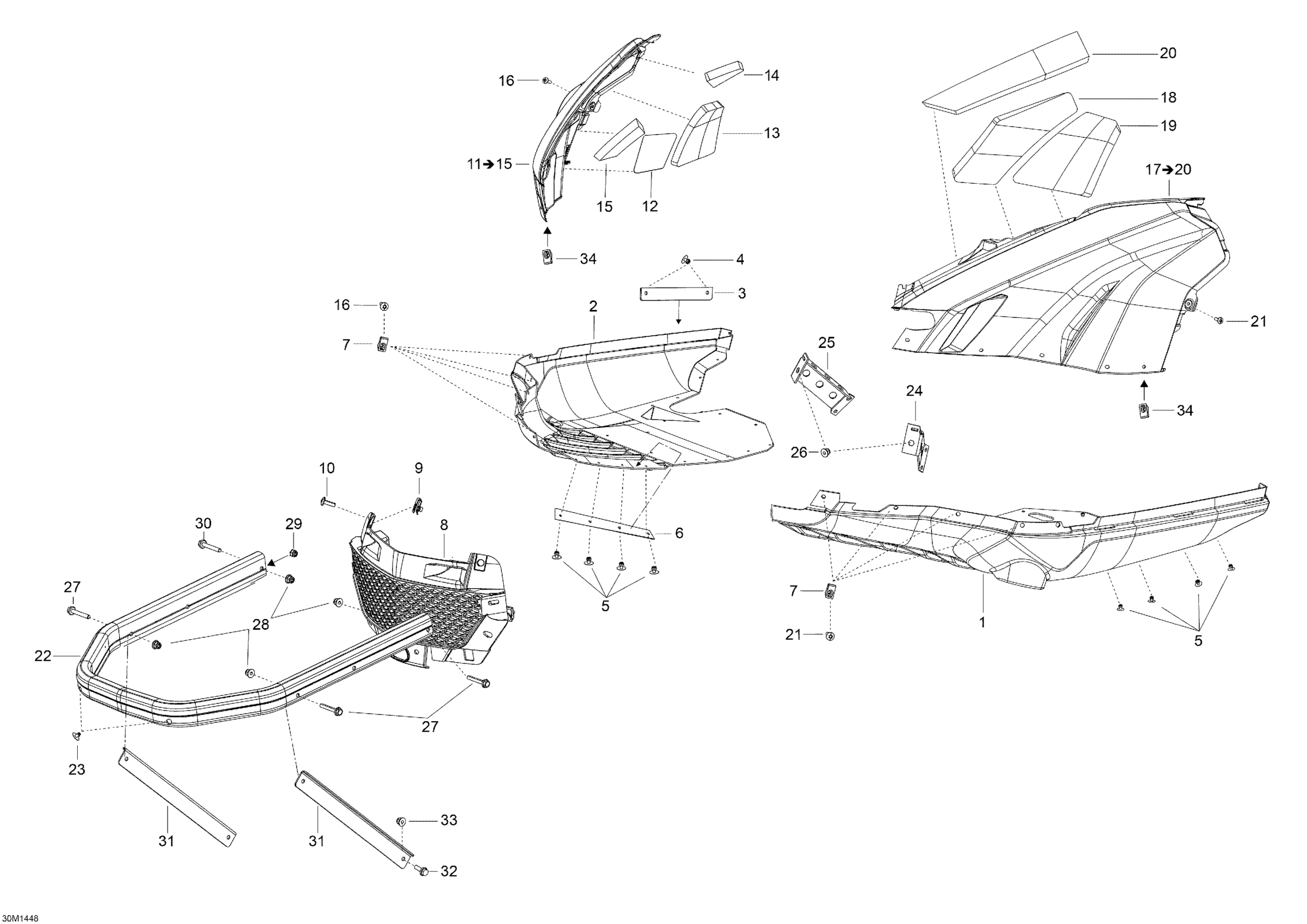

Ski-Doo Skandic SWT 550F XU, 2014 09- Bottom Pan Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007436

$194.99

2

BLACK BOTTOM-PAN LOWER RH. - Call your local BRP dealership

502006917

Unavailable

3

Heat Isolation Plate

502007255

$5.79

4

Rivet

36005

$2.11

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

SUPPORT PLATE - Call your local BRP dealership

502007226

Unavailable

7

Panel Nut M6 X 1.0

250100198

$2.11

8

Front Grille

502007140

$89.99

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Torx Screw M6 X 20

250000722

$1.68

11

Deep Black, RH Bottom Pan

502008015

$144.99

12

Insulator

502007133

$29.99

13

Insulator

502007132

$29.99

14

Insulator | Model LE, SE

502007008

$19.49

15

Insulator | Except Package EXTREME

502007009

$19.49

16

Torx Screw M6 X 20

250000722

$1.68

17

Deep Black, LH Bottom Pan

502008017

$139.99

18

Insulator

502007088

$67.99

19

Insulator

502007131

$29.99

20

Insulator

502007185

$28.99

21

Torx Screw M6 X 20

250000722

$1.68

22

Bumper

502007115

$134.49

23

Full Moon Dart 8 mm

293730041

$2.21

24

BOTTOM PAN FASTENER LH - Call your local BRP dealership This part replaces 502007137.

619690082

Unavailable

25

BOTTOM PAN FASTENER RH - Call your local BRP dealership This part replaces 502007138.

619690081

Unavailable

26

Clinch Nut M6 Hexsert

605636003

$4.23

27

Hex. Flange Screw M6 X 40

207664044

$2.22

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Sleeve

518328217

$18.49

30

Hex. Flange Screw M6 X 50

207665044

$4.12

31

Bumper Support

502006927

$31.99

32

Hex. Flange Screw M6 X 20

207662044

$2.00

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Panel Nut M6 X 1.0

250100198

$2.11
