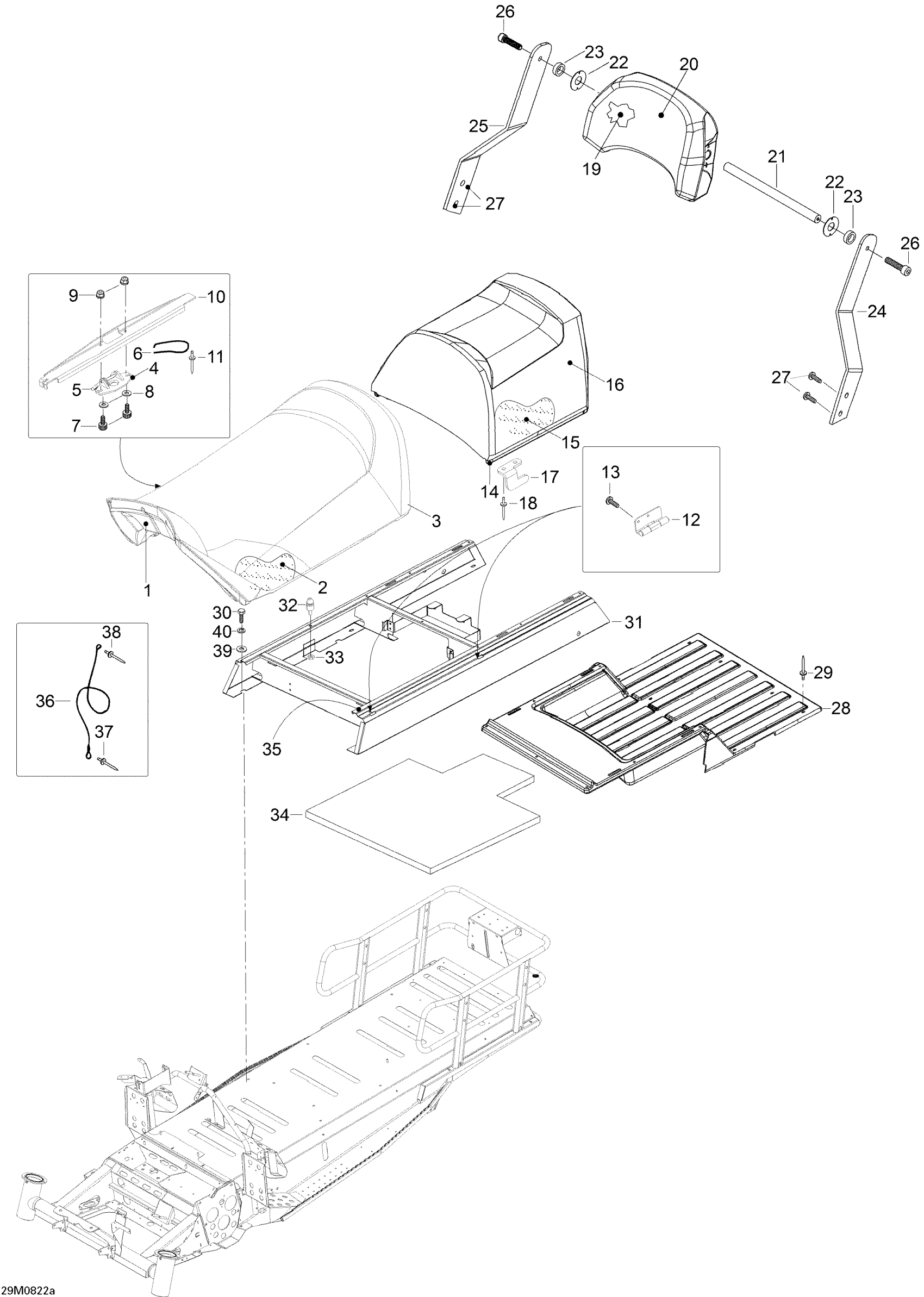

Ski-Doo Skandic SWT 550F, 2008 Seat SWT 550F Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Seat Foam

605255689

$459.99

3

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

4

Latch Ass'y

269700109

$23.10

5

Latch Ass'y

269700109

$23.10

6

Latch Spring

269700017

$8.34

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.19

9

Elastic Stop Nut M6

232561414

$1.78

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Rivet

M36088

Unavailable

12

Hinge

605351798

$38.78

13

Screw 4,2 X 16

M40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

REAR SEAT FOAM - Call your local BRP dealership

605255691

Unavailable

16

SEAT COVER, SUV - Call your local BRP dealership

605255218

$234.99

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$0.99

19

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

20

BACKREST COVER - Call your local BRP dealership

605355498

Unavailable

21

BACKREST AXLE - Call your local BRP dealership

605355357

Unavailable

22

WASHER - Call your local BRP dealership

605355358

Unavailable

23

Rubber Shim

510004378

$8.36

24

LH ARM - Call your local BRP dealership

605355503

Unavailable

25

RH ARM - Call your local BRP dealership

605355504

Unavailable

26

SCREW M10X20 - Call your local BRP dealership

605640010

Unavailable

27

Screw

M40316

Unavailable

28

TUNNEL COVER - Call your local BRP dealership

605154593

Unavailable

29

Black, Rivet

M36036

$1.60

30

Hex. Screw M6 X 16

207161644

$0.70

31

SEAT BASE - Call your local BRP dealership

605254706

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

33

Elastic Stop Nut M6

232561414

$1.78

34

FOAM - Call your local BRP dealership

605352460

Unavailable

35

Sealing Strip

M28413

Unavailable

36

Seat Retainer Cable

293750070

$9.93

37

Black Rivet

36037

$1.43

38

Rivet

M36489

Unavailable

39

Flat Washer 6 mm

234062410

$0.73

40

Lock Washer M6, Black

234161471

$0.51
