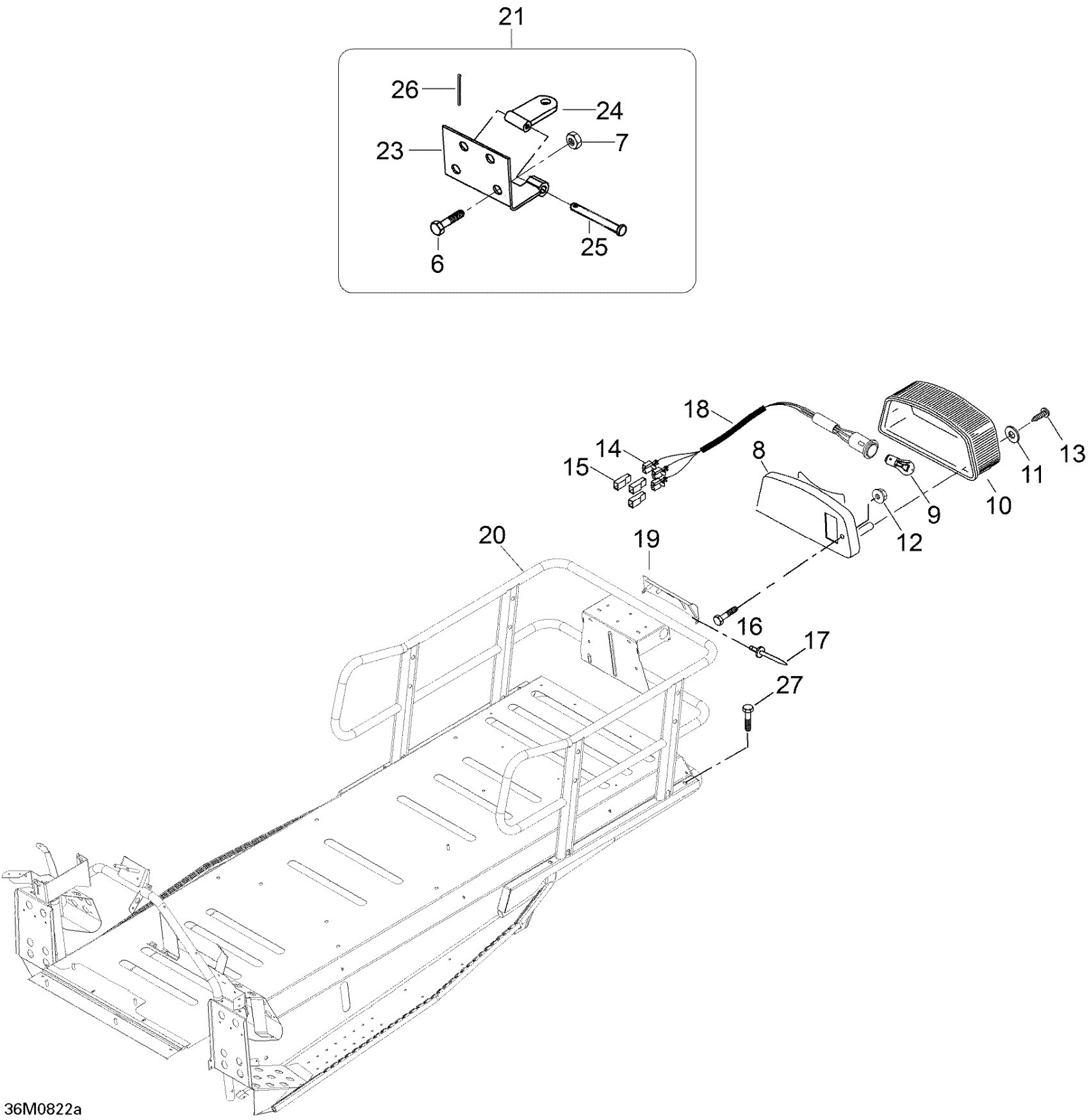

Ski-Doo Skandic SWT 550F, 2008 Luggage Rack SWT 550F Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Hex. Screw M8 X 50

207085044

$1.43

7

Hex. Elastic Stop Nut M8

232581414

$0.54

8

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

9

Bulb

520000758

$8.60

10

Lens

414513700

$26.09

11

Washer - Call your local BRP dealership

414516400

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

14

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

15

Female Terminal Housing, 1 Circuit

409010400

$7.25

16

Hex. Screw M6 X 30

207063044

$1.12

17

Not Available As Spare Parts

XXX

Unavailable

18

Taillight Harness

605354685

Unavailable

19

SPACER - Call your local BRP dealership

605351510

Unavailable

20

Welded Rack

605254575

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$75.34

24

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

25

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

26

Cotter Pin

41031

$6.07

27

Screw

M40316

Unavailable
