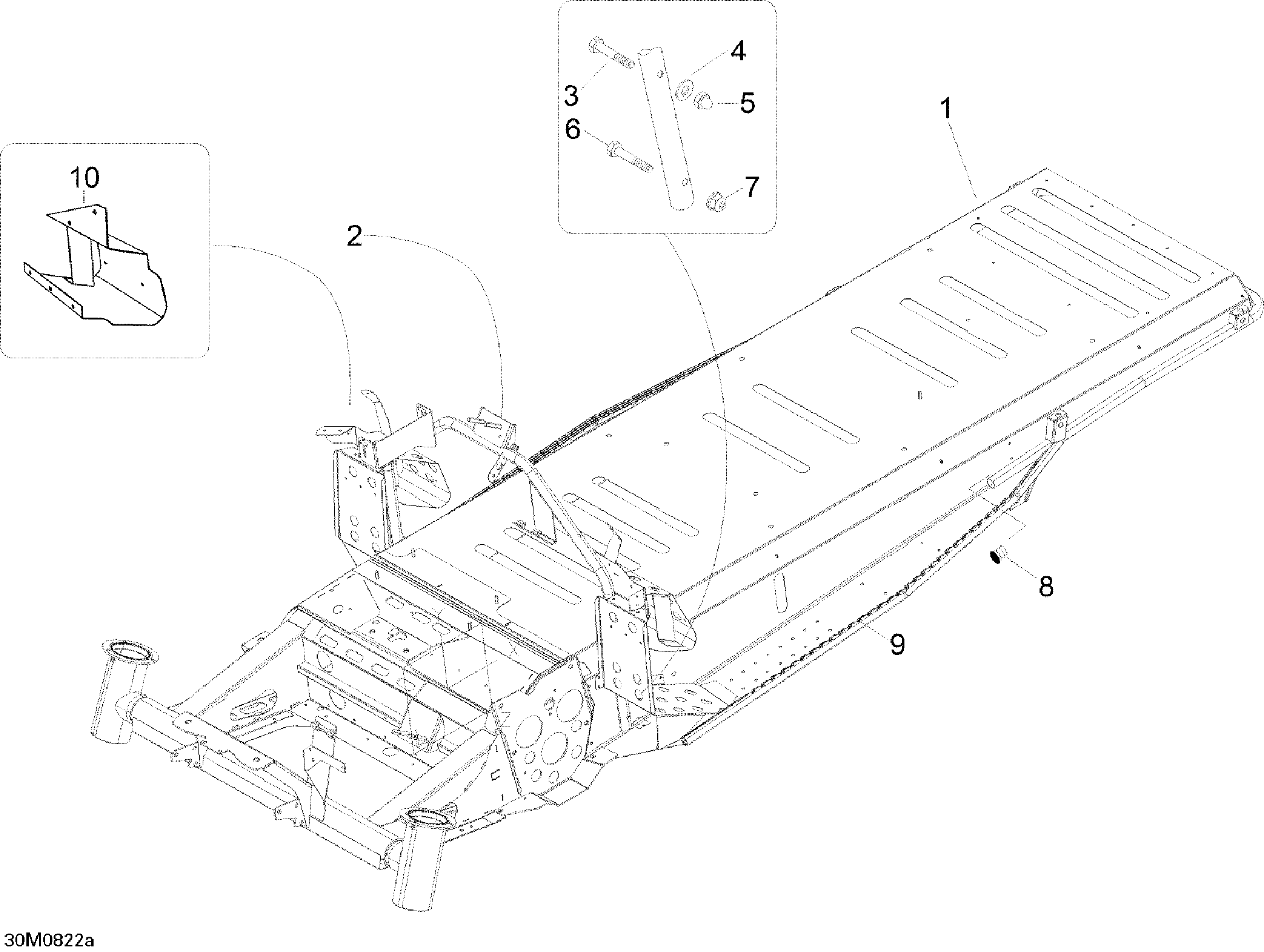

Ski-Doo Skandic SWT 550F, 2008 Frame SWT 550F Diagram

#

Description

Price

1

Frame Ass'y

605155133

Unavailable

2

WELDED STEERING UPPORT - Call your local BRP dealership

605155220

Unavailable

3

Hex. Screw

M40003

Unavailable

4

Flat Washer 6 mm

234061410

$1.36

5

Hex. Nut M6

232061414

$0.53

6

Hex. Screw M6 X 40

207064044

$1.48

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

PLUG - Call your local BRP dealership

M28136

Unavailable

9

RH REINFORCEMENT - Call your local BRP dealership

605253506

Unavailable

9

LH REINFORCEMENT - Call your local BRP dealership

605253507

Unavailable

10

RH TOE REST - Call your local BRP dealership

605253504

Unavailable

10

LH TOE REST - Call your local BRP dealership

605253505

Unavailable
